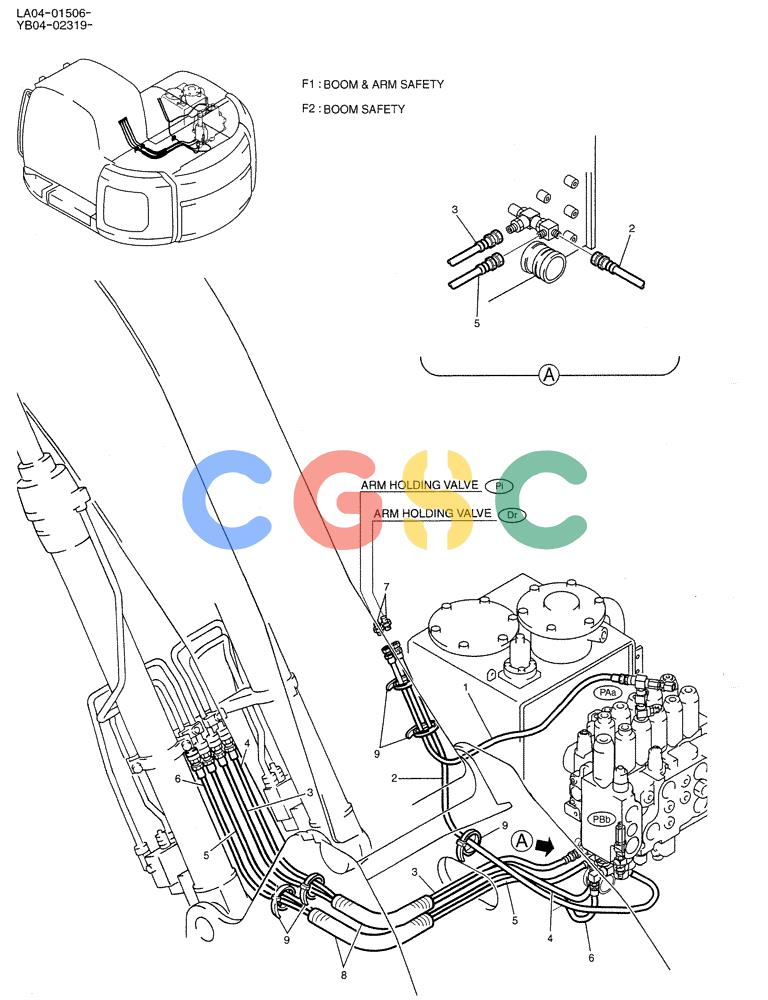

纽荷兰零件查询(E200SRLC) - CRAWLER EXCAVATOR BTW LA04-01506 - LA04-01625 (05-001) - CONTROL LINES, REMOTE (BOOM SAFETY, BOOM & ARM SAFETY) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
602 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YB64H00004F1 | [1] | CONTROL LINES, VALVE (BOOM & ARM SAFETY) | |
| . . | YB64H00004F2 | [1] | CONTROL LINES, VALVE (BOOM SAFETY) | |
| 1. | 2420R537D250 | [1] | HOSE ASSY.,9.60mm ID x 2500mm L | KOBFOR F1 ONLY |
| 2. | 2444R1119D250 | [1] | HOSE | KOBFOR F1 ONLY |
| 3. | 2444R1119D190 | [1] | HOSE | KOB |
| 4. | 2420R537D210 | [1] | HOSE,9.53mm ID x 2100mm L | KOB |
| 5. | 2444R1119D210 | [1] | FLEXIBLE HOSE | HIT |
| 6. | 2420R537D230 | [1] | FLEXIBLE HOSE,9.60mm ID x 2300mm L | KOB |
| 7. | ZH22F06000 | [2] | CONNECTION | KOBFOR F1 ONLY |
| 8. | 2414Z199D60 | [2] | GUARD | KOBHOSE |
| 9. | PY01P01043D6 | [16] | CABLE TIE,4.80mm W x 383mm L | KOBFOR F1 ONLY |
