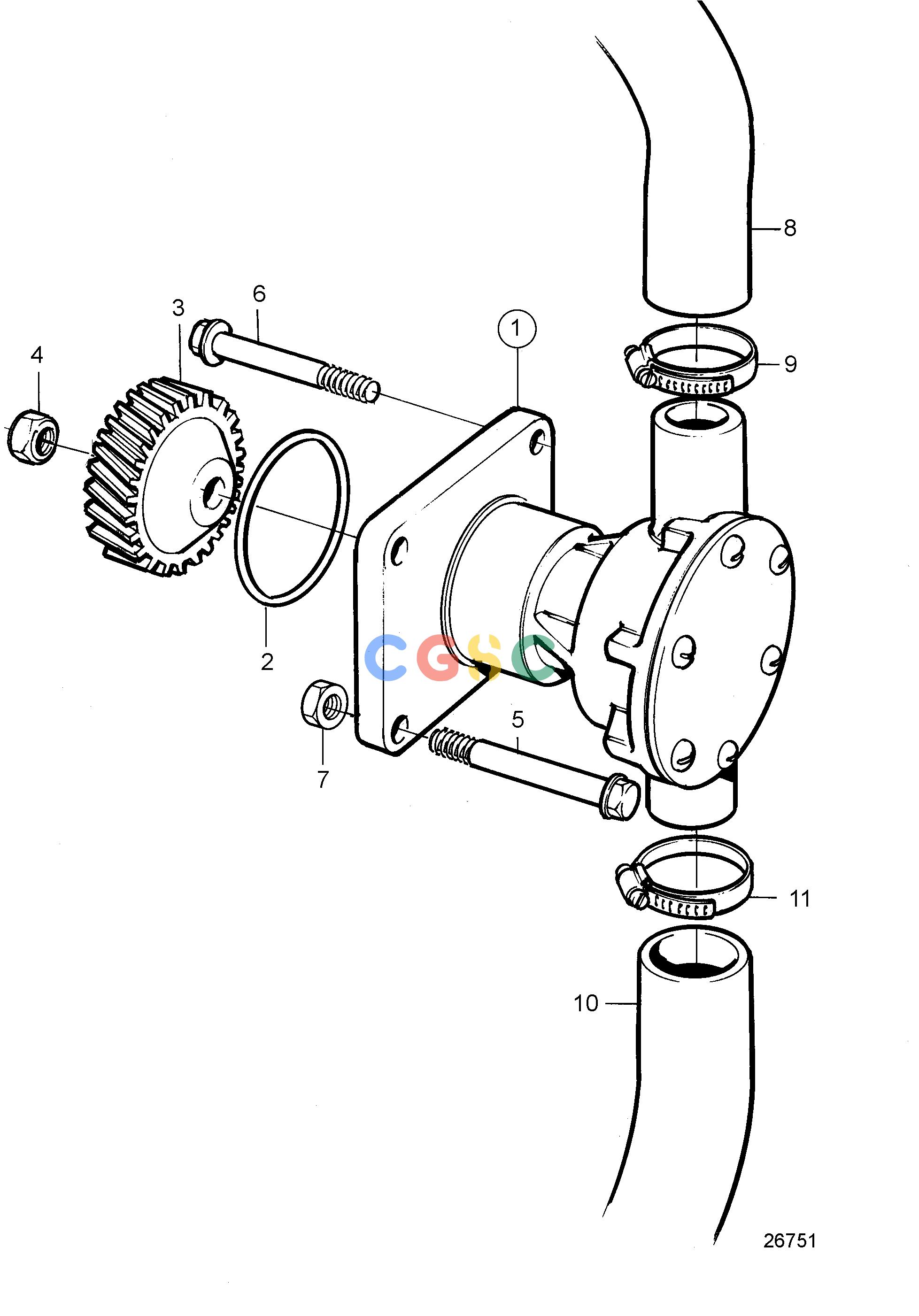

沃尔沃零件查询MD2010-C; MD2010-D; MD2020-C; MD2020-D; MD2030-C; MD2030-D; MD2040-C; MD2040-D; 120S-D; 120S-ECooling SystemSea Water PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
541 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3593654
|
[1] |
Sea water pump
|
(3580064)
|
| 2. |
3580063
|
[1] |
O-ring
|
|
| 3. |
3580062
|
[1] |
Gear
|
|
| 4. |
955782
|
[1] |
Hexagon nut
|
|
| 5. |
965180
|
[2] |
Flange screw
|
|
| 6. |
965216
|
[2] |
Flange screw
|
(3580052)
|
| 7. |
948645
|
[2] |
Flange lock nut
|
|
| 8. |
861926
|
[1] |
Rubber hose
|
Sea water pump-heat exchanger.
|
| 9. |
961667
|
[1] |
Hose clamp
|
|
| 10. |
943369
|
[1] |
Rubber hose
|
Intake-sea water pump., L=1000mm
|
| 11. |
961666
|
[2] |
Hose clamp
|
|
