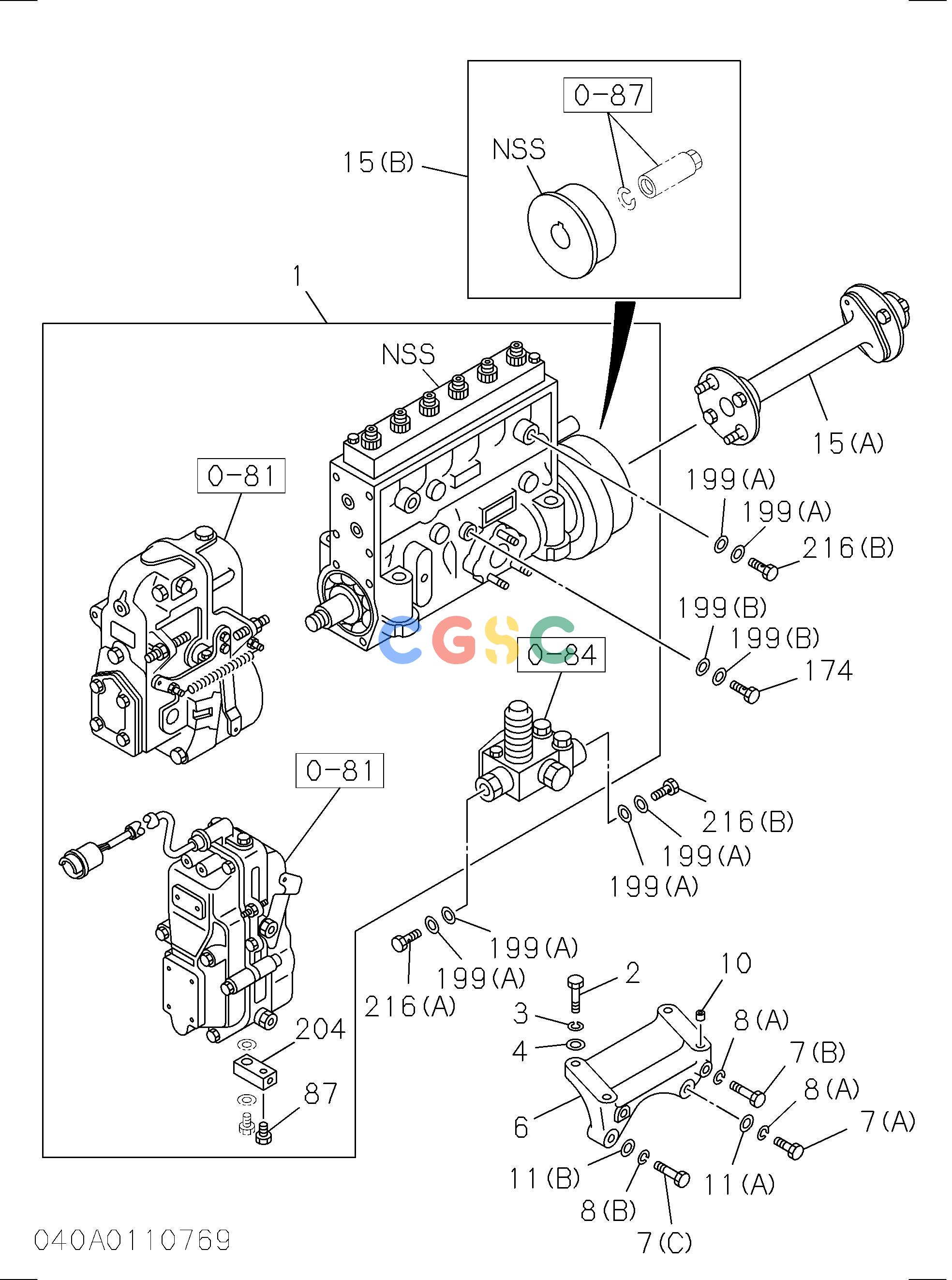

日立零件查询（CX1000）FUEL INJECTION SYSTEM Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
495 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1156029801 | [1] | PUMP ASM; INJ | SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. |
| 2. | 0168060900 | [4] | BOLT; INJ PUMP | M10X90 |
| 3. | 9091505100 | [4] | WASHER; LK,INJ PUMP | |
| 4. | 9091605100 | [4] | WASHER; INJ PUMP | |
| 6. | 9197511181 | [1] | BRACKET; INJ PUMP TO C/BL | |
| 7(A). | 0500510400 | [1] | BOLT; INJ PUMP BRKT | M10X40 W/LK WASHER |
| 7(B). | 0168060800 | [2] | BOLT; INJ PUMP BRKT | M10X80 |
| 7(C). | 0168064550 | [1] | BOLT; INJ PUMP BRKT | M14X55 |
| 8(A). | 9091505100 | [2] | WASHER; LK,INJ PUMP BRKT | |
| 8(B). | 9091505140 | [1] | WASHER; LK,INJ PUMP BRKT | |
| 10. | 9197590191 | [2] | DOWEL; INJ PUMP | |
| 11(A). | 9091605100 | [1] | WASHER; INJ PUMP BRKT | |
| 11(B). | 9091605140 | [1] | WASHER; INJ PUMP BRKT | |
| 15(A). | 1157801570 | [1] | COUPLING ASM; INJ PUMP | SEE FIG-NO 0-87 FOR COMPONENT. |
| 16. | 1154130410 | [1] | PIPE; INJ NO 1 | |
| 17. | 1154130420 | [1] | PIPE; INJ NO 2 | |
| 18. | 1154130430 | [1] | PIPE; INJ NO 3 | |
| 19. | 1154130440 | [1] | PIPE; INJ NO 4 | |
| 20. | 1154130450 | [1] | PIPE; INJ NO 5 | |
| 21. | 1154130460 | [1] | PIPE; INJ NO 6 | |
| 31. | 1153001591 | [6] | NOZZLE ASM; INJ | |
| 32(B). | 1153300422 | [6] | HOLDER ASM; NOZZLE | |
| 33(B). | 1153111560 | [6] | NOZZLE; INJ | |
| 35. | 1153320100 | [6] | NUT; NOZZLE RET,NOZZLE HOLDER | |
| 35. | 1153320190 | [6] | NUT; NOZZLE RET,NOZZLE HOLDER | |
| 37(B). | 1153340110 | [6] | NUT; CAP,NOZZLE HOLDER | |
| 38(B). | 5153390600 | [6] | GASKET; CAP NUT,NOZZLE HOLDER | |
| 39(B). | 5153450050 | [6] | SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER | |
| 44(B). | 5153430050 | [6] | SPRING; NOZZLE,NOZZLE HOLDER | |
| 45(B). | 1153410030 | [6] | ROD; PUSH,NOZZLE HOLDER | |
| 46. | 9153470030 | [12] | PIN; NOZZLE SET,NOZZLE HOLDER | |
| 58. | 9153370170 | [6] | FLANGE; INJ,NOZZLE HOLDER | |
| 60(A). | 1095030390 | [6] | WASHER; NOZZLE HOLDER | |
| 60(B). | 1095030331 | [6] | WASHER; NOZZLE HOLDER | |
| 62(A). | 9091104080 | [6] | NUT; NOZZLE HOLDER | |
| 62(B). | 9091105100 | [6] | NUT; NOZZLE HOLDER | |
| 66. | 9153150750 | [6] | GASKET; INJ NOZZLE | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 96. | 1096390190 | [6] | GASKET; HOLDER TO SLEEVE NUT | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 98. | 9154196130 | [6] | CLIP; "A",INJ PIPE | |
| 99(B). | 0208005100 | [1] | BOLT; CLIP,INJ,PIPE | M5X10 |
| 100. | 9096020820 | [1] | BOLT; INJ PIPE CLIP | |
| 103. | 9091505050 | [1] | WASHER; LK,CLIP,INJ PIPE | |
| 108. | 1096390180 | [6] | GASKET; SLEEVE NUT TO HD | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 109. | 9154191050 | [6] | NUT; GASKET | |
| 113(A). | 1097001100 | [2] | CLIP; INJ PIPE | |
| 113(B). | 1154191020 | [2] | CLIP; INJ PIPE | |
| 114(A). | 9095246320 | [1] | CLIP; INJ PIPE | |
| 114(B). | 9154196120 | [1] | CLIP; INJ PIPE | |
| 114(C). | 1154190990 | [2] | CLIP; INJ PIPE | |
| 120. | 1154191030 | [2] | BRACKET; INJ PIPE | |
| 121(A). | 5154112231 | [1] | PIPE; FUEL,FEED PUMP,SUCTION | |
| 124. | 1096750371 | [4] | BOLT; EYE LEAK OFF PIPE | |
| 126. | 1096300820 | [8] | GASKET; EYE BOLT LEAK OFF PIPE | |
| 128. | 1154143970 | [1] | PIPE ASM; INJ | |
| 137. | 9154130031 | [2] | PIPE ASM; LEAK OFF | |
| 174. | 1096750770 | [1] | BOLT; EYE,FUEL OUTLET,FEED PUMP | M10X21 |
| 199(A). | 1096300850 | [8] | GASKET; EYE BOLT | |
| 199(B). | 1096300830 | [2] | GASKET; EYE BOLT | |
| 216(A). | 1096750630 | [1] | BOLT; EYE | |
| 216(B). | 1096750860 | [3] | BOLT; EYE | |
