日立零件查询（CX1000）OIL COOLER AND OIL FILTER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
560 次

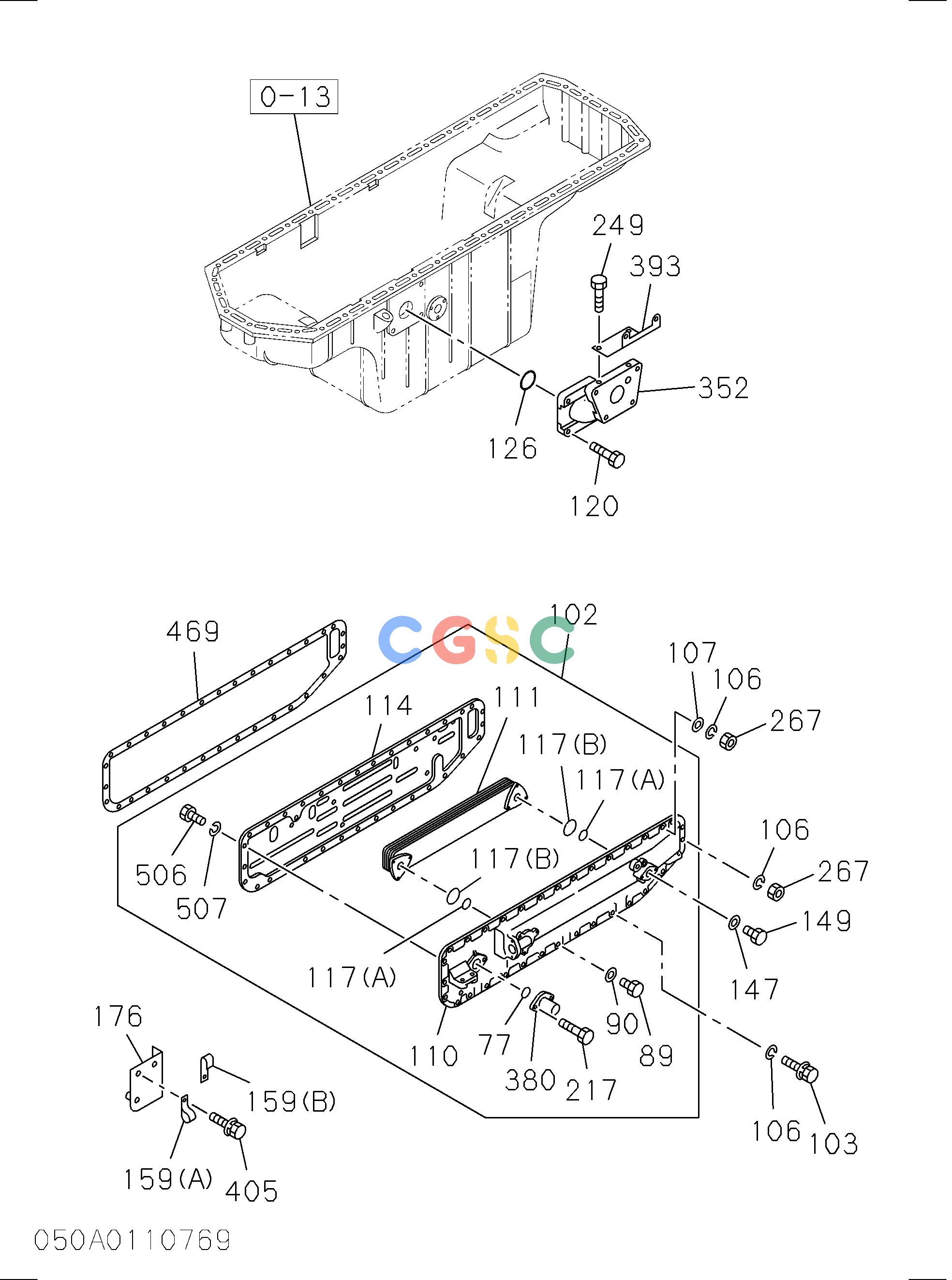

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2(C). | 1132402100 | [1] | ELEMENT; OIL FILTER | |
| 59. | 1132191390 | [2] | PLUG; BODY | |
| 70. | 5096230060 | [2] | GASKET; PLUG,OIL FILTER | |
| 71. | 1132690020 | [1] | VALVE ASM; RELIEF,OIL FILTER | |
| 102. | 1217002062 | [1] | COOLER ASM; OIL | |
| 103. | 0108058700 | [1] | BOLT; OIL COOLER | M8X70 |
| 103. | 0501408250 | [31] | BOLT; OIL COOLER | M8X25 W/WASHER |
| 106. | 9091505080 | [1] | WASHER; LK,OIL COOLER | |
| 107. | 9091605080 | [1] | WASHER; PL,OIL COOLER | |
| 110. | 1217210454 | [1] | BODY; CASE,OIL COOLER | |
| 111. | 1217230410 | [1] | CORE; OIL COOLER | |
| 114. | 1217290710 | [1] | PLATE; BAFFLE,OIL COOLER | |
| 117(A). | 1096231870 | [2] | GASKET; OIL COOLER | |
| 117(B). | 1096231880 | [2] | GASKET; OIL COOLER | |
| 147. | 1096300850 | [1] | GASKET; PLUG | |
| 149. | 9992023140 | [1] | PLUG | |
| 264. | 1132650220 | [1] | PLUG; BODY,OIL FILTER | |
| 281(C). | 1132120910 | [1] | COVER; OIL FILTER | |
| 306(B). | 1132600770 | [1] | VALVE; OIL FILTER | |
| 321(A). | 1096234500 | [1] | GASKET; OIL FILTER TO C/BL | |
| 321(B). | 1096235410 | [1] | GASKET; OIL FILTER TO C/BL | |
| 328(A). | 9098041431 | [1] | BOLT; OIL FILTER | M10X110 |
| 328(A). | 0500510300 | [2] | BOLT; OIL FILTER | M10X30 W/LK WASHER |
| 328(D). | 0501510300 | [2] | BOLT; OIL FILTER | M10X30 W/LK WASHER |
| 331(A). | 9091605100 | [3] | WASHER; PL,OIL FILTER | |
| 332(A). | 9091505100 | [1] | WASHER; LK,OIL FILTER | |
| 338. | 1132008742 | [1] | FILTER ASM; OIL PARTIAL | |
| 341. | 1090440252 | [3] | BOLT; OIL FILTER,PARTIAL | M10X143 |
| 341. | 0287810300 | [3] | BOLT; OIL FILTER,PARTIAL | M10X143 |
| 386. | 8941357790 | [2] | PLUG; OIL FILTER | |
| 391. | 1132401583 | [2] | CARTRIDGE; OIL FILTER,PARTIAL | C |
| 391. | 1132402090 | [2] | CARTRIDGE; OIL FILTER,PARTIAL | |
| 469. | 1112191550 | [1] | GASKET; OIL COOLER TO C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 496(B). | 1132009770 | [1] | FILTER ASM; OIL | |
