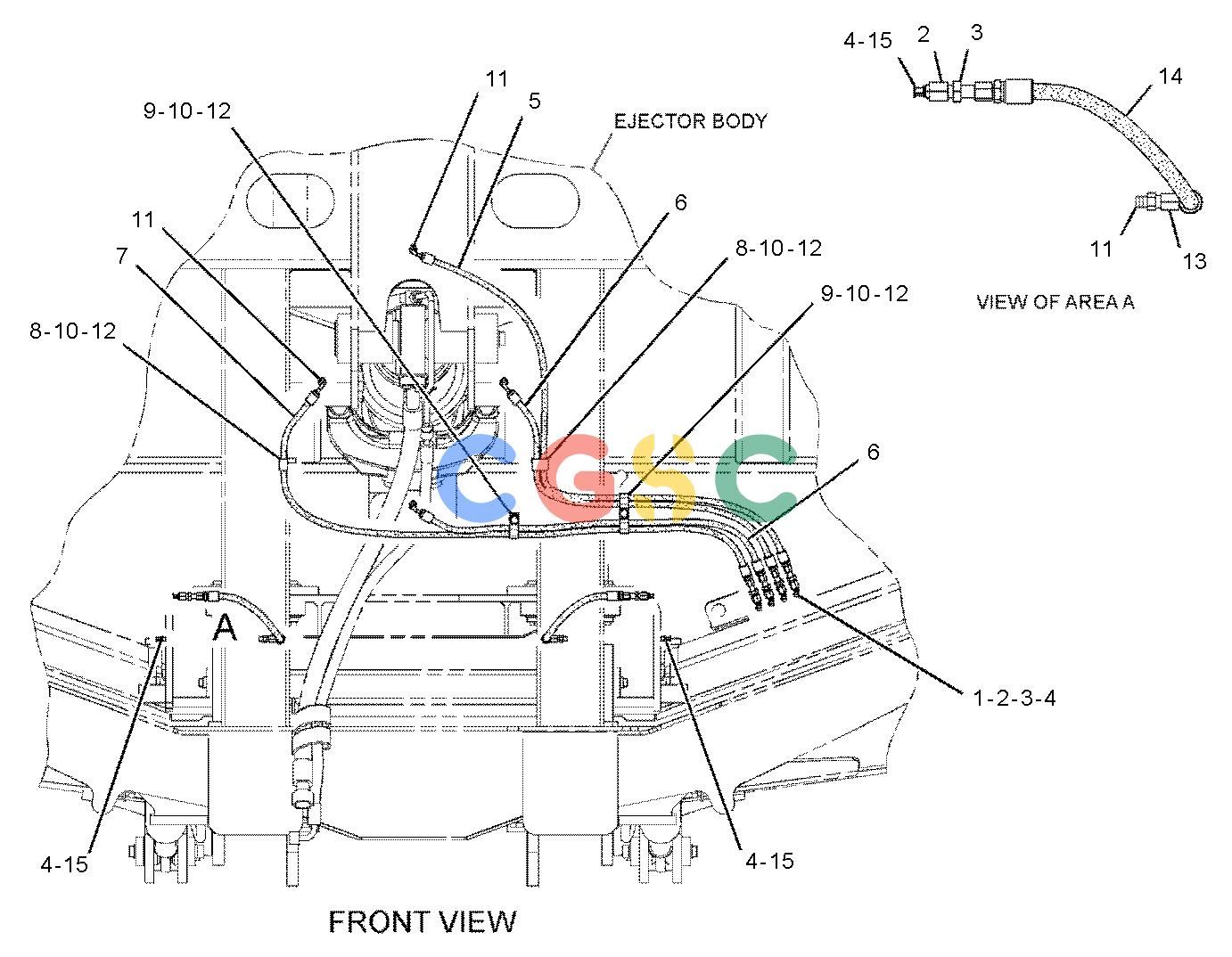

卡特零件查询（730） 208-9606: LINES GP-GREASE
广数供应链运营团队, 15 02月, 2025，浏览：
131 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8485 | [4] | ELBOW | |
| 2. | 4U-1697 | [6] | ADAPTER-BULKHEAD | |
| 3. | 5B-3254 | [6] | NUT-JAM(7/16-20-THD) | |
| 4. | 5U-7151 | [8] | CAP-GREASE | |
| 5. | 187-7278I | [1] | HOSE AS | |
| 6. | 187-7279I | [2] | HOSE AS | |
| 7. | 187-7280I | [1] | HOSE AS | |
| 8. | 124-0174 | [3] | CLIP(LOOP) | |
| 9. | 4D-6466 | [3] | CLIP | |
| 10. | 6V-5839 | [4] | WASHER(11X21X2.5-MM THK) | |
| 11. | 8L-6557 | [6] | CONNECTOR | |
| 12. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 13. | 7K-9197 | [2] | ELBOW | |
| 14. | 301-8204 | [2] | HOSE AS | |
| 15. | 3B-8489 | [4] | FITTING-GREASE(1/8-27 PTF) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
