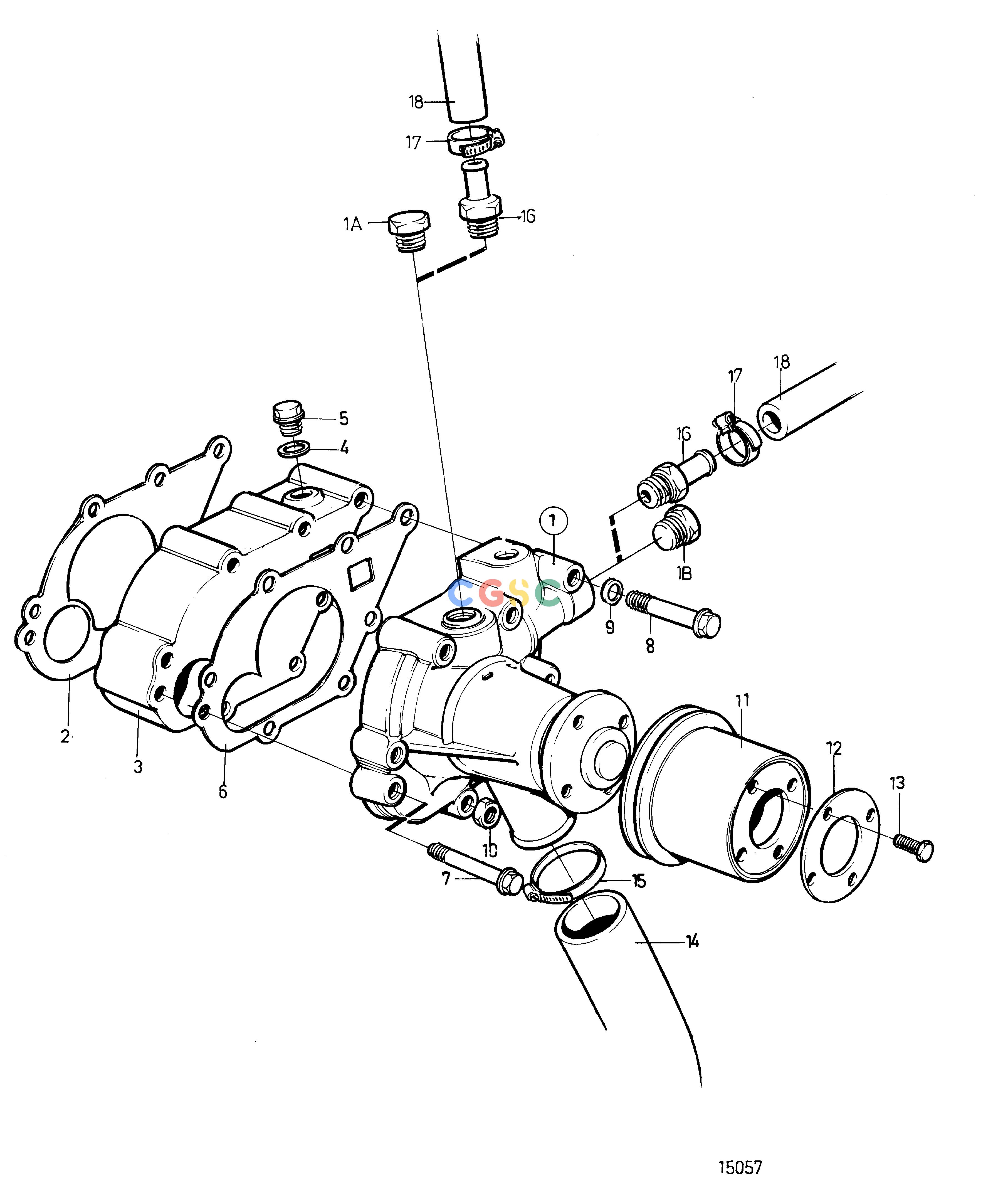

沃尔沃零件查询MD2010-C; MD2010-D; MD2020-C; MD2020-D; MD2030-C; MD2030-D; MD2040-C; MD2040-D; 120S-D; 120S-ECooling SystemWater PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
356 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
861990
|
[1] |
Water pump
|
|
| 1A. |
|
|
|
|
| 1B. |
|
|
|
|
| 2. |
3580001
|
[1] |
Gasket
|
|
| 3. |
3580002
|
[1] |
Spacer
|
|
| 4. |
861917
|
[1] |
Washer
|
|
| 5. |
861918
|
[1] |
Plug
|
|
| 6. |
3580003
|
[1] |
Gasket
|
|
| 7. |
861899
|
[3] |
Screw
|
|
| 8. |
20405647
|
[4] |
Hexagon screw
|
|
| 9. |
861913
|
[4] |
Spring washer
|
|
| 10. |
945407
|
[1] |
Flange nut
|
|
| 11. |
3580011
|
[1] |
Pulley
|
|
| 12. |
3580012
|
[1] |
Flange
|
|
| 13. |
3580013
|
[4] |
Screw
|
|
| 14. |
861928
|
[1] |
Rubber hose
|
Heat exchanger-water pump.
|
| 15. |
961667
|
[1] |
Hose clamp
|
|
| 16. |
976040
|
[2] |
Hose nipple
|
Hot water outlet.
|
| 17. |
961665
|
[2] |
Hose clamp
|
|
| 18. |
952969
|
[1] |
Hose
|
|
