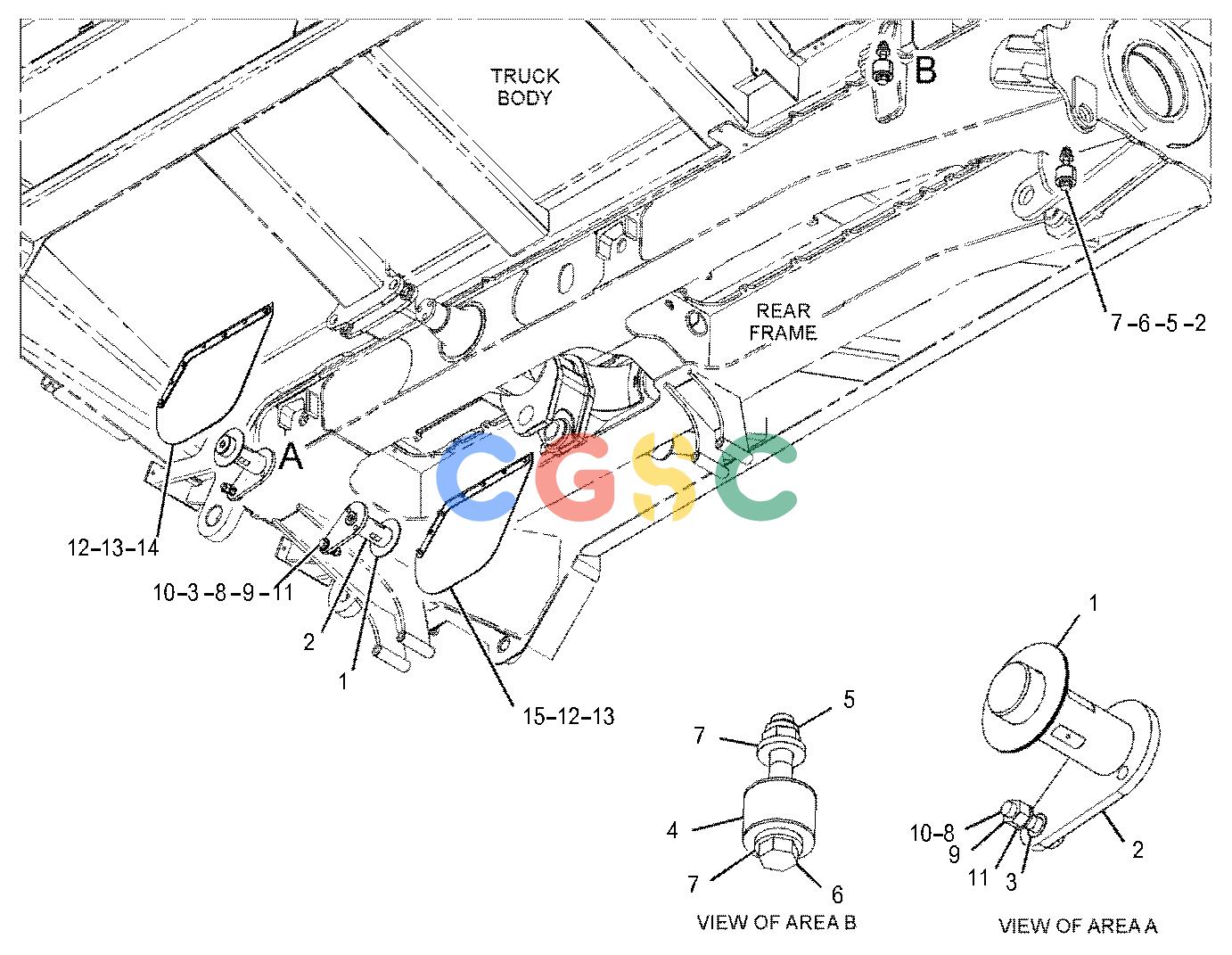

卡特零件查询（730） 364-2257: MOUNTING GP-TRUCK BODY
广数供应链运营团队, 15 02月, 2025，浏览：
365 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5U-0297 | [6] | SHIM(1.6-MM THK) | |
| 2. | 541-6882 | [2] | PIN AS | |
| 3. | 144-6952 | [2] | BUSHING | |
| 4. | 192-3322 | [2] | BUMPER-RUBBER | |
| 5. | 6V-7676M | [2] | NUT(M24X3-THD) | |
| 6. | 7X-2567M | [2] | BOLT(M24X3X160-MM) | |
| 7. | 8T-1482 | [4] | WASHER-HARD(26X50X8-MM THK) | |
| 8. | 8T-4123 | [2] | WASHER(22X35X3.5-MM THK) | |
| 9. | 8T-4131M | [2] | NUT(M20X2.5-THD) | |
| 10. | 213-5007M | [2] | BOLT(M20X2.5X80-MM) | |
| 11. | 8T-5439 | [2] | WASHER-HARD(21.5X45X6-MM THK) | |
| 12. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 13. | 8T-4196M | [8] | BOLT(M10X1.5X35-MM) | |
| 14. | 206-5017 | [8] | SPACER(11X20X5-MM THK) | |
| 15. | 267-1689 | [4] | PLATE | |
| 16. | 267-1690 | [2] | DEFLECTOR-MUD | |
| 17. | 3B-8489 | [4] | FITTING-GREASE(1/8-27 PTF) | |
| | M | | METRIC PART |
