纽荷兰零件查询(E200SRLC) - CRAWLER EXCAVATOR BTW LA04-01506 - LA04-01625 (04-003) - ELEMENT KIT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
850 次

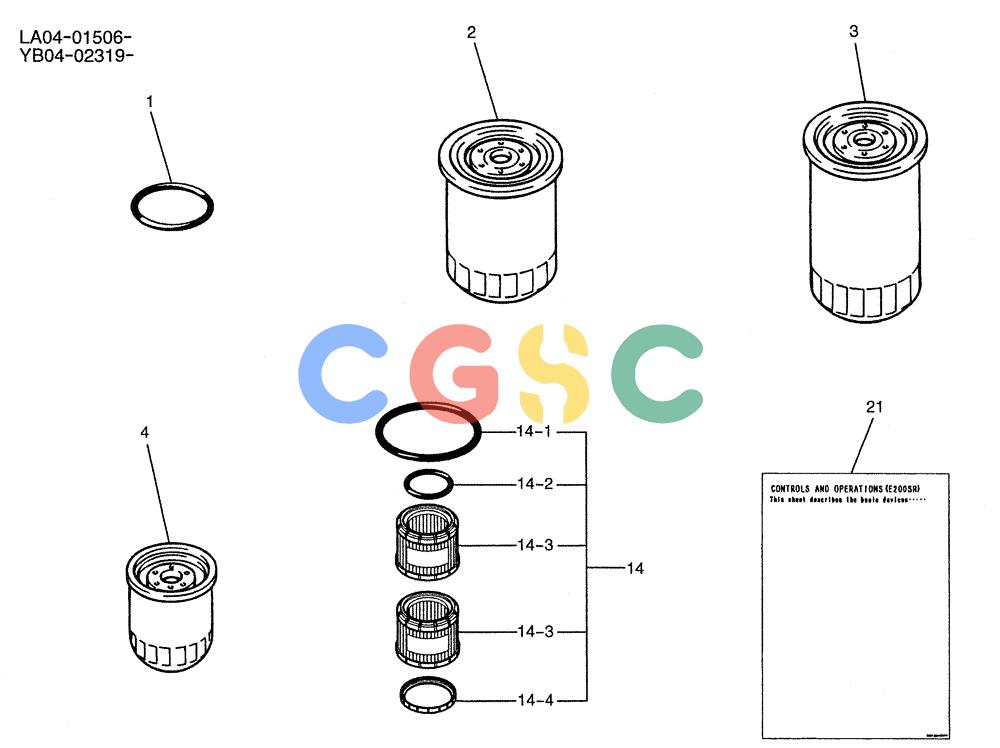

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YB30T00003F4 | [1] | ELEMENT KIT | |
| 1. | 2445Z1136 | [4] | O-RING | KOB |
| 2. | 2451U544S16 | [1] | ELEMENT | KOBFILTER, OIL Superseded by part number: 2451U309-1 |
| 3. | YX02P00001S008 | [1] | ELEMENT | KOBFILTER, OIL Superseded by part number: 84160436 |
| 4. | YB02P00001S011 | [1] | FILTER | KOBFILTER, FUEL Superseded by part number: YB02P00001-2 |
| 14. | YN52V01008R200 | [1] | ELEMENT | KOB Superseded by part number: YN52V01016R210 |
| 14-1. | ZD11G20000 | [1] | O-RING,5.7mm Thk x 199.3mm ID, 70 Duro | KOB |
| 14-2. | ZD11G09000 | [1] | O-RING,89.40mm ID x 95.60mm OD x 3.10mm | KOB |
| 14-3. | YN52V01013P1 | [2] | HYDRAULIC OIL FILTER | KOBFILTER Superseded by part number: YN52V01021P1 |
| 14-4. | YN52V01008S005 | [1] | PACKING | KOB |
| 21. | YB91Z00007P1 | [1] | MANUAL, OPERATORS, Start Serial: LA04-01611 | |
