日立零件查询（CX1000）HOOK 11T Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
1003 次

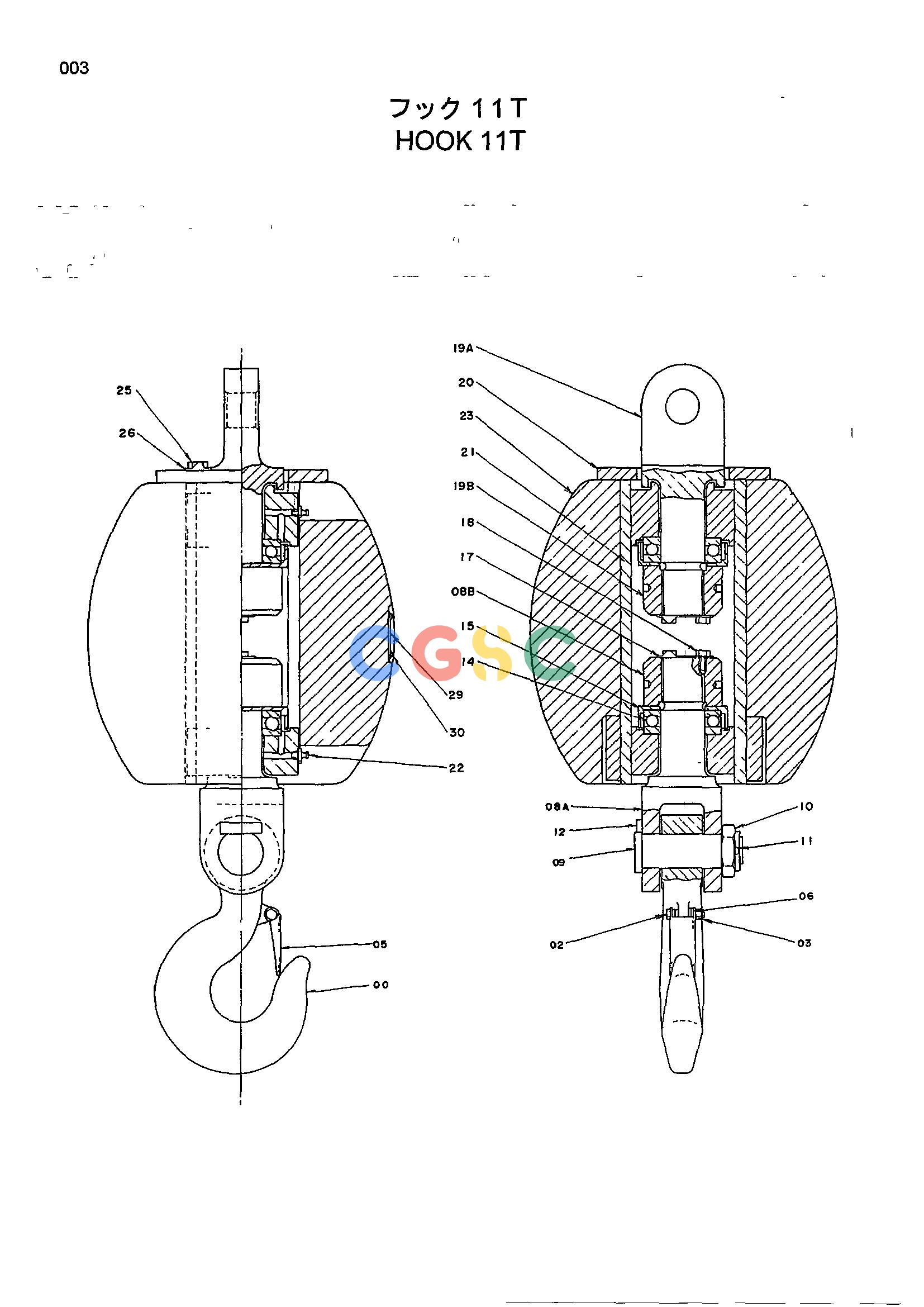

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9172390 | [1] | HOOK 11T | |
| 00. | 2042625 | [1] | HOOK | |
| 02. | J900850 | [1] | BOLT | |
| 03. | 4030364 | [1] | NUT;U | |
| 05. | 4152251 | [1] | BRACKET | |
| 06. | 4093094 | [1] | SPRING;TORSION | |
| 08A-. | 9058288 | [1] | ROD | |
| 08A. | +++++++ | [1] | ROD;SCREW | |
| 08B. | +++++++ | [1] | NUT;ROUND | |
| 09. | 4101465 | [1] | AXLE | |
| 10. | M534225 | [1] | NUT;CASTLE | |
| 11. | A768090 | [1] | PIN;SPLIT | |
| 12. | 4093099 | [1] | PLATE | |
| 14. | 948922 | [2] | BRG.;BALL | |
| 15. | 4101466 | [2] | COVER;BRG. | |
| 17. | 4100134 | [2] | WASHER;LOCK | |
| 18. | J901022 | [4] | BOLT | |
| 19A-. | 9058287 | [1] | ROD | |
| 19A. | +++++++ | [1] | ROD;SCREW | |
| 19B. | +++++++ | [1] | NUT;ROUND | |
| 20. | 4135352 | [1] | STOPPER | |
| 21. | 7011840 | [1] | FRAME | |
| 22. | J75481 | [2] | FITTING;GREASE | |
| 23. | 2014051 | [1] | WEIGHT | |
| 25. | M211656 | [4] | BOLT | |
| 26. | 4134074 | [4] | WASHER;TONGUED | |
| 29. | 495652 | [1] | NAME-PLATE | |
| 30. | M492564 | [4] | SCREW;DRIVE | |
