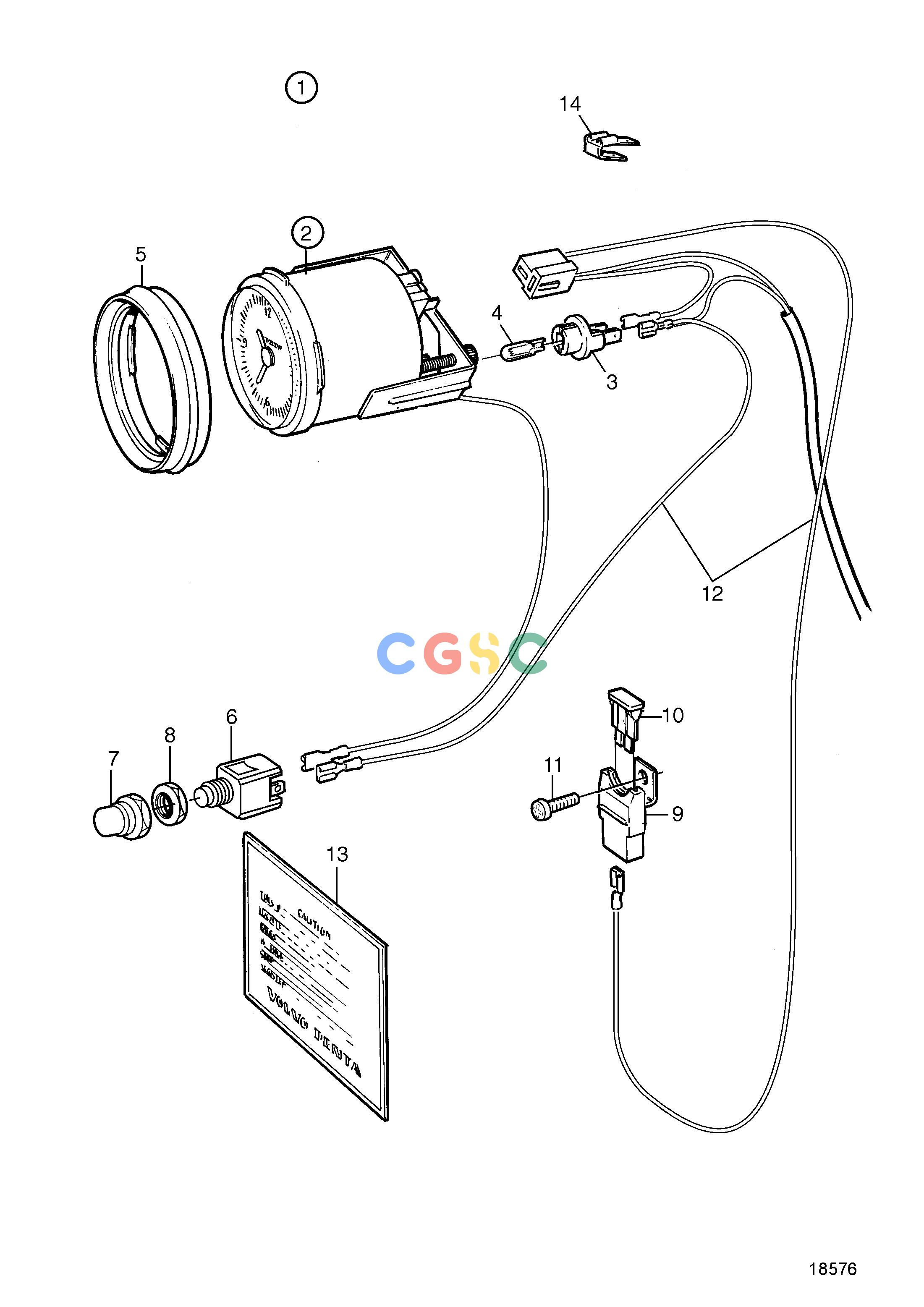

沃尔沃零件查询MD2010-C; MD2010-D; MD2020-C; MD2020-D; MD2030-C; MD2030-D; MD2040-C; MD2040-D; 120S-D; 120S-EElectrical SystemClock KitEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
183 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
1140597
|
[1] |
Clock kit
|
|
| 2. |
856814
|
[1] |
Clock
|
|
| 3. |
863945
|
[1] |
Bulb socket
|
|
| 4. |
863946
|
[1] |
Bulb
|
|
| 5. |
858643
|
[1] |
Front ring
|
|
| 6. |
828584
|
[1] |
Toggle switch
|
|
| 7. |
828586
|
[1] |
Nut
|
|
| 8. |
872407
|
[1] |
Hexagon nut
|
|
| 9. |
1323312
|
[1] |
Insulator
|
|
| 10. |
981405
|
[1] |
Fuse
|
3A (969115)
|
| 11. |
972070
|
[1] |
Six point socket scr
|
|
| 12. |
872492
|
[1] |
Cable kit
|
|
| 13. |
841242
|
[1] |
Label
|
|
| 14. |
943950
|
[1] |
Contact
|
|
