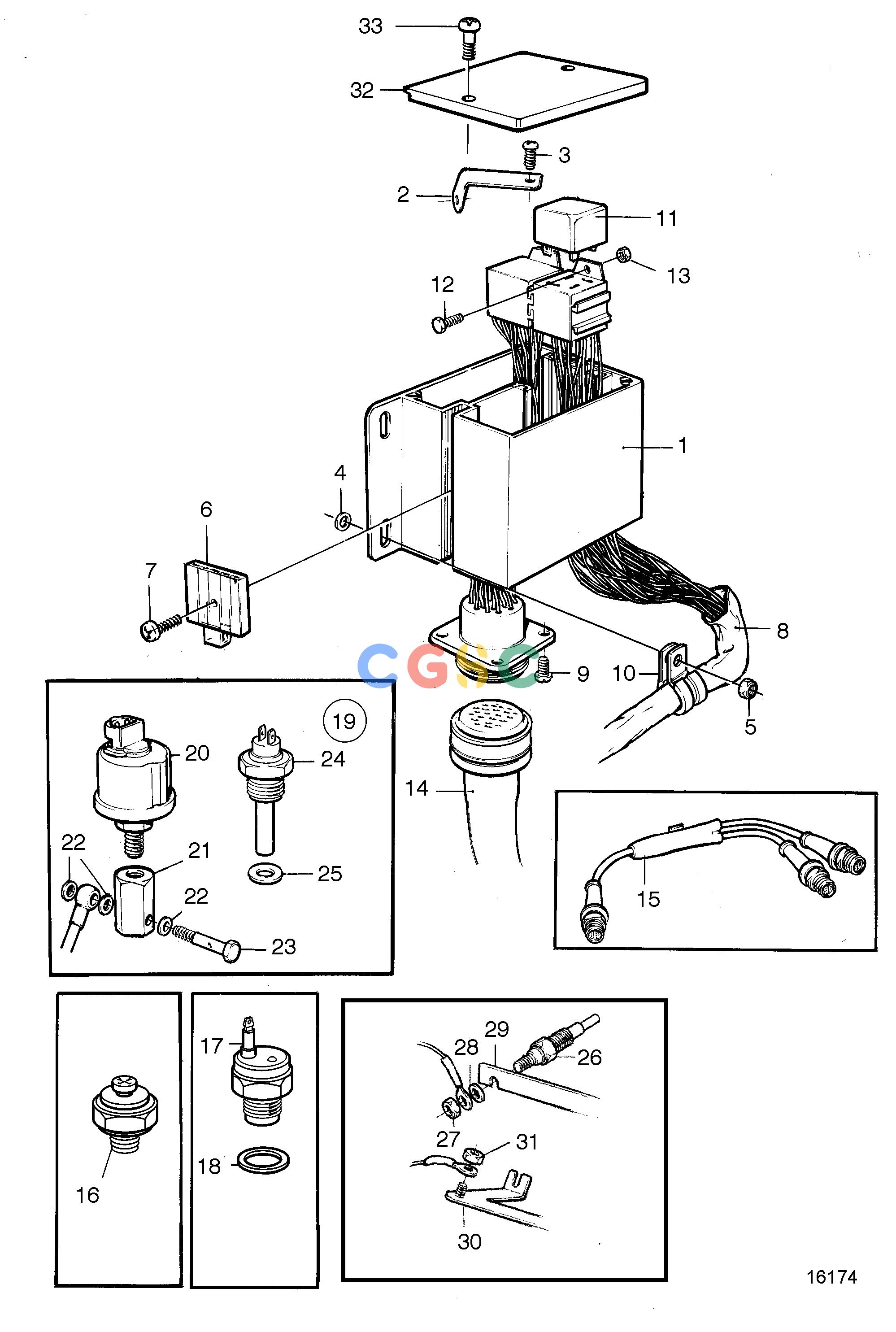

沃尔沃零件查询MD2010-C; MD2010-D; MD2020-C; MD2020-D; MD2030-C; MD2030-D; MD2040-C; MD2040-D; 120S-D; 120S-EElectrical SystemElectrical SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
225 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
861648
|
[1] |
Electrical distribut
|
|
| 2. |
3580947
|
[1] |
Stay
|
|
| 3. |
955119
|
[1] |
Cross recessed screw
|
|
| 4. |
|
|
|
|
| 5. |
945407
|
[2] |
Flange nut
|
|
| 6. |
873566
|
[1] |
Fuse box
|
|
| 7. |
955142
|
[1] |
Cross recessed screw
|
|
| 8. |
873565
|
[1] |
Cable harness
|
|
| 9. |
955119
|
[4] |
Cross recessed screw
|
|
| 10. |
952627
|
[1] |
Clamp
|
|
| 11. |
873765
|
[2] |
Relay
|
12V 20-30A (873604)
|
| 12. |
948663
|
[2] |
Flange screw
|
|
| 13. |
955780
|
[2] |
Hexagon nut
|
|
| 14. |
846648
|
[1] |
Extension cable
|
L=3.0m
|
| 14. |
846649
|
[1] |
Extension cable
|
L=5.0m
|
| 14. |
846650
|
[1] |
Extension cable
|
L=7,0m
|
| 14. |
873838
|
[1] |
Extension cable
|
L=9.0m
|
| 14. |
873839
|
[1] |
Extension cable
|
L=11,0m
|
| 15. |
1140598
|
[1] |
Distributing contact
|
For double steering positions.
|
| 16. |
873597
|
[1] |
Pressure monitor
|
|
| 17. |
873598
|
[1] |
Thermo monitor
|
95°C
|
| 18. |
947622
|
[1] |
Gasket
|
|
| 19. |
873569
|
[1] |
Sensor kit
|
|
| 20. |
366906
|
[1] |
Pressure sensor
|
0-10BAR
|
| 21. |
861388
|
[1] |
Adapter
|
|
| 22. |
947620
|
[3] |
Gasket
|
|
| 23. |
861389
|
[1] |
Hollow screw
|
|
| 24. |
827151
|
[1] |
Temperature sensor
|
120°C
|
| 25. |
947624
|
[1] |
Gasket
|
|
| 26. |
3583025
|
[2] |
Glow plug
|
|
| 27. |
|
|
|
|
| 28. |
|
|
|
|
| 29. |
3580085
|
[1] |
Current bar
|
|
| 30. |
|
|
|
Not used with MD2010C, MD2010D, MD2020C, MD2020D, MD2030C or MD2030D.
|
| 31. |
|
|
|
Not used with MD2010C, MD2010D, MD2020C, MD2020D, MD2030C or MD2030D.
|
| 32. |
861681
|
[1] |
Cap
|
|
| 33. |
955142
|
[2] |
Cross recessed screw
|
|
