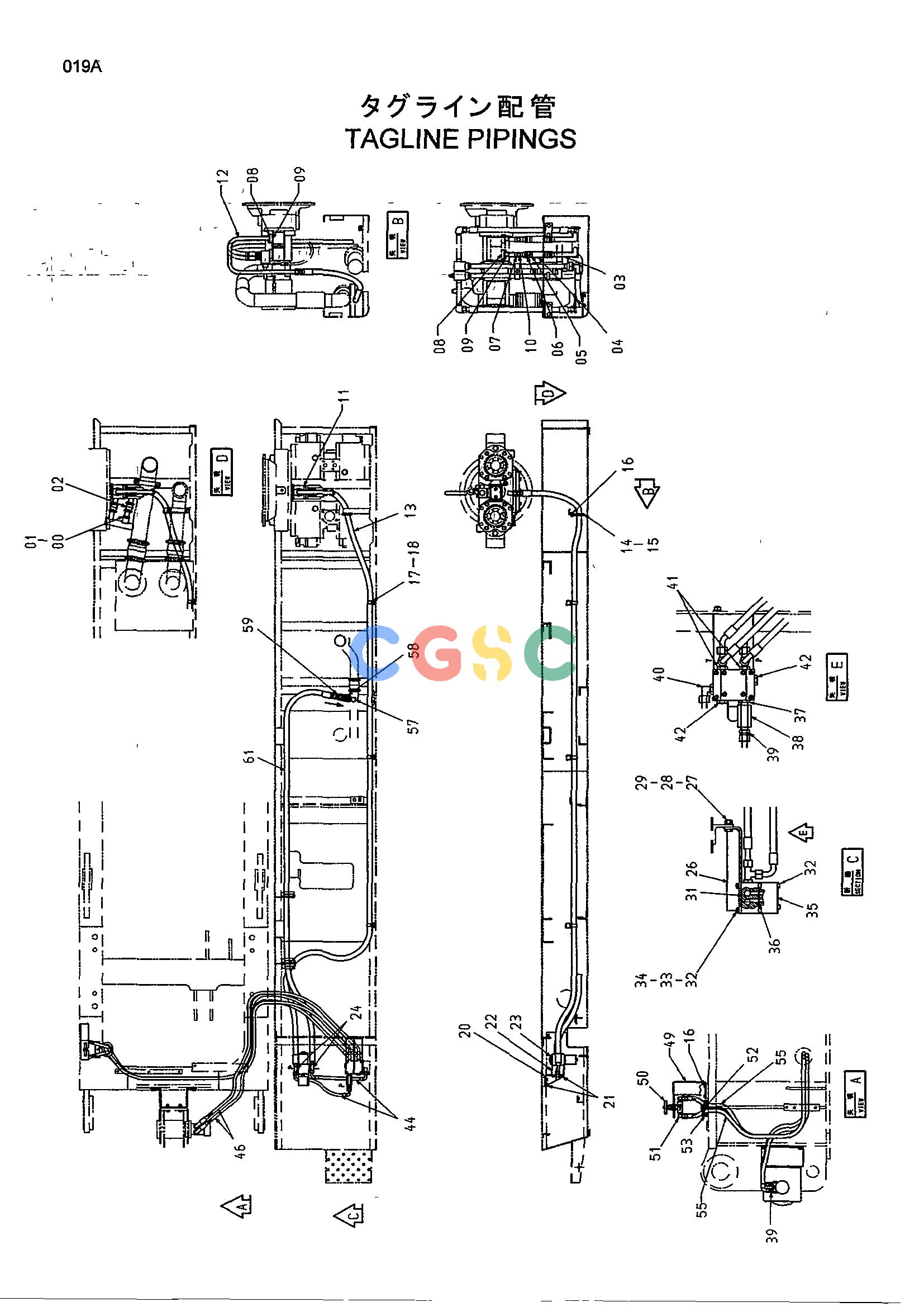

日立零件查询（CX1000）TAGLINE PIPING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
302 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4395706 | [1] | ADAPTER;S | |
| 01. | 4506429 | [1] | O-RING | |
| 02. | 4071213 | [1] | COUPLING | |
| 03. | 9746425 | [1] | PIPE | |
| 04. | 4084123 | [1] | HOSE;RUBBER | |
| 05. | 4296063 | [2] | CLAMP;HOSE | |
| 06. | 4011675 | [2] | CLAMP;HOSE | |
| 07. | 9746421 | [1] | PIPE | |
| 08. | A811030 | [2] | O-RING | |
| 09. | M341036 | [8] | BOLT;SOCKET | |
| 10. | 4092534 | [1] | PLUG | |
| 10A. | 4509180 | [1] | O-RING | |
| 11. | 4368900 | [1] | PUMP;GEAR | |
| 12. | 8070888 | [1] | PIPE | |
| 13. | 4396252 | [1] | HOSE | |
| 14. | 9749698 | [1] | BRACKET | |
| 15. | 4207839 | [1] | BUSHING;RUBBER | |
| 16. | J011025 | [4] | BOLT;SEMS | |
| 17. | 4190291 | [3] | CLIP | |
| 18. | J011020 | [3] | BOLT;SEMS | |
| 20. | 8071612 | [1] | BRACKET | |
| 21. | J011225 | [4] | BOLT;SEMS | |
| 22. | 3070573 | [1] | MANIFOLD | |
| 23. | 4361100 | [1] | VALVE;SOLENOID | |
| 24. | 4221224 | [2] | TEE;S | |
| 24A. | 4506418 | [1] | O-RING | |
| 26. | 9725556 | [1] | BRACKET | |
| 27. | J901230 | [2] | BOLT | |
| 28. | A590912 | [2] | WASHER;SPRING | |
| 29. | J950012 | [2] | NUT | |
| 31. | 2042187 | [1] | MANIFOLD | |
| 32. | M340871 | [8] | BOLT;SOCKET | |
| 33. | A590908 | [4] | WASHER;SPRING | |
| 34. | J950008 | [4] | NUT | |
| 35. | 4146469 | [1] | VALVE;RELIEF | |
| 36. | 4509180 | [2] | O-RING | |
| 37. | 4234652 | [1] | ADAPTER;S | |
| 37A. | 4506418 | [1] | O-RING | |
| 38. | 4163092 | [1] | VALVE;CHECK | |
| 39. | 4221287 | [3] | ADAPTER;S | |
| 40. | 4154672 | [1] | ELBOW;S | |
| 40A. | 4506418 | [1] | O-RING | |
| 41. | 4217343 | [2] | TEE;S | |
| 41A. | 4506418 | [1] | O-RING | |
| 42. | 4174541 | [2] | PLUG | |
| 42A. | 4506418 | [1] | O-RING | |
| 44. | 4398980 | [2] | HOSE | |
| 46. | 4398981 | [2] | HOSE | |
| 49. | 8067435 | [1] | BRACKET | |
| 50. | 4023814 | [1] | VALVE | |
| 51. | 4154658 | [2] | ELBOW;S | |
| 52. | 8030482 | [1] | SUPPORT | |
| 53. | J011018 | [2] | BOLT;SEMS | |
| 55. | 4398707 | [2] | HOSE | |
| 57. | 4174588 | [1] | ELBOW;S | |
| 57A. | 4506424 | [1] | O-RING | |
| 58. | 4163095 | [1] | VALVE;CHECK | |
| 59. | 94-1304 | [1] | ADAPTER;S | |
| 61. | 4398727 | [1] | HOSE | |
