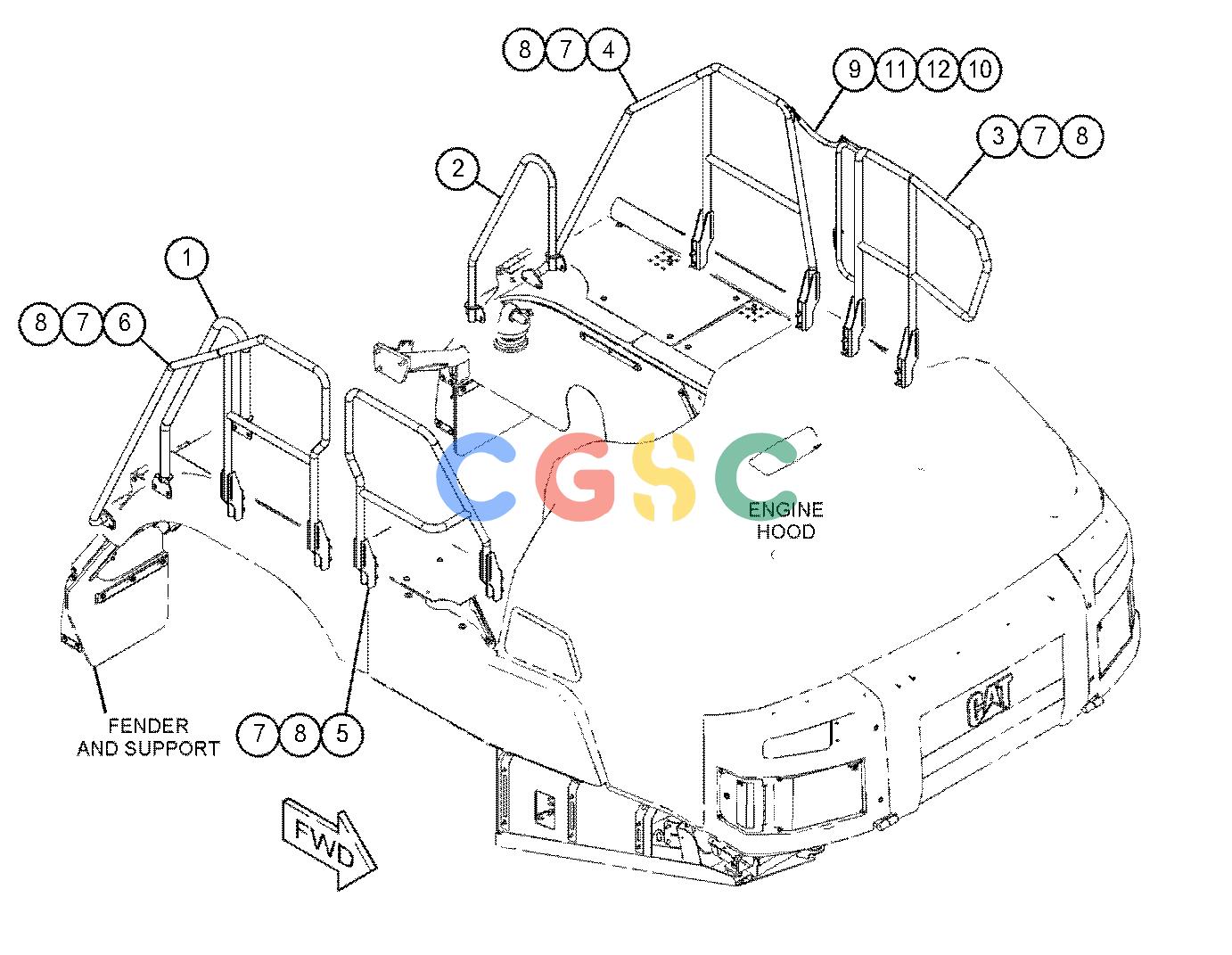

卡特零件查询（730） 492-2285: GUARD GP-PLATFORM
广数供应链运营团队, 15 02月, 2025，浏览：
808 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 415-3887 | [1] | HANDRAIL AS(RH) | |
| 2. | 415-3889 | [1] | HANDRAIL AS(LH) | |
| 3. | 525-8303 | [1] | HANDRAIL AS(LH) | |
| 4. | 498-2055 | [1] | HANDRAIL AS(LH) | |
| 5. | 498-2056 | [1] | HANDRAIL AS(RH) | |
| 6. | 498-2057 | [1] | HANDRAIL AS(RH) | |
| 7. | 8T-4139M | [16] | BOLT(M12X1.75X30-MM) | |
| 8. | 8T-4223 | [16] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 9. | 527-6715 | [1] | CHAIN AS | |
| 10. | 456-2606 | [2] | LOCKNUT(M6X1-THD) | |
| 11. | 8T-4138M | [2] | BOLT(M6X1X20-MM) | |
| 12. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| | M | | METRIC PART |
