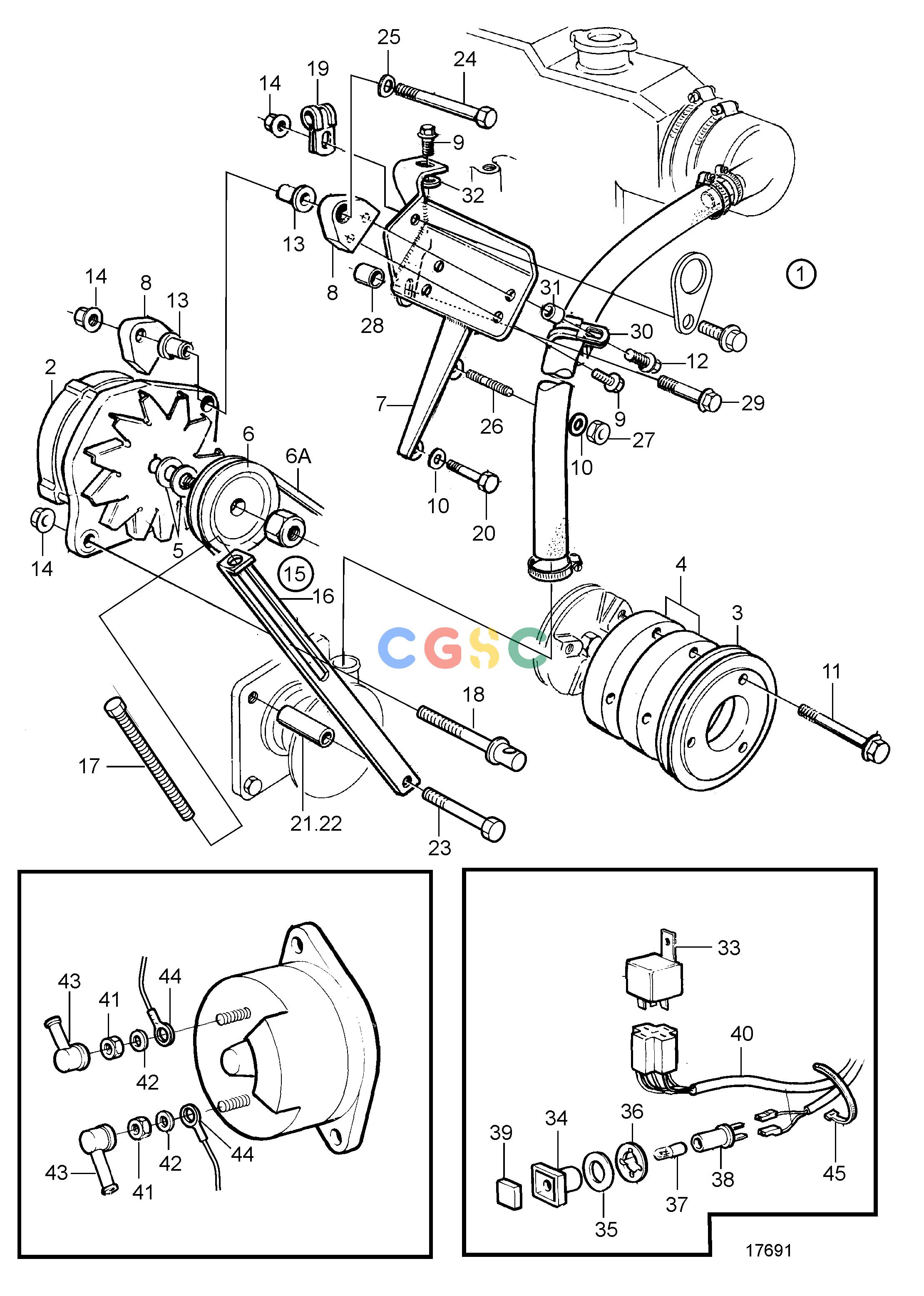

沃尔沃零件查询MD2010-C; MD2010-D; MD2020-C; MD2020-D; MD2030-C; MD2030-D; MD2040-C; MD2040-D; 120S-D; 120S-EElectrical SystemExtra AlternatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
572 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3581043
|
[1] |
Alternator
|
|
| 2. |
872235
|
[1] |
Alternator
|
14V, 60A
|
| 2. |
3803260
|
[1] |
Alternator, exch
|
14V, 60A
|
| 2. |
|
|
|
|
| 3. |
3581037
|
[1] |
Pulley
|
|
| 4. |
3581083
|
[2] |
Spacer disc
|
When extra pulley is mounted.
|
| 5. |
|
|
|
|
| 6. |
841811
|
[1] |
Pulley
|
|
| 6A. |
978750
|
[1] |
V-belt
|
|
| 7. |
861142
|
[1] |
Bracket
|
|
| 8. |
3580749
|
[2] |
Anchorage
|
|
| 9. |
946440
|
[4] |
Flange screw
|
|
| 10. |
955893
|
[2] |
Washer
|
|
| 11. |
965217
|
[3] |
Flange screw
|
|
| 12. |
945444
|
[1] |
Flange screw
|
|
| 13. |
859274
|
[2] |
Washer
|
|
| 14. |
945408
|
[2] |
Flange nut
|
|
| 15. |
861660
|
[1] |
Tensioning arm
|
|
| 16. |
|
|
|
|
| 17. |
977820
|
[1] |
Hexagon screw
|
|
| 18. |
861663
|
[1] |
Flange screw
|
|
| 19. |
949746
|
[1] |
Clamp
|
|
| 20. |
955285
|
[1] |
Hexagon screw
|
|
| 21. |
847239
|
[1] |
Spacer sleeve
|
L=36mm for 2020
|
| 22. |
848694
|
[1] |
Spacer sleeve
|
L=36mm for 2030
|
| 23. |
965184
|
[1] |
Flange screw
|
|
| 24. |
963233
|
[1] |
Hexagon screw
|
|
| 25. |
941907
|
[1] |
Spring washer
|
|
| 26. |
945292
|
[1] |
Stud
|
|
| 27. |
955781
|
[1] |
Hexagon nut
|
|
| 28. |
821539
|
[1] |
Spacer sleeve
|
|
| 29. |
946671
|
[1] |
Flange screw
|
|
| 30. |
947827
|
[1] |
Clamp
|
|
| 31. |
807184
|
[1] |
Spacer sleeve
|
|
| 32. |
961169
|
[2] |
Washer
|
8.4x16x3mm
|
| 33. |
1324492
|
[1] |
Relay
|
|
| 34. |
838455
|
[1] |
Retainer
|
|
| 35. |
829714
|
[1] |
Sealing ring
|
|
| 36. |
967583
|
[1] |
Retainer
|
|
| 37. |
19923
|
[1] |
Bulb
|
|
| 38. |
808175
|
[1] |
Bulb socket
|
|
| 39. |
838457
|
[1] |
Symbol strip
|
|
| 40. |
838542
|
[1] |
Cable block
|
|
| 41. |
955780
|
[1] |
Hexagon nut
|
M5
|
| 41. |
955781
|
[1] |
Hexagon nut
|
M6
|
| 42. |
941905
|
[1] |
Spring washer
|
I.D=5,3mm
|
| 42. |
941906
|
[1] |
Spring washer
|
I.D=6,7mm
|
| 43. |
842150
|
[2] |
Protective hat
|
|
| 44. |
881512
|
[1] |
Cable terminal
|
M5
|
| 44. |
940335
|
[1] |
Cable terminal
|
M6
|
| 45. |
948211
|
[10] |
Cable tie
|
|
