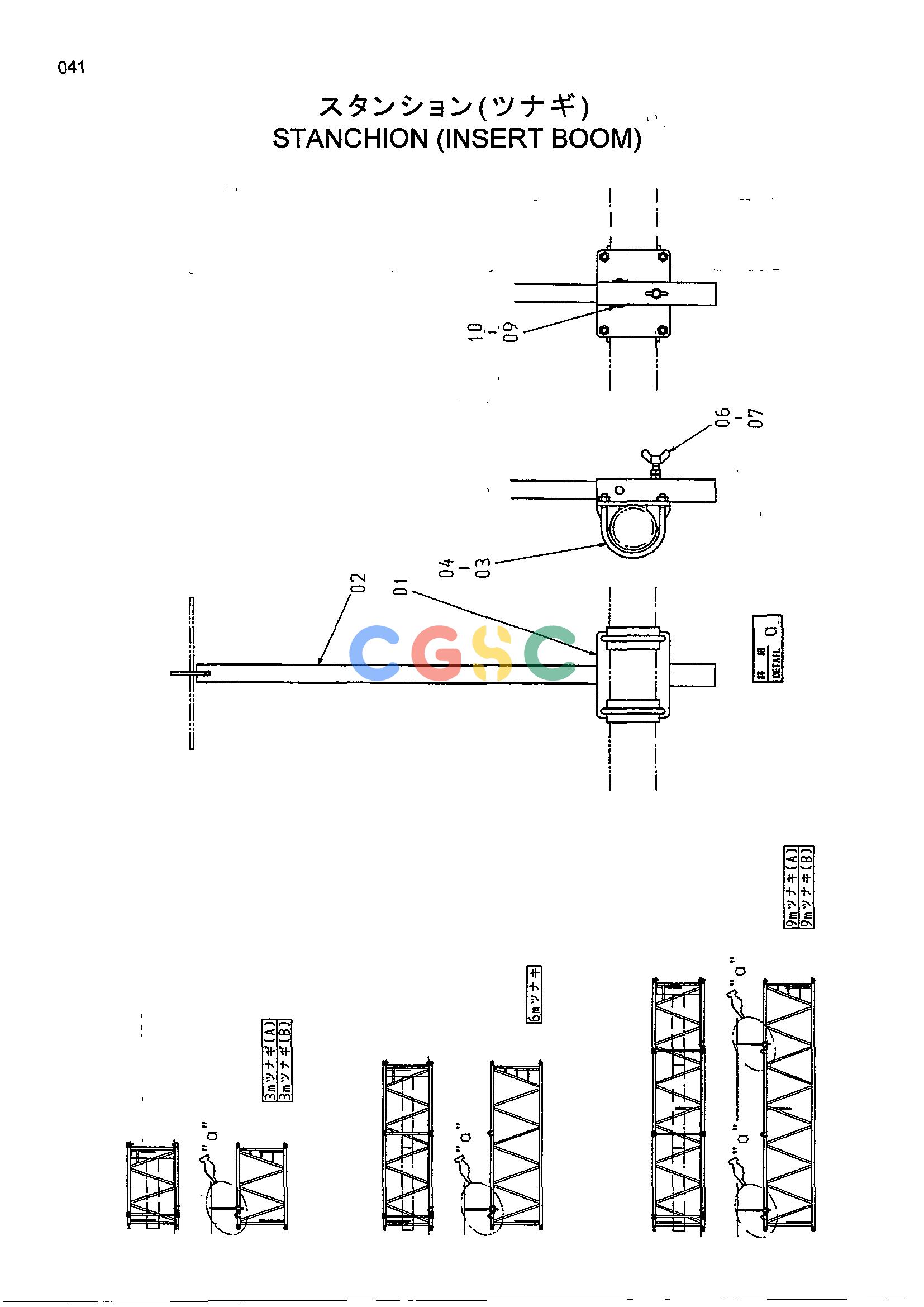

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 01. | 8071028 | [1] | BRACKET | |
| 02. | 9750680 | [1] | PAWL | |
| 03. | 9748949 | [2] | BOLT;U | |
| 04. | M660012 | [4] | NUT;U | |
| 06. | M361240 | [1] | BOLT;WING | |
| 07. | J950012 | [1] | NUT | |
| 09. | 4391713 | [1] | PIN | |
| 10. | 4022699 | [1] | PIN;LOCK |
广数供应链运营团队, 15 02月, 2025，浏览： 615 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 01. | 8071028 | [1] | BRACKET | |
| 02. | 9750680 | [1] | PAWL | |
| 03. | 9748949 | [2] | BOLT;U | |
| 04. | M660012 | [4] | NUT;U | |
| 06. | M361240 | [1] | BOLT;WING | |
| 07. | J950012 | [1] | NUT | |
| 09. | 4391713 | [1] | PIN | |
| 10. | 4022699 | [1] | PIN;LOCK |
