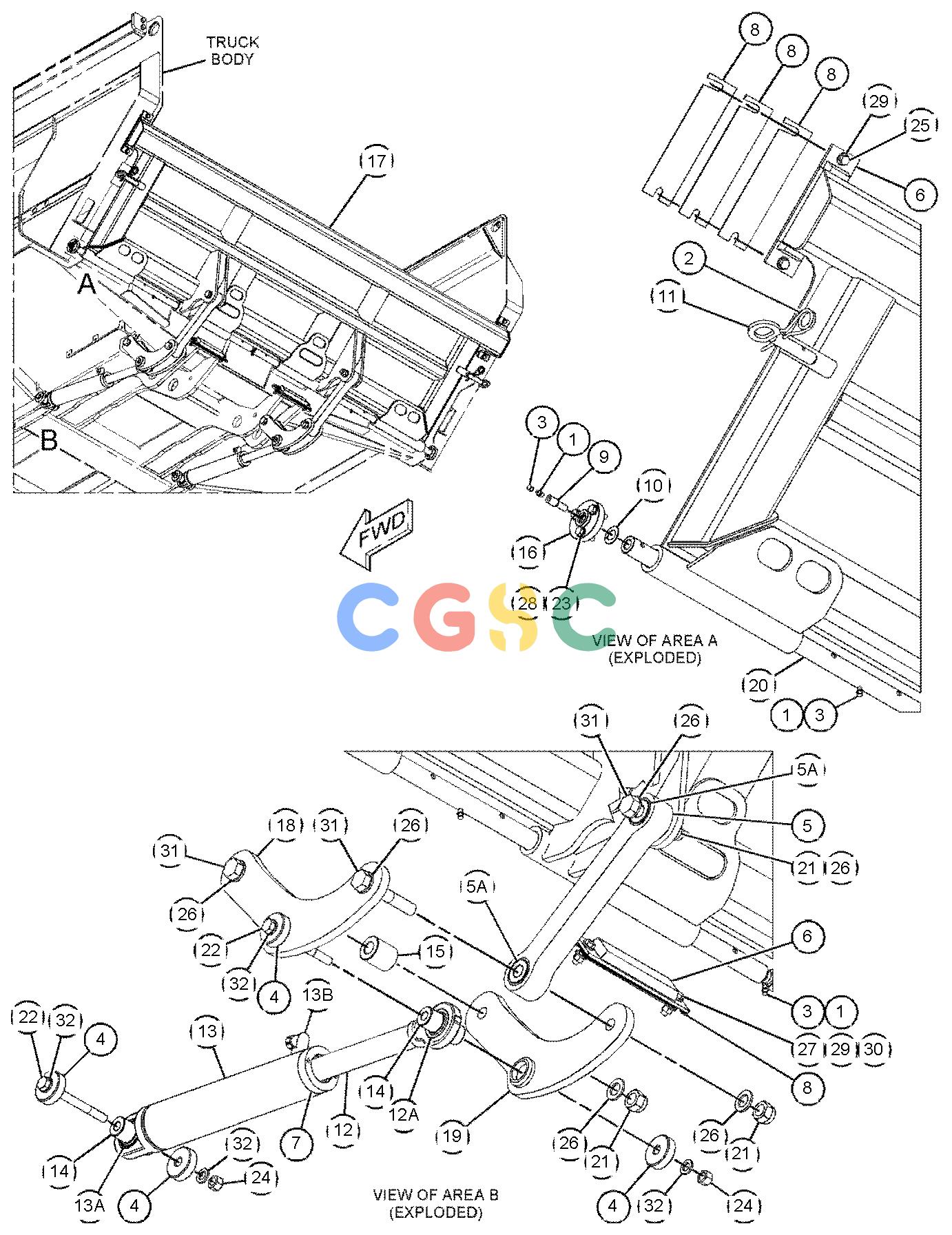

卡特零件查询（730） 393-4122: TAILGATE GP
广数供应链运营团队, 15 02月, 2025，浏览：
692 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8489 | [5] | FITTING-GREASE(1/8-27 PTF) | |
| 2. | 5U-0930 | [2] | CLIP-SPRING | |
| 3. | 5U-7151 | [5] | CAP-GREASE | |
| 4. | 7U-0887 | [8] | WASHER(17X65X20-MM THK) | |
| 5. | 144-6850 | [2] | LINK AS | |
| | | | (EACH INCLUDES) |
| 5A. | 5U-5141 | [2] | BUSHING-NYLON | |
| 6. | 154-4812 | [4] | ABSORBER-SHOCK | |
| 7. | 166-2843 | [2] | HEAD | |
| 8. | 169-4040 | [12] | SHIM(2-MM THK) | |
| 9. | 184-6337 | [2] | PIN | |
| 10. | 185-4181 | [2] | WASHER-THRUST | |
| 11. | 197-0382 | [2] | PIN AS | |
| 12. | 203-7852 | [2] | ROD AS | |
| | | | (EACH INCLUDES) |
| 12A. | 193-3857 | [1] | BEARING | |
| 13. | 236-5335 | [2] | CYLINDER AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 13A. | 193-3857 | [1] | BEARING | |
| 13B. | 214-1112 | [1] | ELBOW | |
| 14. | 261-7764 | [4] | PIN | |
| 15. | 261-7765 | [6] | PIN | |
| 16. | 262-4773 | [2] | FLANGE | |
| 17. | 393-4123 | [1] | PLATE AS-TAILGATE | |
| 18. | 393-4130 | [1] | PLATE AS(LH) | |
| 19. | 393-4131 | [1] | PLATE AS(RH) | |
| 20. | 393-4132 | [1] | TUBE AS | |
| 21. | 6V-7676M | [6] | NUT(M24X3-THD) | |
| 22. | 7X-2559M | [4] | BOLT(M16X2X160-MM) | |
| 23. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 24. | 8T-4132M | [4] | NUT(M16X2-THD) | |
| 25. | 8T-4139M | [4] | BOLT(M12X1.75X30-MM) | |
| 26. | 8T-4167 | [12] | WASHER-HARD(26X44X4-MM THK) | |
| 27. | 8T-4184M | [4] | BOLT(M12X1.75X45-MM) | |
| 28. | 8T-4196M | [6] | BOLT(M10X1.5X35-MM) | |
| 29. | 8T-4223 | [12] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 30. | 8T-4244M | [4] | NUT(M12X1.75-THD) | |
| 31. | 8T-6380M | [6] | BOLT(M24X3X130-MM) | |
| 32. | 9X-8257 | [8] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
