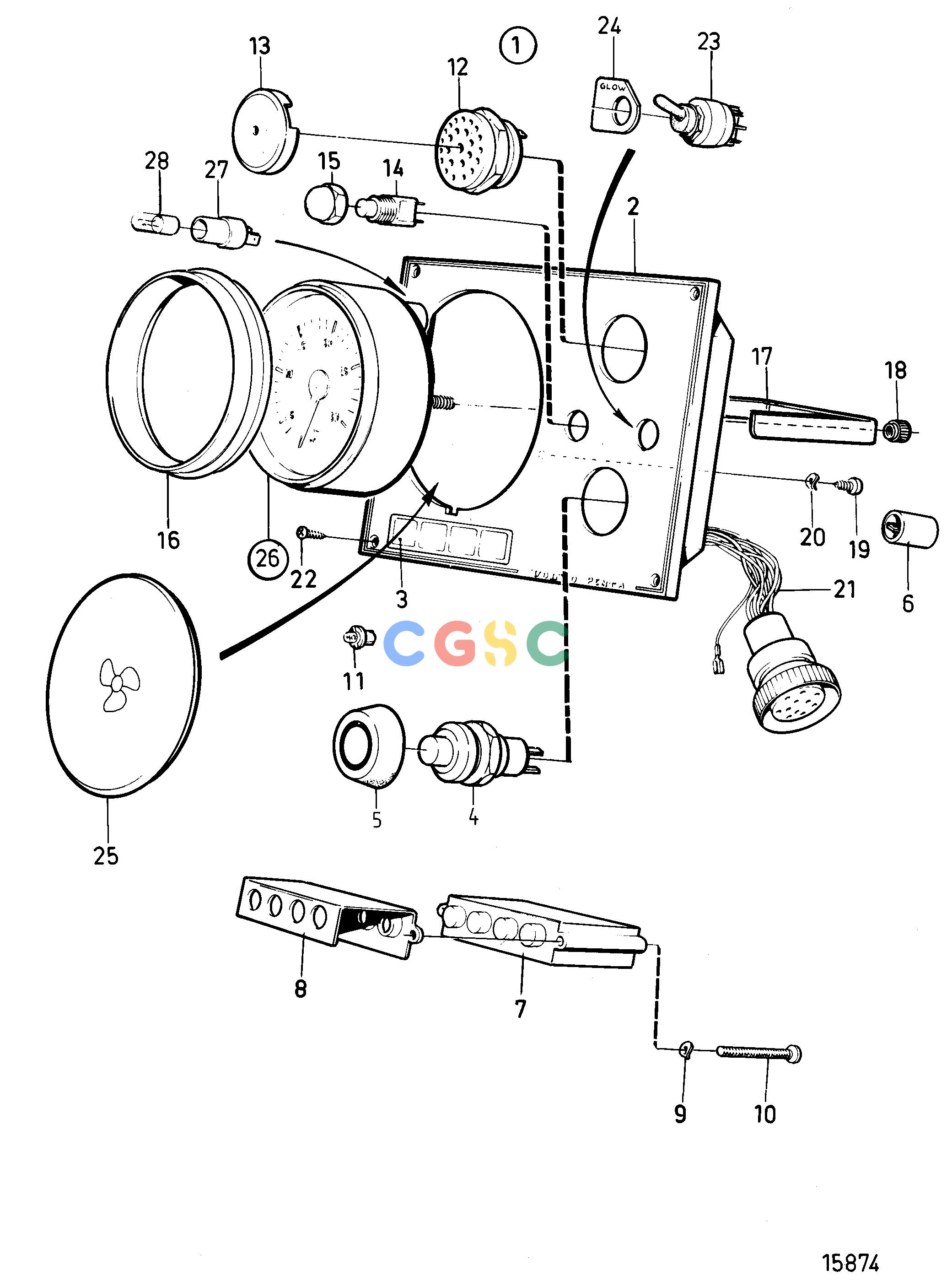

沃尔沃零件查询MD2010-C; MD2010-D; MD2020-C; MD2020-D; MD2030-C; MD2030-D; MD2040-C; MD2040-D; 120S-D; 120S-EElectrical SystemInstrument Panel Standard, with Start ButtonEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
778 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
873594
|
[1] |
Instrument panel
|
|
| 2. |
872798
|
[1] |
Instrument panel
|
|
| 3. |
858645
|
[1] |
Symbol strip
|
|
| 4. |
843684
|
[1] |
Button
|
|
| 5. |
837533
|
[1] |
Rubber cap
|
|
| 6. |
20382270
|
[1] |
Diode
|
State key code when ordering, (1624394)
|
| 7. |
873737
|
[1] |
Electronic unit
|
|
| 8. |
828784
|
[1] |
Reflector
|
|
| 9. |
941904
|
[2] |
Spring washer
|
|
| 10. |
941615
|
[2] |
Cross recessed screw
|
|
| 11. |
19923
|
[4] |
Bulb
|
12V
|
| 12. |
828587
|
[1] |
Buzzer
|
|
| 13. |
858795
|
[1] |
Protecting casing
|
|
| 14. |
828585
|
[1] |
Toggle switch
|
Instr. light
|
| 15. |
828586
|
[1] |
Nut
|
|
| 16. |
873517
|
[1] |
Ring
|
|
| 17. |
873208
|
[1] |
Brace kit
|
|
| 18. |
|
|
|
|
| 19. |
949947
|
[1] |
Cross recessed screw
|
|
| 20. |
941904
|
[1] |
Spring washer
|
|
| 21. |
873560
|
[1] |
Cable kit
|
|
| 22. |
828647
|
[4] |
Screw
|
|
| 23. |
872800
|
[1] |
Toggle switch
|
|
| 24. |
872771
|
[1] |
Decal
|
|
| 25. |
858648
|
[1] |
Closure
|
Alt
|
| 26. |
873992
|
[1] |
Tachometer kit
|
4600 rpm
|
| 27. |
863945
|
[1] |
Bulb socket
|
|
| 28. |
863946
|
[1] |
Bulb
|
12V
|
