沃尔沃零件查询MD2010-C; MD2010-D; MD2020-C; MD2020-D; MD2030-C; MD2030-D; MD2040-C; MD2040-D; 120S-D; 120S-EElectrical SystemRudder Indicator Kit for Reverse GearEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
536 次

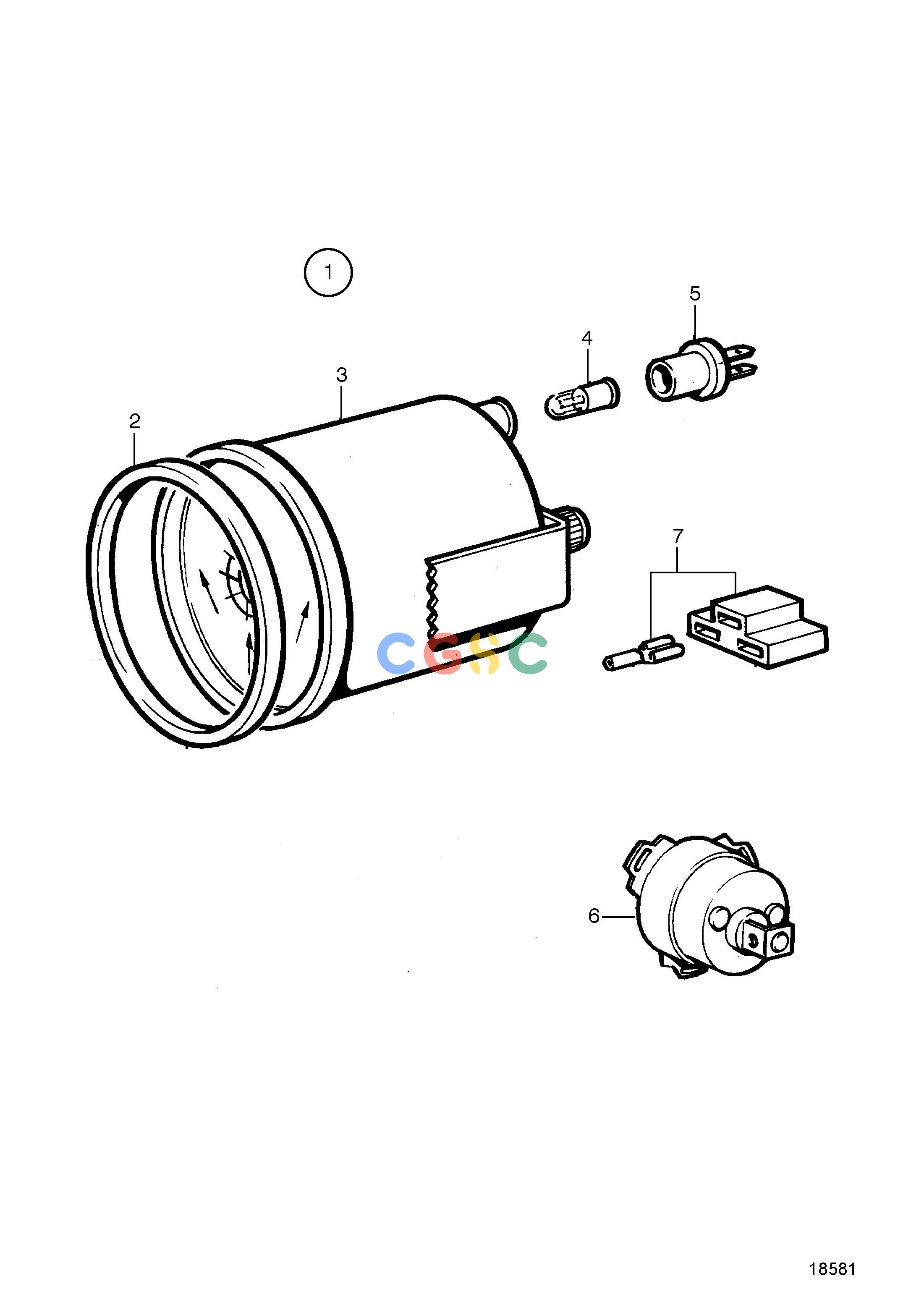

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
1140465
|
[1] |
Rudder indicator kit
|
|
| 2. |
858643
|
[1] |
Front ring
|
|
| 3. |
863944
|
[1] |
Rudder indicator
|
|
| 4. |
863946
|
[1] |
Bulb
|
|
| 5. |
863945
|
[1] |
Bulb socket
|
For instrument 828698 should white bulb 19923 and socket 808175 be mounted.
|
| 6. |
837772
|
[1] |
Position sensor
|
|
| 7. |
7740690_115
|
|
electrical materials
|
|
