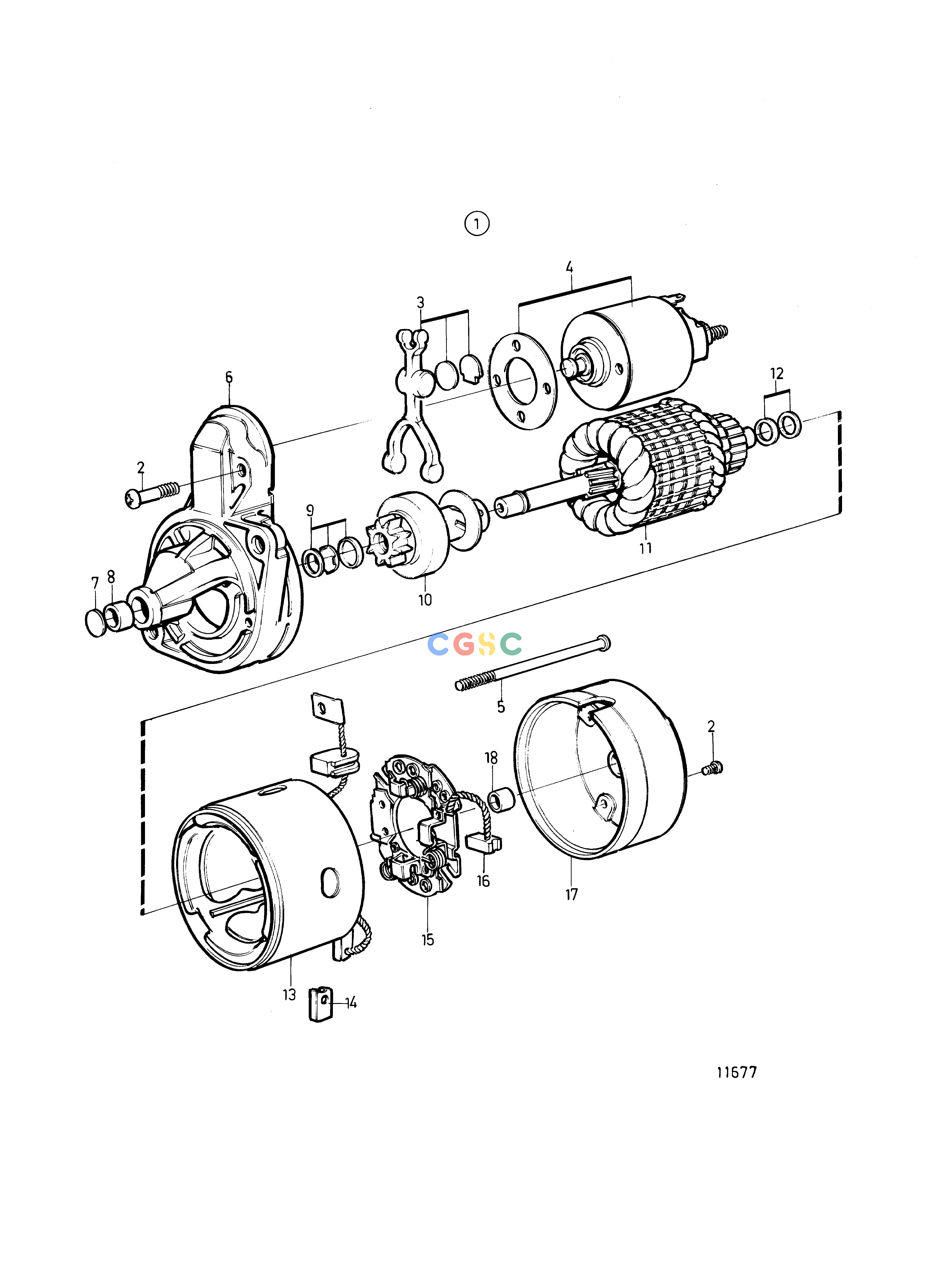

沃尔沃零件查询MD2010-C; MD2010-D; MD2020-C; MD2020-D; MD2030-C; MD2030-D; MD2040-C; MD2040-D; 120S-D; 120S-EElectrical SystemStarter Motor, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
972 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
861845
|
[1] |
Starter motor
|
|
| 2. |
3580205
|
[1] |
Screw kit
|
|
| 3. |
3580206
|
[1] |
Engagement lever
|
|
| 4. |
3580207
|
[1] |
Actuator solenoid
|
|
| 5. |
|
|
|
|
| 6. |
|
|
|
|
| 7. |
|
|
|
|
| 8. |
3580210
|
[1] |
Bushing
|
|
| 9. |
3580211
|
[1] |
Pinion stop
|
|
| 10. |
3580212
|
[1] |
Starter pinion
|
|
| 11. |
|
|
|
|
| 12. |
3580214
|
[1] |
Washer kit
|
|
| 13. |
|
|
|
|
| 14. |
3580216
|
[2] |
Carbon brush
|
|
| 15. |
3580217
|
[1] |
Brush retainer plate
|
|
| 16. |
3580219
|
[1] |
Carbon brush
|
|
| 17. |
|
|
|
|
| 18. |
3580221
|
[1] |
Bushing
|
|
