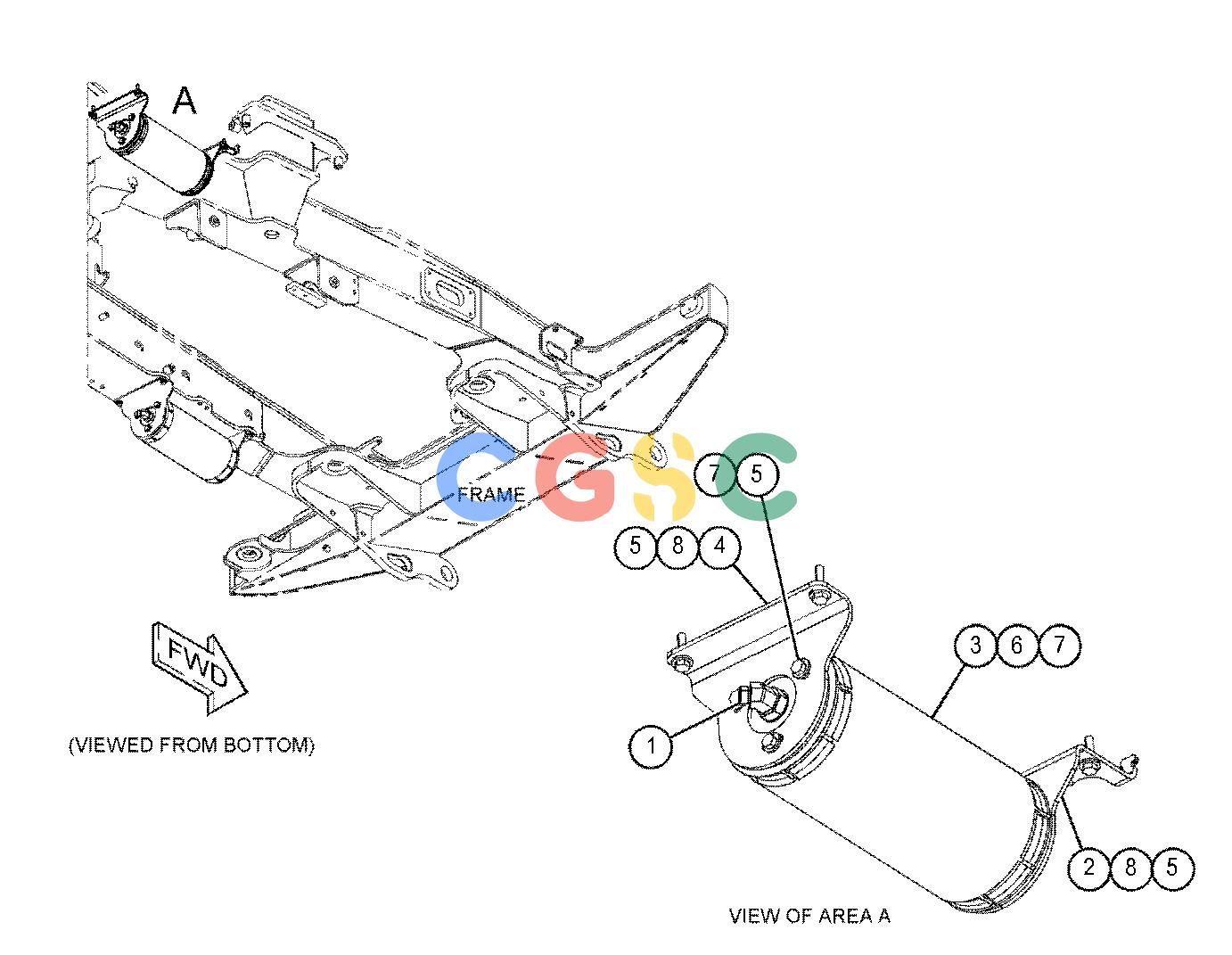

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 155-6258 | [1] | ELBOW AS | |
| 3D-2824 | [1] | SEAL-O-RING | ||
| 6V-8398 | [1] | SEAL-O-RING | ||
| 127-1647 | [1] | ELBOW | ||
| 2. | 518-9692 | [1] | BRACKET AS | |
| 3. | 519-2262Y | [1] | ACCUMULATOR GP-HYDRAULIC | |
| 4. | 549-6800 | [1] | BRACKET | |
| 5. | 7X-7729 | [7] | WASHER(11X25X3-MM THK) | |
| 6. | 8T-4121 | [3] | WASHER-HARD(11X21X2.5-MM THK) | |
| 7. | 8T-4136M | [6] | BOLT(M10X1.5X25-MM) | |
| 8. | 8T-4186M | [4] | BOLT(M10X1.5X40-MM) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
