日立零件查询（CX1000-C）STARTER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
698 次

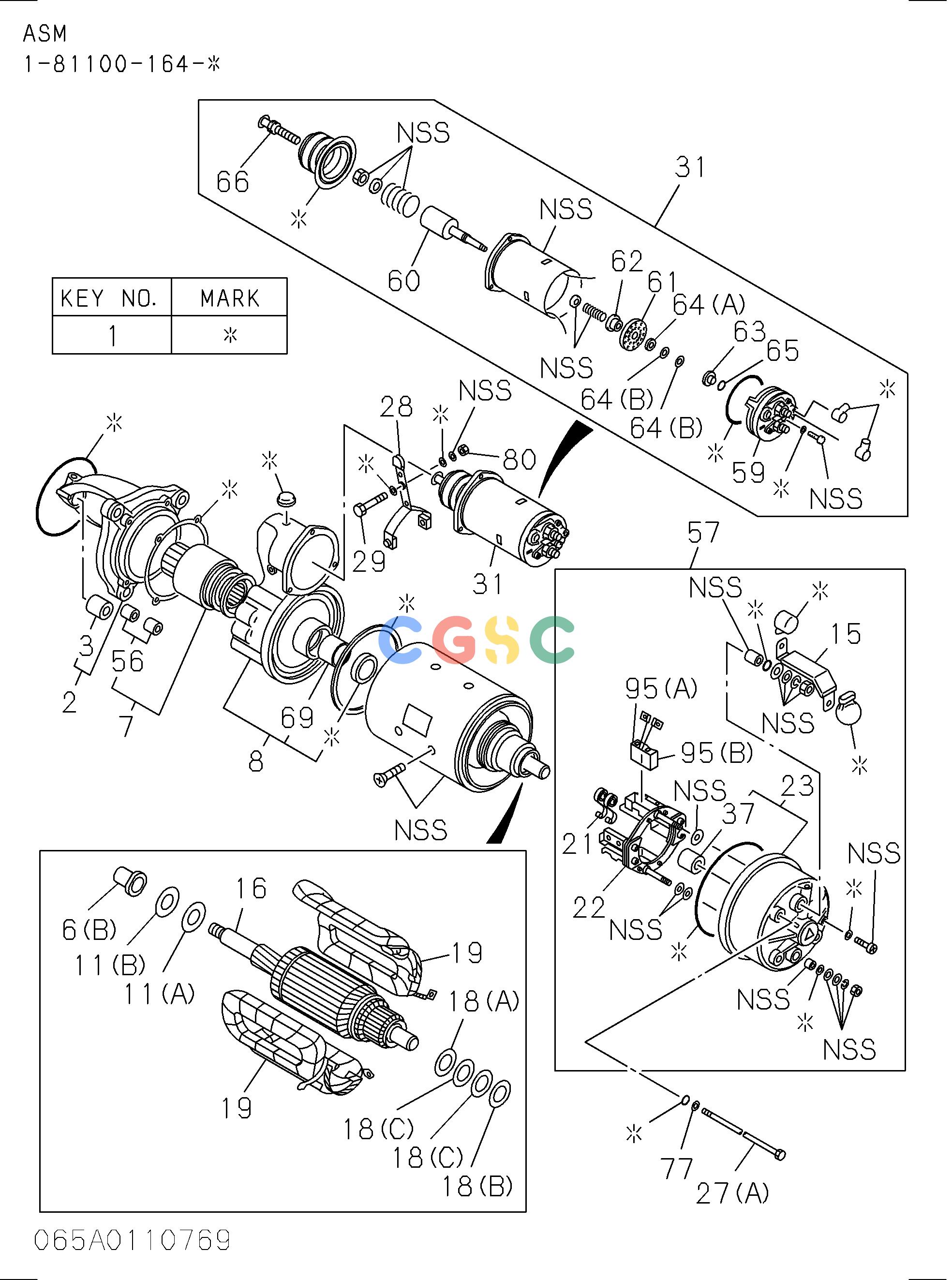

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 002. | 1811140260 | [1] | CASE; PINION,STARTER | |
| 002. | 1811140210 | [1] | CASE; PINION,STARTER | |
| 003. | 1811292250 | [1] | METAL; PINION CASE STARTER | |
| 007. | 1811230190 | [1] | CLUTCH ASM; PINION,STARTER | |
| 007. | 1811230110 | [1] | CLUTCH ASM; PINION,STARTER | |
| 008. | 1811292230 | [1] | BRACKET; CENTER STARTER | |
| 008. | 1811293800 | [1] | BRACKET; CENTER STARTER | |
| 009. | 1811292220 | [1] | BEARING; GEAR SHAFT STARTER | |
| 010. | 1811292210 | [1] | SHAFT; GEAR STARTER | |
| 011. | 1811292140 | [1] | WASHER; GEAR SHAFT STARTER | |
| 012. | 1811292240 | [1] | BRACKET; CENTER RR STARTER | |
| 016. | 1811210281 | [1] | ARMATURE; STARTER | |
| 017. | 1811292130 | [1] | BEARING; ARMATURE,STARTER | |
| 019. | 1811120220 | [1] | COIL; FIELD,STARTER | |
| 021. | 1811292170 | [4] | SPRING; BRUSH HOLDER STARTER | |
| 022. | 1811180230 | [1] | HOLDER; BRUSH STARTER | |
| 023. | 1811150280 | [1] | COVER; RR COVER STARTER | |
| 027. | 1811292320 | [2] | BOLT; THROUGH,STARTER | |
| 027. | 1811293070 | [4] | BOLT; THROUGH,STARTER | |
| 027. | 1811292330 | [4] | BOLT; THROUGH,STARTER | |
| 028. | 1811292260 | [1] | LEVER; SHIFT,STARTER | |
| 031. | 1811510620 | [1] | SWITCH; ENGAGE STARTER | |
| 031. | 1811511060 | [1] | SWITCH; ENGAGE STARTER | |
| 032. | 1811293060 | [1] | COVER; RUBBER,STARTER | |
| 032. | 1811292270 | [1] | COVER; RUBBER,STARTER | |
| 037. | 1811292160 | [1] | METAL; RR COVER STARTER | |
| 058. | 1811291770 | [1] | PIPE; DRAIN RR,COVER STARTER | |
| 071. | 1811291650 | [1] | SPRING; BUFFER STARTER | |
| 072. | 1811291660 | [1] | CLIP; BUFFER SPRING STARTER | |
| 073. | 1811293750 | [1] | STOPPER SET; PINION | |
| 077. | 1811292310 | [2] | WASHER; THROUGH BOLT,STARTER | |
| 082. | 1811291640 | [1] | COVER; DUST ENGAGE SW STARTER | |
| 083. | 1811292180 | [1] | COVER; DUST,CASE | |
| 095. | 1811160270 | [2] | BRUSH ASM; STARTER | (+) |
| 095. | 1811160280 | [2] | BRUSH ASM; STARTER | (-) |
