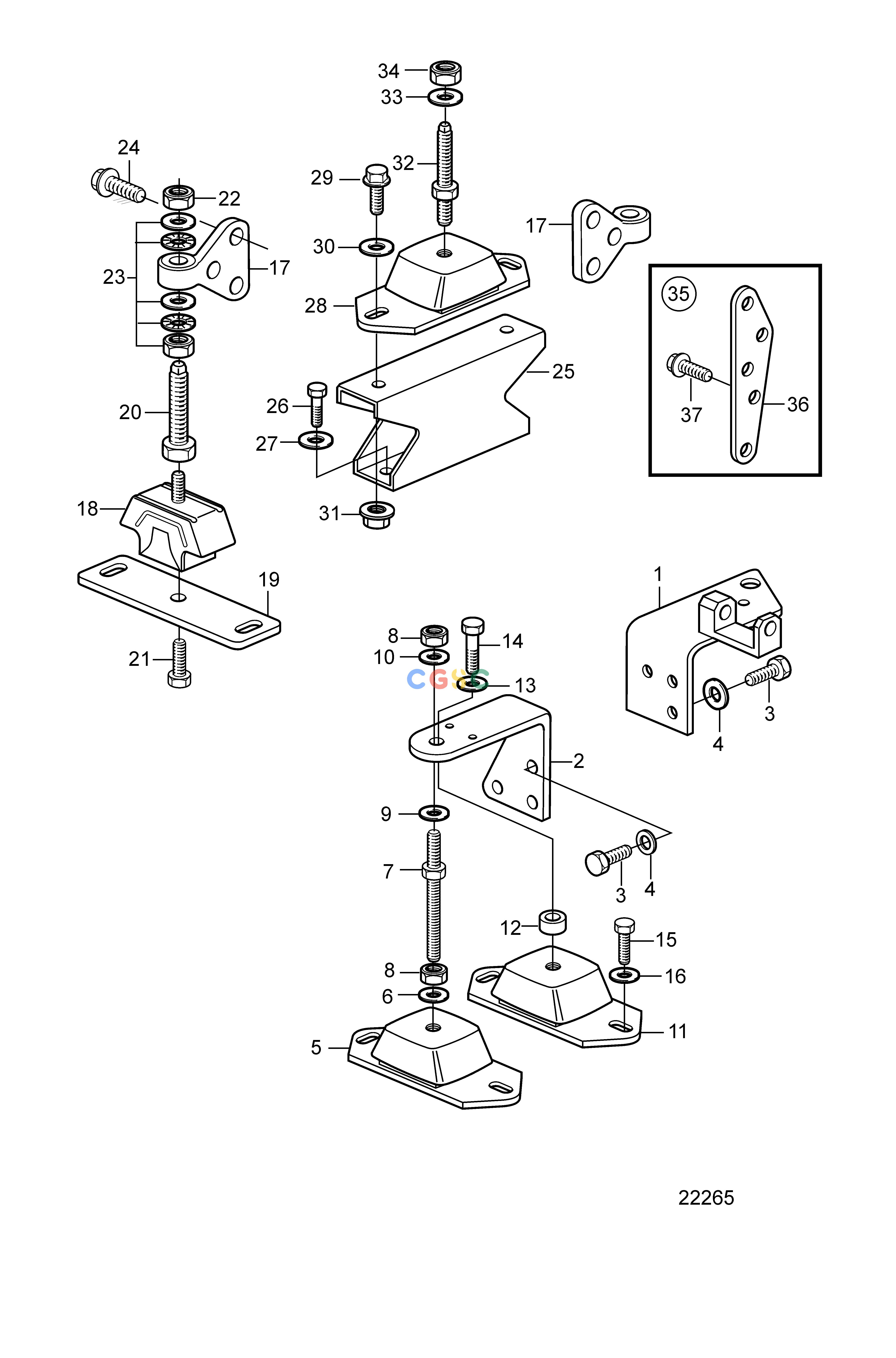

沃尔沃零件查询MD2010-C; MD2010-D; MD2020-C; MD2020-D; MD2030-C; MD2030-D; MD2040-C; MD2040-D; 120S-D; 120S-EEngineEngine Mounting: MS2L-E, MS2A-EEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
728 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3581319
|
[1] |
Engine anchorage, front
|
P
|
| 2. |
3580603
|
[1] |
Stay, front
|
S.B
|
| 3. |
3580605
|
[6] |
Screw
|
|
| 4. |
3580607
|
[6] |
Spring washer
|
|
| 5. |
861460
|
[2] |
Rubber cushion
|
|
| 6. |
955900
|
[2] |
Washer
|
|
| 7. |
861431
|
[2] |
Adjusting screw
|
|
| 8. |
955821
|
[4] |
Hexagon nut
|
|
| 9. |
955900
|
[2] |
Washer
|
|
| 10. |
941912
|
[2] |
Spring washer
|
|
| 17. |
861314
|
[2] |
Engine bracket, rear
|
|
| 18. |
838262
|
[2] |
Rubber element
|
|
| 19. |
838263
|
[2] |
Attaching plate
|
|
| 20. |
838264
|
[2] |
Adjusting bolt
|
|
| 21. |
949149
|
[2] |
Hex. socket screw
|
|
| 22. |
955806
|
[4] |
Hexagon nut
|
|
| 23. |
829893
|
[8] |
Lock washer
|
|
| 24. |
965185
|
[6] |
Flange screw
|
|
| 35. |
858566
|
[1] |
Bracket kit
|
For deep engine installation.
|
| 36. |
858550
|
[1] |
Anchorage, rear
|
For deep engine installation., P
|
| 36. |
858551
|
[1] |
Anchorage, rear
|
For deep engine installation., S.B
|
| 37. |
970948
|
[4] |
Hexagon screw
|
L=30mm
|
| 37. |
965185
|
[4] |
Flange screw
|
L=40mm (970950)
|
| 37. |
970954
|
[2] |
Hexagon screw
|
L=60mm
|
