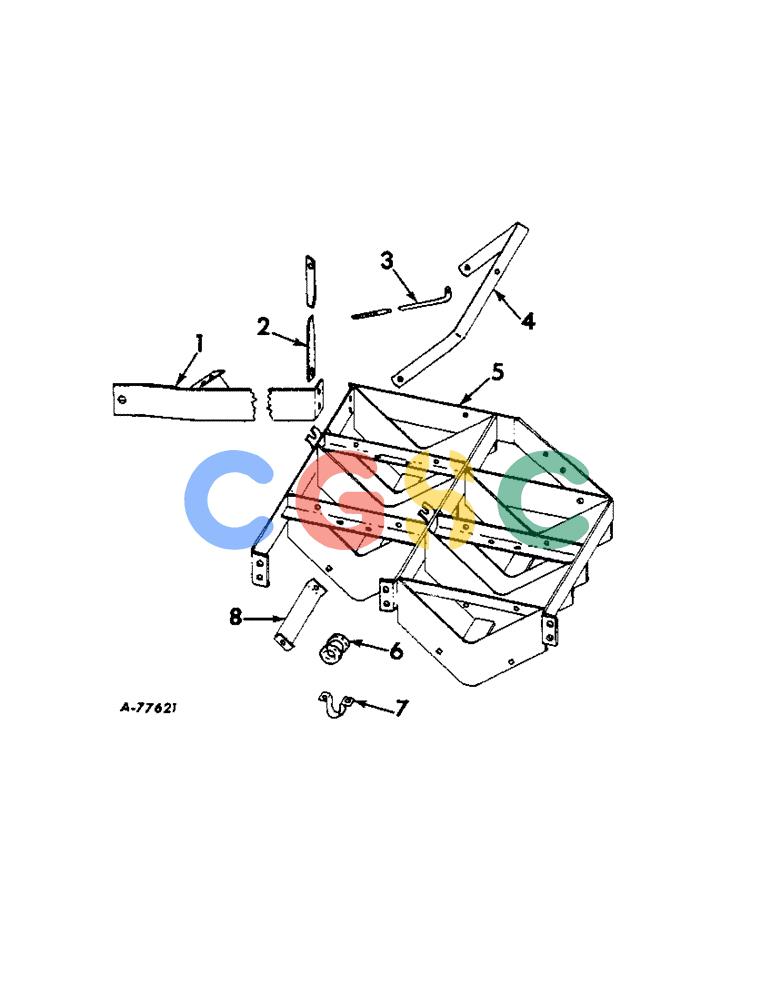

凯斯零件查询(57) - INTERNATIONAL HARVESTER RECTANGULAR BALER (1/57-12/72) (A-28[A]) - FOUR COIL WIRE CAN Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
805 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
668678R91
|
[1] |
|
P
BRACKET ASSY, wire container support
|
| 2. |
668680R1
|
[1] |
|
P
STRAP, wire container support
|
| 3. |
667858R1
|
[2] |
ROD
|
IH
retainer
|
| . . |
103373
|
[2] |
COTTER PIN,3/32" x 3/4"
|
IH
Pin, Split (Cotter), 3/32" x 3/4" Superseded by part number: 32-612
|
| . . |
Q397
|
[2] |
WASHER
|
IH
11/32 x 3/4 x 16 ga Superseded by part number: 95-81069
|
| 4. |
668677R1
|
[2] |
|
P
STRAP, retainer
|
| . . |
432-68
|
[4] |
COTTER PIN,3/32" x 1/2"
|
CAS
Pin, Split (Cotter), 3/32" x 1/2" Superseded by part number: 88788
|
| . . |
625891R1
|
[4] |
PIN,1/4" x 5/8"
|
IH
1/4 x 5/8 std-hd Superseded by part number: Q1284
|
| . . |
97865H
|
[5] |
WASHER
|
IH
9/32 x 7/8 x 16 ga Superseded by part number: 195-102, 495-21031
|
| 5. |
668674R91
|
[1] |
|
P
CONTAINER ASSY, four coil wire
|
| 6. |
11833PB
|
[3] |
GUIDE
|
IH
wire Superseded by part number: 1344948C1
|
| 7. |
11792P
|
[3] |
HOLDER
|
IH
wire guide
|
| 8. |
667859R1
|
[8] |
PLATE
|
IH
coil support
|
