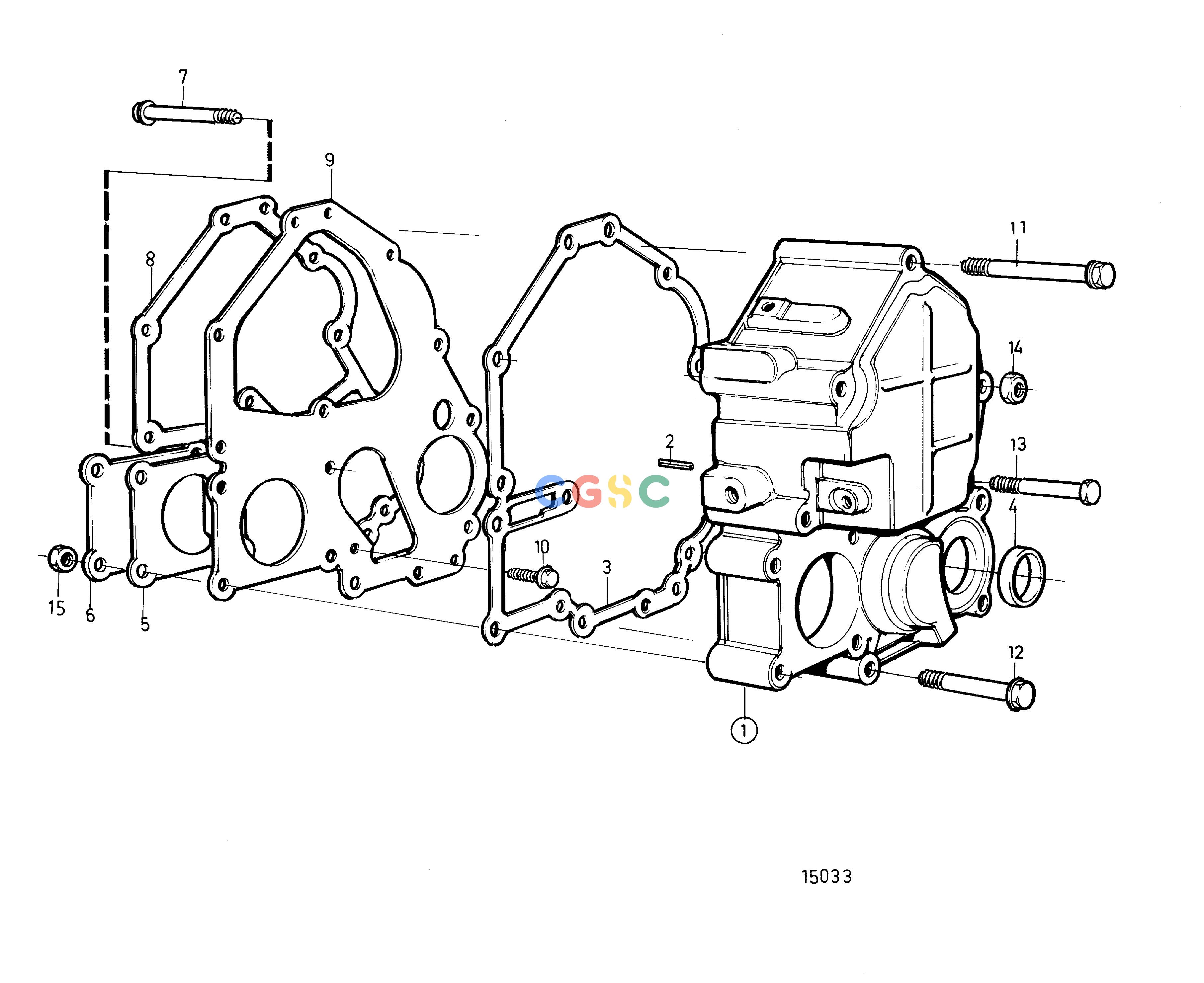

沃尔沃零件查询MD2010-C; MD2010-D; MD2020-C; MD2020-D; MD2030-C; MD2030-D; MD2040-C; MD2040-D; 120S-D; 120S-EEngineTiming Gear HousingEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
839 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3580023
|
[1] |
Timing gear casing
|
|
| 2. |
3580024
|
[1] |
Clamping pin
|
|
| 3. |
3580025
|
[1] |
Gasket
|
|
| 4. |
3580026
|
[1] |
Sealing ring
|
|
| 5. |
3580060
|
[1] |
Gasket
|
|
| 6. |
3580059
|
[1] |
Cap
|
|
| 7. |
965216
|
[2] |
Flange screw
|
(3580052)
|
| 8. |
861536
|
[1] |
Gasket
|
|
| 9. |
861535
|
[1] |
Front plate
|
|
| 10. |
967949
|
[3] |
Flange screw
|
|
| 11. |
861899
|
[2] |
Screw
|
|
| 12. |
3580053
|
[4] |
Screw
|
|
| 13. |
965178
|
[2] |
Flange screw
|
(3580054)
|
| 14. |
945407
|
[1] |
Flange nut
|
|
| 15. |
948645
|
[2] |
Flange lock nut
|
|
| 15. |
|
|
|
|
