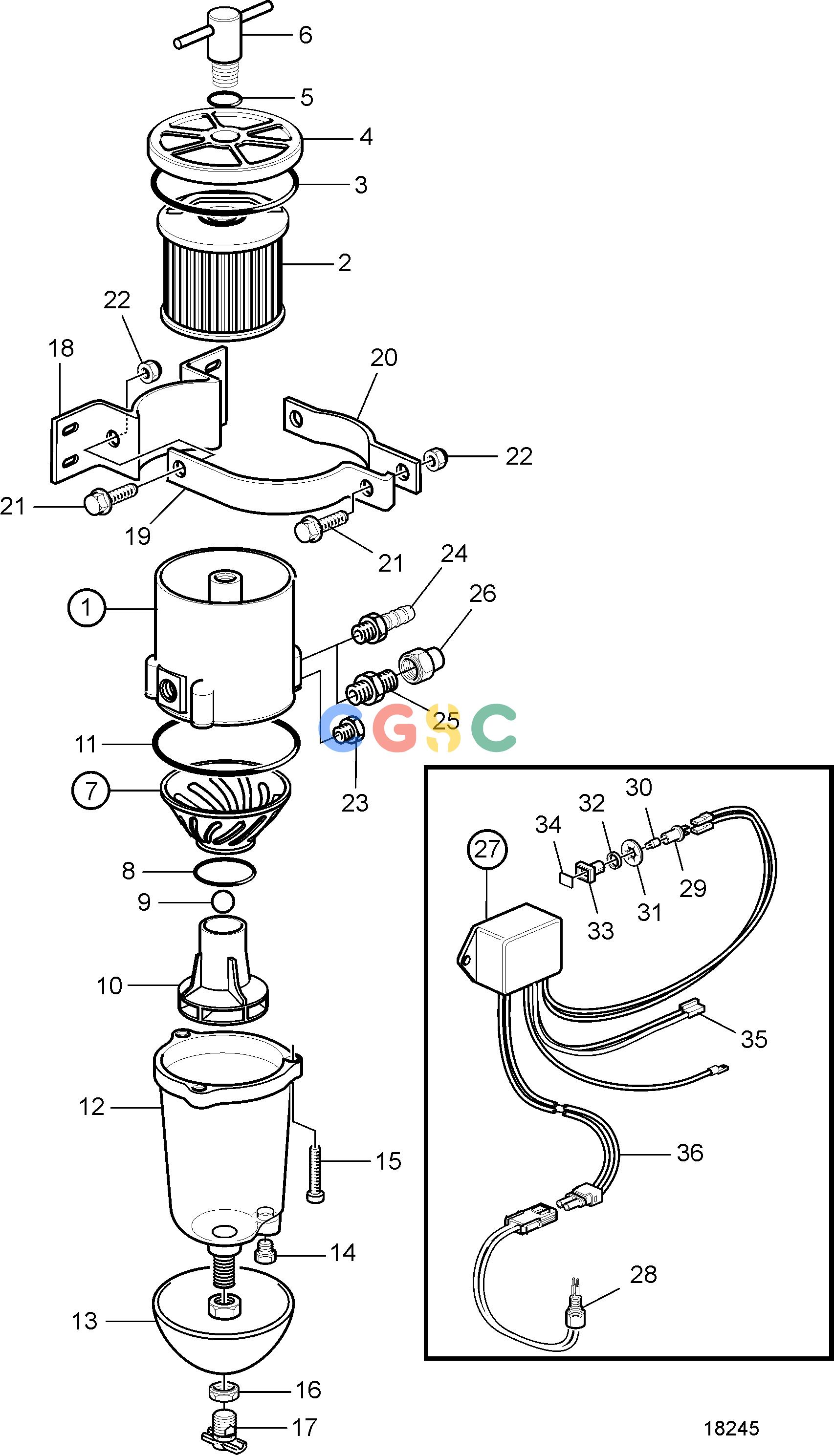

沃尔沃零件查询MD2010-C; MD2010-D; MD2020-C; MD2020-D; MD2030-C; MD2030-D; MD2040-C; MD2040-D; 120S-D; 120S-EFuel SystemFuel Filter and Water Separator, RINA-approvedEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
1009 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3582350
|
[1] |
Fuel filter
|
Repl by 877763.
|
| 1. |
877763
|
[1] |
Fuel filter
|
|
| 2. |
861014
|
[1] |
Insert
|
|
| 3. |
838504
|
[1] |
Gasket
|
|
| 4. |
|
|
|
|
| 5. |
838505
|
[1] |
O-ring
|
|
| 6. |
|
|
|
|
| 7. |
861455
|
[1] |
O-ring
|
|
| 8. |
|
|
|
|
| 9. |
|
|
|
|
| 10. |
|
|
|
|
| 11. |
3838861
|
[1] |
Gasket
|
(838502)
|
| 12. |
3838849
|
[1] |
Bowl
|
|
| 13. |
|
|
|
|
| 14. |
|
|
|
|
| 15. |
950024
|
[4] |
Cross recessed screw
|
|
| 16. |
861459
|
[2] |
Nut
|
|
| 17. |
861458
|
[1] |
Faucet
|
|
| 18. |
|
|
|
|
| 19. |
|
|
|
|
| 20. |
|
|
|
|
| 21. |
|
|
|
|
| 22. |
|
|
|
|
| 23. |
|
|
|
|
| 24. |
3825000
|
[1] |
Hose nipple
|
(834781)
|
| 25. |
954337
|
[1] |
Nipple
|
|
| 26. |
954323
|
[1] |
Fitting nut
|
|
| 27. |
1140724
|
[1] |
Level guard
|
(1140609)
|
| 28. |
3588916
|
[1] |
Alarm kit
|
|
| 29. |
808175
|
[1] |
Bulb socket
|
|
| 30. |
19923
|
[1] |
Bulb
|
12V, 2W
|
| 30. |
182059
|
[1] |
Bulb
|
24V, 3W
|
| 31. |
967583
|
[1] |
Retainer
|
|
| 32. |
829714
|
[1] |
Sealing ring
|
|
| 33. |
838455
|
[1] |
Retainer
|
|
| 34. |
872591
|
[1] |
Symbol strip
|
|
| 35. |
7740690_114
|
|
cables and terminals
|
|
| 36. |
881774
|
[1] |
Cable harness
|
|
