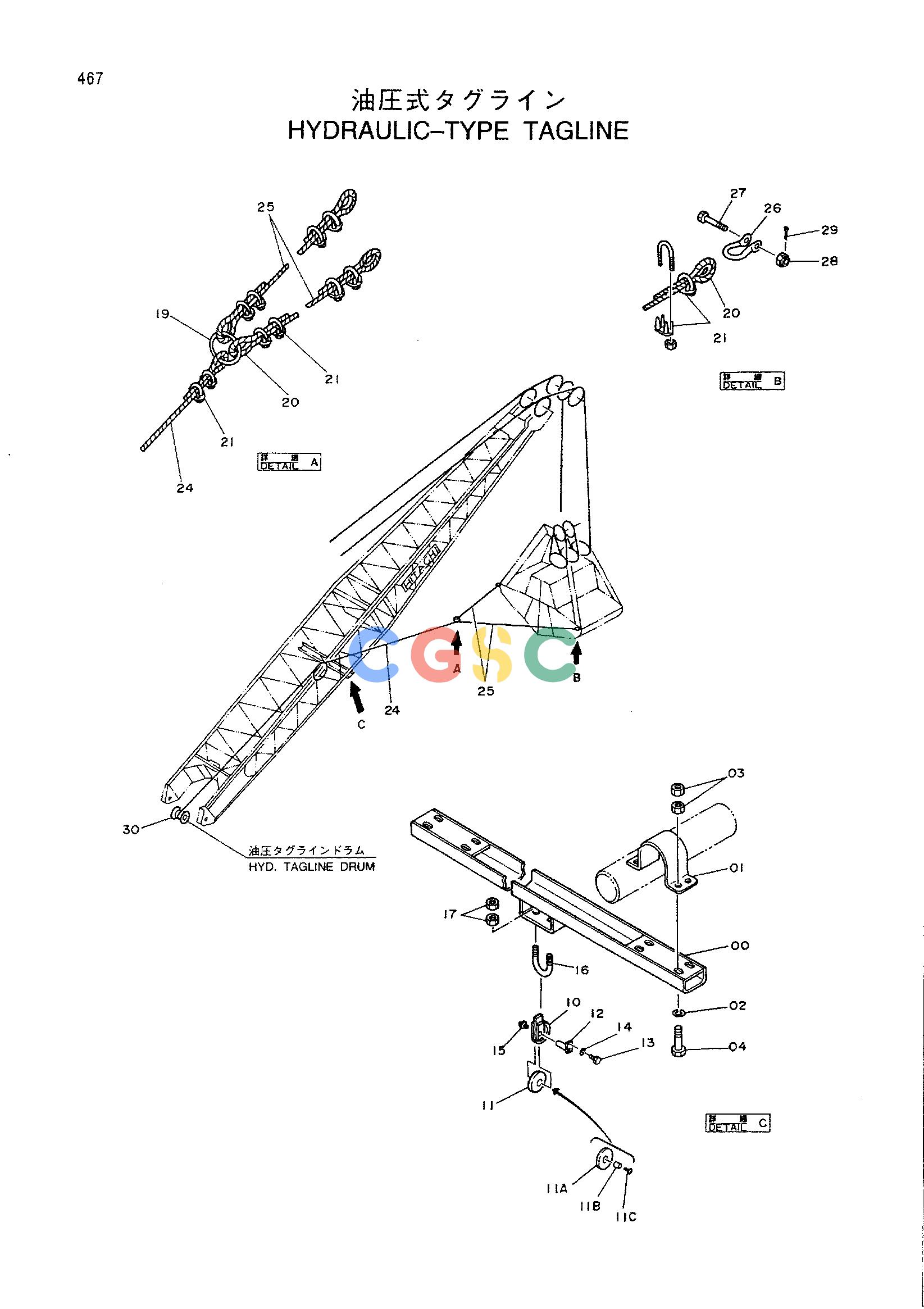

日立零件查询（CX1100）HYDRAULIC-TYPE TAGLINE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
391 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 8055678 | [1] | BRACKET | |
| 01. | 4190913 | [2] | CLAMP | |
| 02. | 449490 | [8] | WASHER | |
| 03. | J950012 | [16] | NUT | |
| 04. | J901200 | [8] | BOLT | |
| 10. | 810595 | [1] | HANGER | |
| 11. | 991873 | [1] | SHEAVE | 130ｼ-ﾌﾞ |
| 11A. | 41772 | [1] | SHEAVE | |
| 11B. | X4431 | [1] | BUSHING | |
| 11C. | M450406 | [1] | SCREW;SET | |
| 12. | 991564 | [1] | AXLE | |
| 13. | J900814 | [1] | BOLT | |
| 14. | A590908 | [1] | WASHER;SPRING | |
| 15. | J75682 | [1] | FITTING;GREASE | |
| 16. | 4243454 | [1] | BOLT;U | |
| 17. | J951020 | [4] | NUT | |
| 19. | 4048926 | [1] | JOINT | |
| 20. | 94-4003 | [2] | THIMBLE | |
| 21. | 94-2902 | [10] | CLIP;ROPE | |
| 24. | 4130014 | [1] | ROPE;WIRE | |
| 25. | 4080042 | [2] | ROPE;WIRE | |
| 26. | 485091 | [2] | SHACKLE | |
| 27. | 490451 | [2] | BOLT | |
| 28. | M632022 | [2] | NUT;CASTLE | |
| 29. | A764040 | [2] | PIN;SPLIT | |
| 30. | 439213 | [1] | WEDGE | |
