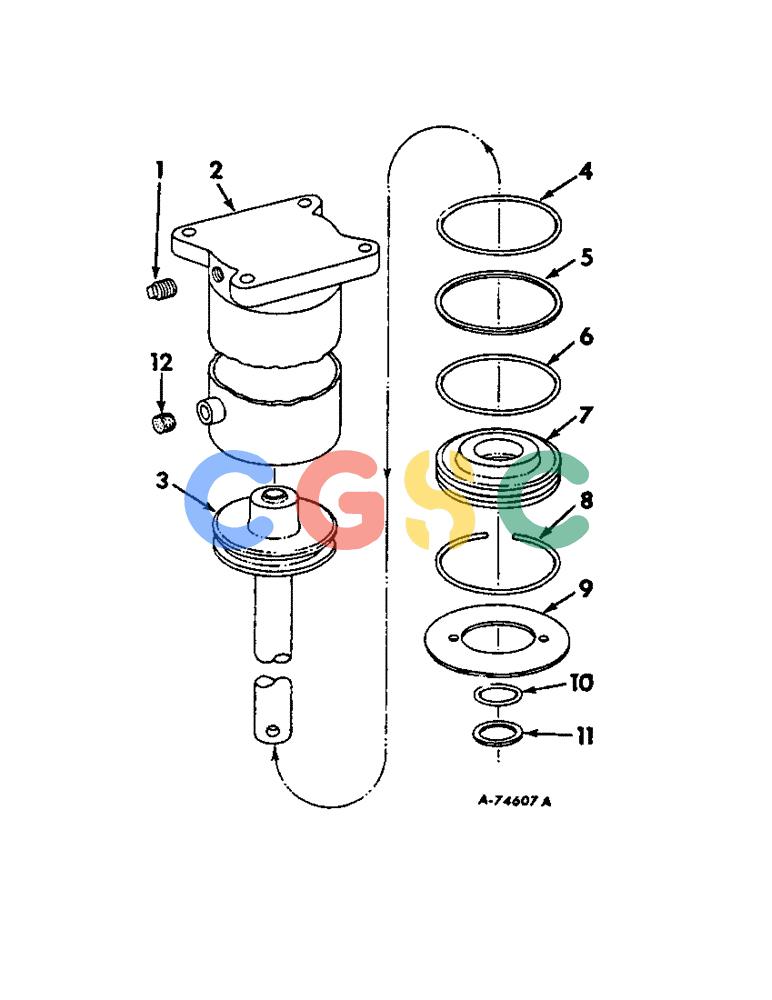

凯斯零件查询(57) - INTERNATIONAL HARVESTER RECTANGULAR BALER (1/57-12/72) (A-45) - HYDRAULIC BALE TENSION DEVICE, HYDRAULIC JACK Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
653 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
963236R91
|
[1] |
|
P
JACK ASSY, hydraulic
|
| 1. |
217-459
|
[1] |
DRAIN PLUG,Sq Soc, 1/4" - 18 NPTF
|
CAS
1/4-18 automotive hex-soc-hd drain
|
| 3. |
963237R91
|
[1] |
|
P
ROD ASSY, piston
|
| 4. |
963238R1
|
[1] |
GASKET
|
IH
O-RING, 2-7/8 x 3-1/4 x 3/16
|
| 5. |
963239R1
|
[1] |
|
P
WASHER, backup
|
| 6. |
259252R1
|
[1] |
O-RING
|
IH
3 x 3-1/4 x 1/8 Superseded by part number: 238-5234
|
| 7. |
659555R1
|
[1] |
|
P
BEARING
|
| 8. |
659559R1
|
[1] |
|
P
RING, lock
|
| 9. |
659554R1
|
[1] |
PLATE
|
IH
end
|
| 10. |
659558R1
|
[1] |
O-RING,1.046" ID x 0.139" Width
|
IH
1 x 1-1/4 x 1
|
| 11. |
659556R1
|
[1] |
WASHER
|
IH
backup Superseded by part number: A35899
|
| . . |
110500
|
[2] |
SCREW,Slotted Rd Hd, #10-24 x 1/2"
|
IH
10-24 x 1/2 slt-rd-hd mach hex-soc Superseded by part number: 159920
|
| 12. |
659553R1
|
[1] |
PLUG
|
IH
filter
|
