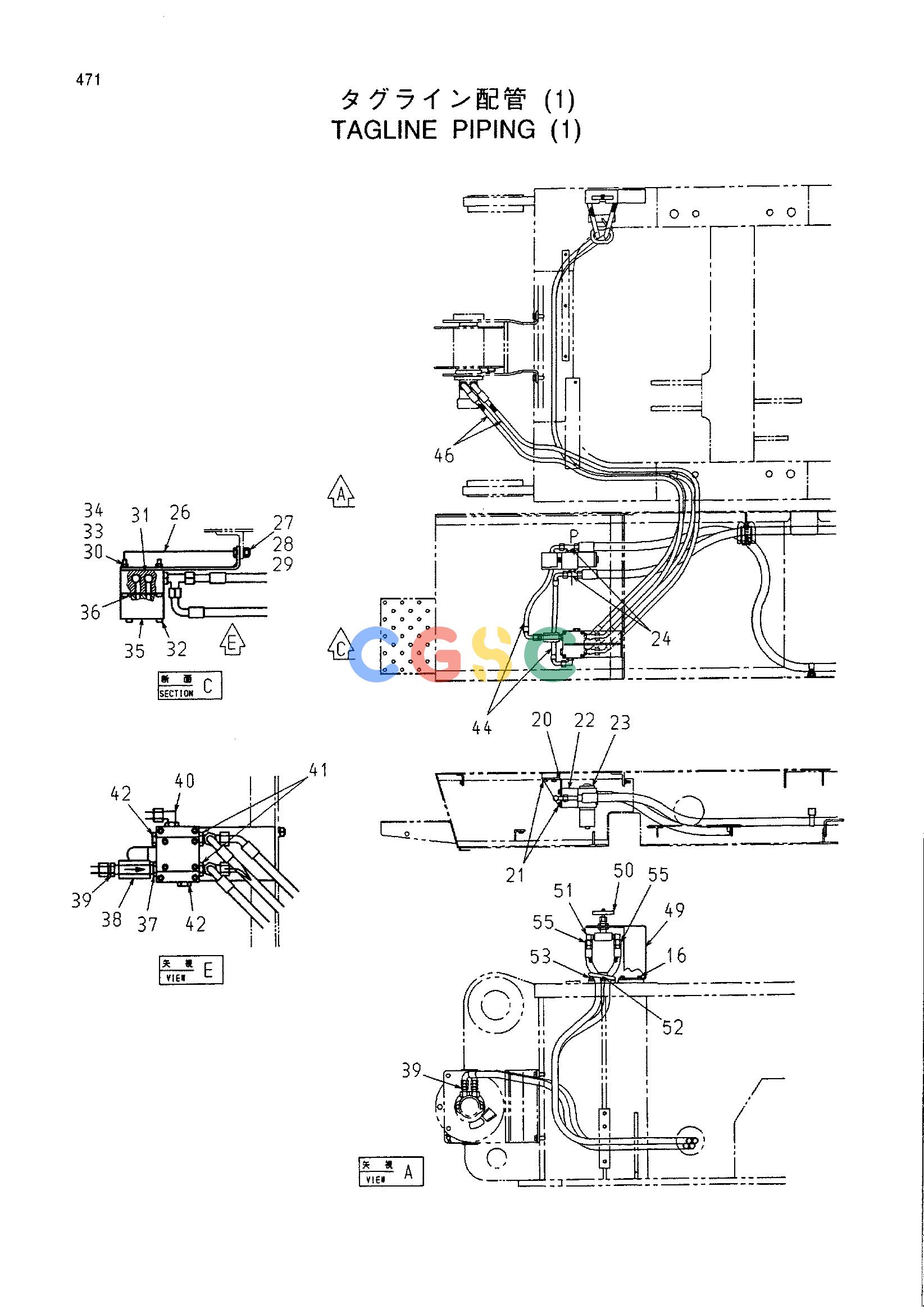

日立零件查询（CX1100）TAGLINE PIPING (1) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
486 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 16. | J011025 | [2] | BOLT;SEMS | |
| 20. | 8071612 | [1] | BRACKET | |
| 21. | J011225 | [4] | BOLT;SEMS | |
| 22. | 3070573 | [1] | MANIFOLD | |
| 23. | 4361100 | [1] | VALVE;SOLENOID | |
| 24. | A852544 | [2] | TEE;S | |
| 24A. | 4506418 | [1] | O-RING | |
| 26. | 9725556 | [1] | BRACKET | |
| 27. | J901230 | [2] | BOLT | |
| 28. | A590912 | [2] | WASHER;SPRING | |
| 29. | J950012 | [2] | NUT | |
| 30. | M340880 | [4] | BOLT;SOCKET | |
| 31. | 2042187 | [1] | MANIFOLD | |
| 32. | M340871 | [4] | BOLT;SOCKET | |
| 33. | A590908 | [4] | WASHER;SPRING | |
| 34. | J950008 | [4] | NUT | |
| 35. | 4146469 | [1] | VALVE;RELIEF | |
| 36. | 4509180 | [2] | O-RING | |
| 37. | 4234652 | [1] | ADAPTER;S | |
| 37A. | 4506418 | [1] | O-RING | |
| 38. | 4163092 | [1] | VALVE;CHECK | |
| 39. | 4221287 | [3] | ADAPTER;S | |
| 40. | 4154672 | [1] | ELBOW;S | |
| 40A. | 4506418 | [1] | O-RING | |
| 41. | 4217343 | [2] | TEE;S | |
| 41A. | 4506418 | [1] | O-RING | |
| 42. | 4174541 | [2] | PLUG | |
| 42A. | 4506418 | [1] | O-RING | |
| 44. | 4398980 | [2] | HOSE | |
| 46. | 4398981 | [2] | HOSE | |
| 49. | 8067435 | [1] | BRACKET | |
| 50. | 4023814 | [1] | VALVE | |
| 51. | 4154658 | [2] | ELBOW;S | |
| 52. | 8030482 | [1] | SUPPORT | |
| 53. | J011018 | [2] | BOLT;SEMS | |
| 55. | 4398707 | [2] | HOSE | |
