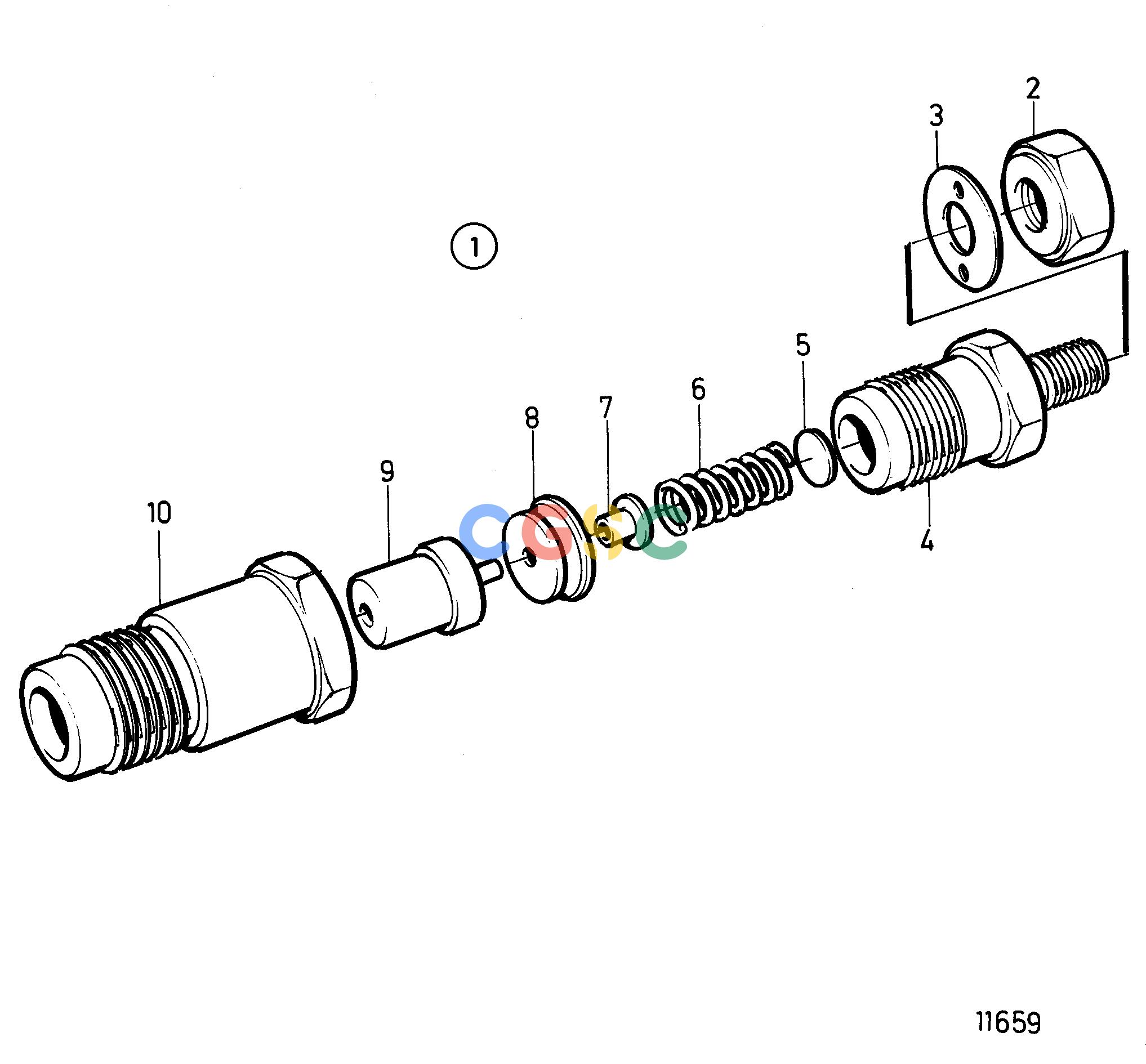

沃尔沃零件查询MD2010B; MD2020B; MD2030B; MD2040B; MS2L-D; MS2A-D; 120S-D; MS2B-R; MS2A-E; MS2L-EFuel SystemFuel Injector, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
787 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3580078
|
[1] |
Injector
|
|
| 1. |
3803440
|
[1] |
Injector
|
|
| 2. |
3580158
|
[1] |
Nut
|
|
| 3. |
3580631
|
[1] |
Gasket
|
(3580159)
|
| 4. |
|
|
|
|
| 5. |
3580161
|
[1] |
Adjusting washer
|
TH=0,90mm
|
| 5. |
3580162
|
[1] |
Adjusting washer
|
TH=0,925mm
|
| 5. |
3580163
|
[1] |
Adjusting washer
|
TH=0,95mm
|
| 5. |
3580164
|
[1] |
Adjusting washer
|
TH=0,975mm
|
| 5. |
3580165
|
[1] |
Adjusting washer
|
TH=1,00mm
|
| 5. |
3580166
|
[1] |
Adjusting washer
|
TH=1,025mm
|
| 5. |
3580167
|
[1] |
Adjusting washer
|
TH=1,05mm
|
| 5. |
3580168
|
[1] |
Adjusting washer
|
TH=1,075mm
|
| 5. |
3580169
|
[1] |
Adjusting washer
|
TH=1,10mm
|
| 5. |
3580170
|
[1] |
Adjusting washer
|
TH=1,125mm
|
| 5. |
3580171
|
[1] |
Adjusting washer
|
TH=1,15mm
|
| 5. |
3580172
|
[1] |
Adjusting washer
|
TH=1,175mm
|
| 5. |
3580173
|
[1] |
Adjusting washer
|
TH=1,20mm
|
| 5. |
3580174
|
[1] |
Adjusting washer
|
TH=1,225mm
|
| 5. |
3580175
|
[1] |
Adjusting washer
|
TH=1.25mm
|
| 5. |
3580176
|
[1] |
Adjusting washer
|
TH=1,275mm
|
| 5. |
3580177
|
[1] |
Adjusting washer
|
TH=1,30mm
|
| 5. |
3580178
|
[1] |
Adjusting washer
|
TH=1,325mm
|
| 5. |
3580179
|
[1] |
Adjusting washer
|
TH=1,35mm
|
| 5. |
3580180
|
[1] |
Adjusting washer
|
TH=1,375mm
|
| 5. |
3580181
|
[1] |
Adjusting washer
|
TH=1,40mm
|
| 5. |
3580182
|
[1] |
Adjusting washer
|
TH=1,425mm
|
| 5. |
3580183
|
[1] |
Adjusting washer
|
TH=1,45mm
|
| 6. |
3580184
|
[1] |
Spring
|
|
| 7. |
3580185
|
[1] |
Clamping bolt
|
|
| 8. |
3580186
|
[1] |
Spacer
|
|
| 9. |
3580187
|
[1] |
Nozzle
|
|
| 10. |
|
|
|
|
