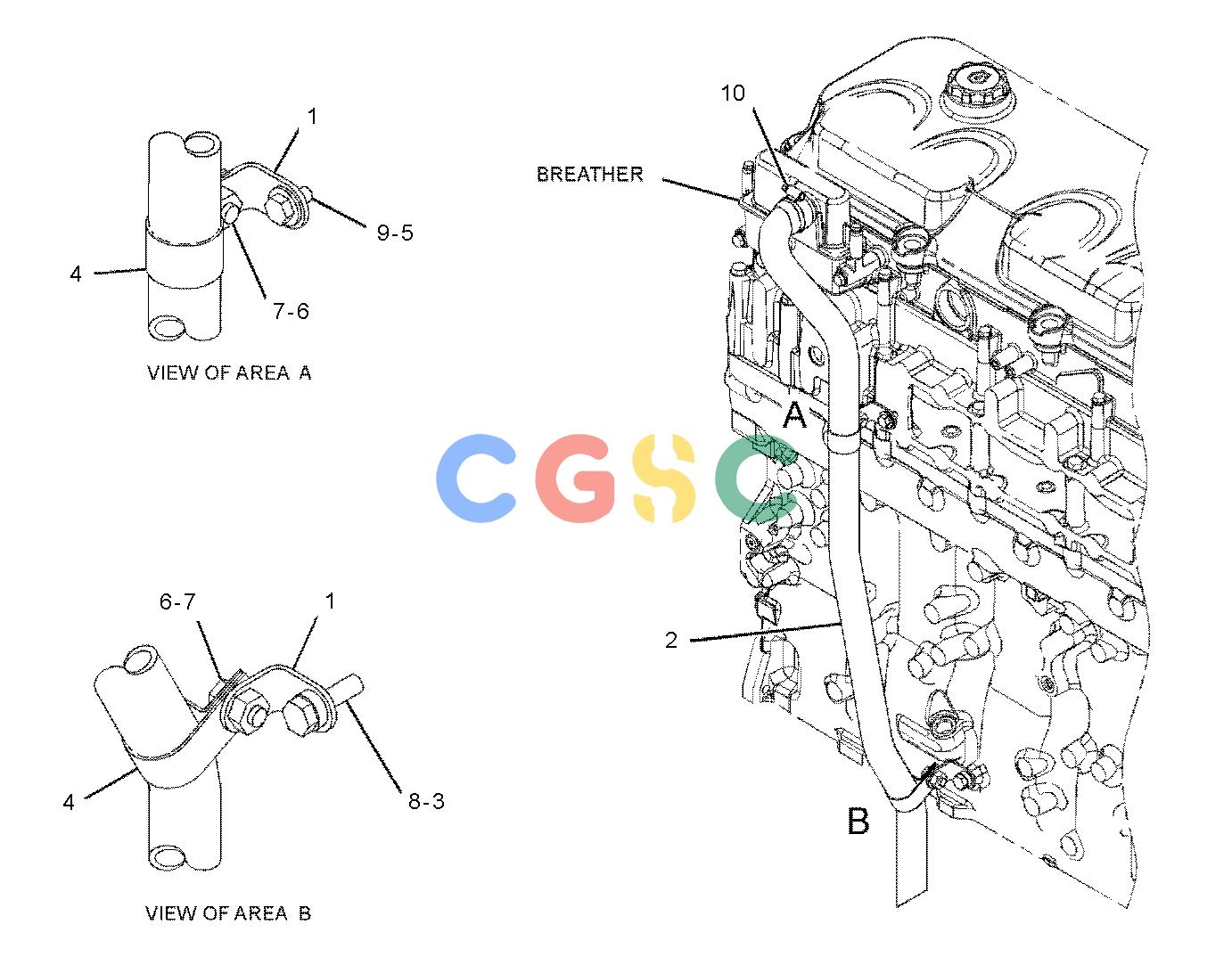

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 124-3019 | [2] | BRACKET AS | |
| (EACH INCLUDES) | ||||
| 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | ||
| 2. | 416-8730 | [1] | HOSE | |
| 3. | 132-7551 | [1] | SPACER(11X19X6-MM THK) | |
| 4. | 2S-2053 | [2] | CLIP(LOOP) | |
| 5. | 5P-4116 | [1] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 6. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 7. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 8. | 8T-4196M | [1] | BOLT(M10X1.5X35-MM) | |
| 9. | 8T-4200M | [1] | BOLT(M8X1.25X16-MM) | |
| 10. | 9M-2904 | [1] | CLAMP-HOSE | |
| M | METRIC PART | |||
