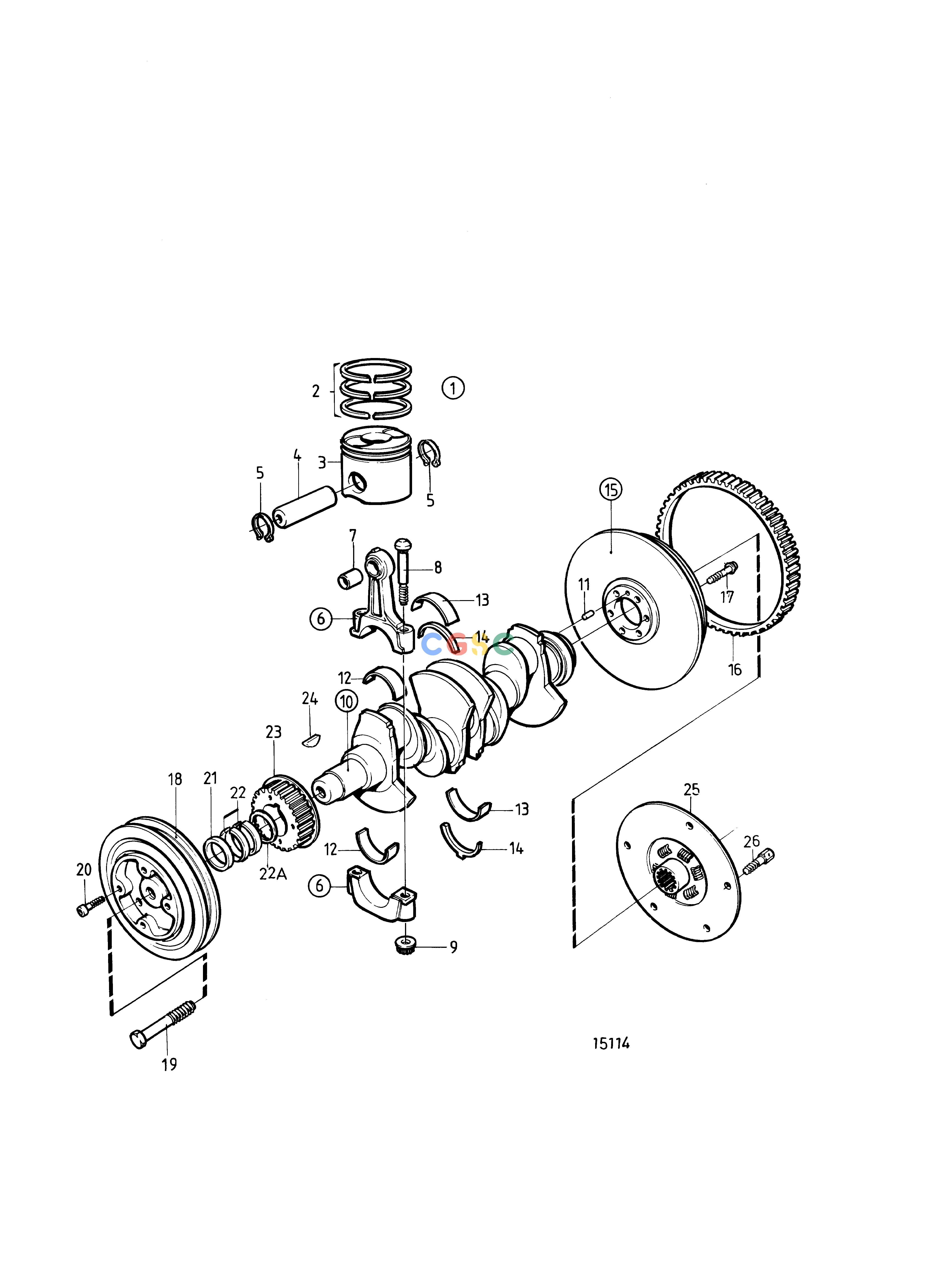

沃尔沃零件查询MD22A; MD22A-A; MD22L-A; TMD22A; TMD22-A; MS2B-A; MS2B-R; MS2A-E; MS2B-L; MS2L-E; 120S-E; MD22; MD22LEngineCrank Mechanism: CEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
548 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
861362
|
[4] |
Piston kit
|
For piston marked 1, 2 or 3., Std D
|
| 1. |
861363
|
[4] |
Piston kit
|
For piston marked 4, 5 or 6., Std D
|
| 1. |
861364
|
[4] |
Piston kit
|
For piston marked 1, 2 or 3., O.S=0,50mm
|
| 1. |
861365
|
[4] |
Piston kit
|
For piston marked 4, 5 or 6., O.S=0,50mm
|
| 2. |
859642
|
[4] |
Piston ring kit
|
Std D
|
| 2. |
859944
|
[4] |
Piston ring kit
|
O.S=0,50mm
|
| 3. |
|
|
|
|
| 4. |
|
|
|
|
| 5. |
859948
|
[8] |
Lock ring
|
|
| 6. |
876675
|
[1] |
Connecting rod kit
|
The kit includes 4 connecting rods., (859643)
|
| 7. |
859646
|
[4] |
Bushing
|
|
| 8. |
859644
|
[8] |
Screw
|
|
| 9. |
859645
|
[8] |
Nut
|
|
| 10. |
859637
|
[1] |
Crankshaft
|
|
| 11. |
859639
|
[1] |
Guide pin
|
|
| 12. |
859807
|
[1] |
Big-end bearing kit
|
Std D
|
| 12. |
859949
|
[1] |
Big-end bearing kit
|
U.S=0,30mm
|
| 13. |
859791
|
[1] |
Main bearing kit
|
Std D
|
| 13. |
859945
|
[1] |
Main bearing kit
|
U.S=0,30mm
|
| 14. |
859640
|
[1] |
Thrust washer kit
|
|
| 15. |
861579
|
[1] |
Flywheel
|
|
| 16. |
859720
|
[1] |
Ring gear
|
|
| 17. |
859721
|
[6] |
Screw
|
|
| 18. |
859761
|
[1] |
Pulley
|
SN-5100598713
|
| 18. |
861590
|
[1] |
Pulley
|
SN5100598714-
|
| 19. |
859762
|
[1] |
Screw
|
SN-5100598713
|
| 19. |
861591
|
[1] |
Screw
|
SN5100598714-
|
| 20. |
859763
|
[4] |
Screw
|
|
| 21. |
859764
|
[1] |
Spacer
|
SN-5100598713
|
| 21. |
861592
|
[1] |
Ring
|
SN5100598714-
|
| 22. |
859765
|
[1] |
Lock
|
SN-5100598713
|
| 22. |
861593
|
[1] |
Lock
|
SN5100598714-
|
| 22A. |
861452
|
[1] |
Washer
|
SN5100598714-
|
| 23. |
860019
|
[1] |
Gear pulley
|
SN-5100598713
|
| 23. |
861589
|
[1] |
Gear pulley
|
SN5100598714-
|
| 24. |
859665
|
[1] |
Key
|
|
| 25. |
854345
|
[1] |
Vibration damper
|
(861579)
|
| 26. |
859710
|
[5] |
Shoulder screw
|
|
