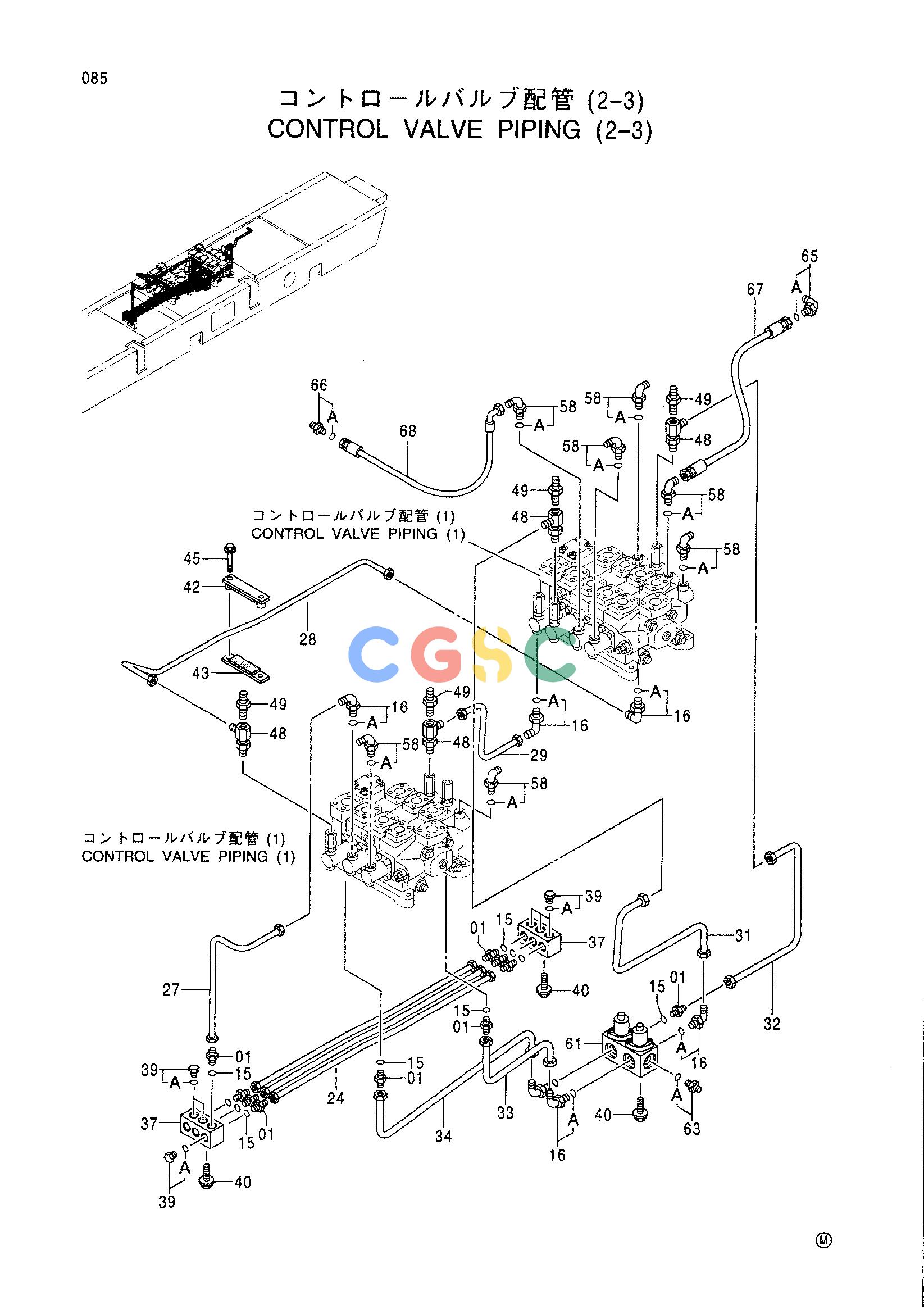

日立零件查询（CX1100）CONTROL VALVE PIPING (2-3) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
625 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 4317623 | [10] | FITTING;PIPE | |
| 15. | 964255 | [10] | O-RING | |
| 16. | 4317622 | [6] | FITTING;PIPE | |
| 16A. | 957366 | [1] | O-RING | |
| 24. | 3079404 | [3] | PIPE | |
| 27. | 4439309 | [1] | PIPE | |
| 28. | 4439317 | [1] | PIPE | |
| 29. | 4439311 | [1] | PIPE | |
| 31. | 4439310 | [1] | PIPE | |
| 32. | 4439308 | [1] | PIPE | |
| 33. | 4388942 | [1] | PIPE | |
| 34. | 4388943 | [1] | PIPE | |
| 37. | 3064716 | [2] | MANIFOLD | |
| 39. | 4093624 | [6] | PLUG | |
| 39A. | 957366 | [1] | O-RING | |
| 40. | J021020 | [8] | BOLT;SEMS | |
| 42. | 9740681 | [1] | CLAMP | |
| 43. | 9741175 | [1] | CLAMP | |
| 45. | J011045 | [2] | BOLT;SEMS | |
| 48. | 4350029 | [4] | FITTING;PIPE | |
| 49. | 4346128 | [4] | FITTING | |
| 58. | 4156434 | [7] | ELBOW;S | |
| 58A. | 957366 | [1] | O-RING | |
| 61. | 4329395 | [1] | VALVE;SOLENOID | |
| 63. | 4200467 | [1] | ADAPTER;S | |
| 63A. | 957366 | [1] | O-RING | |
| 65. | 4154671 | [1] | ELBOW;S | |
| 65A. | 4509180 | [1] | O-RING | |
| 66. | 4200466 | [1] | ADAPTER;S | |
| 66A. | 4509180 | [1] | O-RING | |
| 67. | 4379561 | [1] | HOSE | |
| 68. | 4355423 | [1] | HOSE | |
