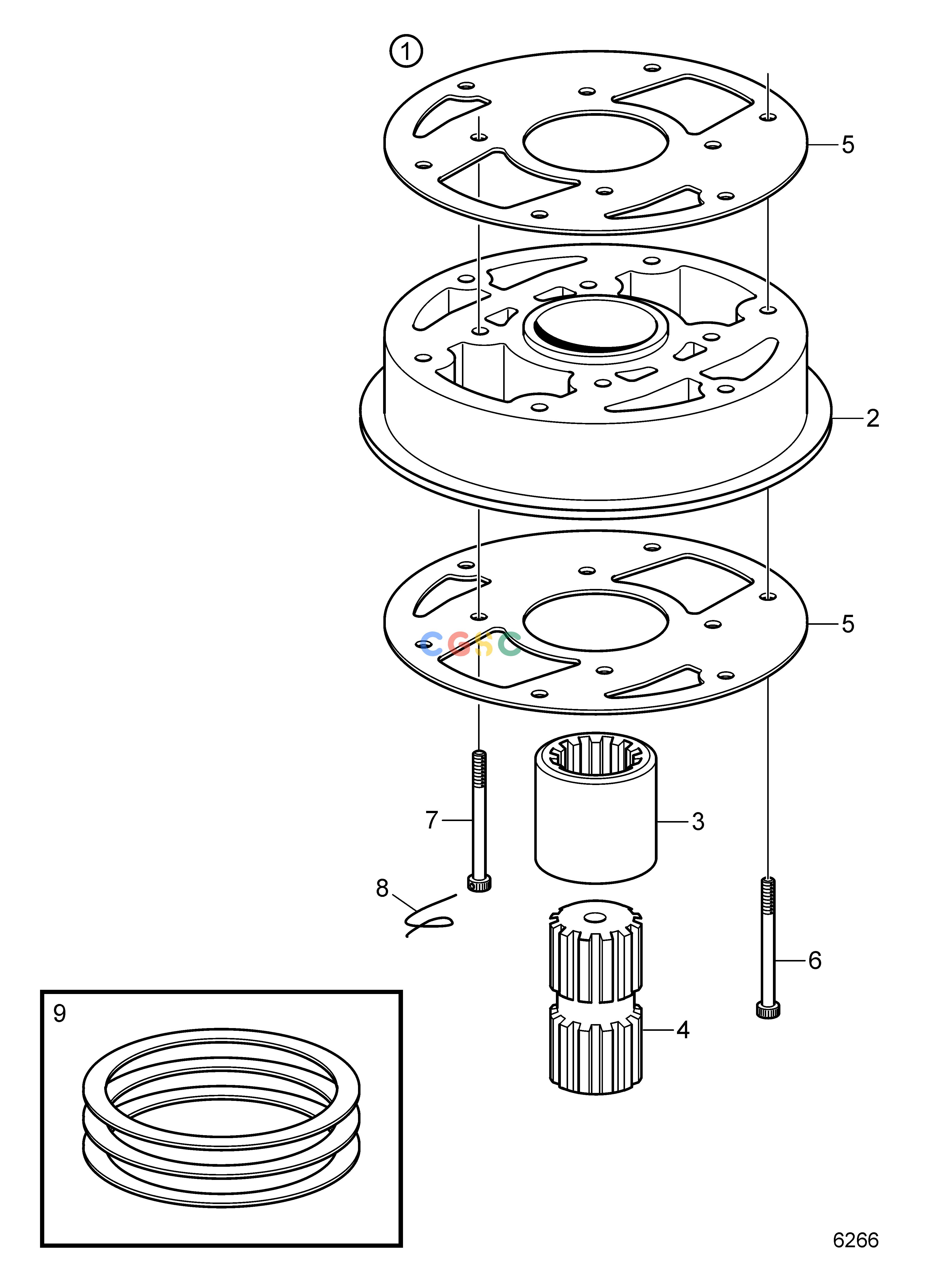

沃尔沃零件查询MD22A; MD22A-A; MD22L-A; TMD22A; TMD22-A; MS2B-A; MS2B-R; MS2A-E; MS2B-L; MS2L-E; 120S-E; MD22; MD22LTransmissionsDrive Extension: L=51mmEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
796 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
854173
|
[1] |
Extension kit
|
L=51mm repl by 3858780
|
| 1. |
3858780
|
[1] |
Extension kit
|
L=51mm
|
| 2. |
|
|
|
|
| 3. |
852442
|
[1] |
Splined sleeve
|
For 854172, 854173
|
| 3. |
875183
|
[1] |
Splined sleeve
|
For 3858780, 3858781
|
| 4. |
852443
|
[1] |
Extension shaft
|
|
| 5. |
3856834
|
[2] |
Gasket
|
(853892)
|
| 6. |
967686
|
[4] |
Hex. socket screw
|
L=90mm
|
| 6. |
851858
|
[4] |
Hex. socket screw
|
L=90mm
|
| 6. |
852688
|
[4] |
Hex. socket screw
|
L=105mm
|
| 7. |
967687
|
[2] |
Hex. socket screw
|
L=110mm
|
| 8. |
852668
|
[1] |
Locking wire
|
(852669)
|
| 9. |
948298
|
[1] |
Shim
|
TH=0,10mm
|
| 9. |
948299
|
[1] |
Shim
|
TH=0.15mm
|
| 9. |
948300
|
[1] |
Shim
|
TH=0,35mm
|
