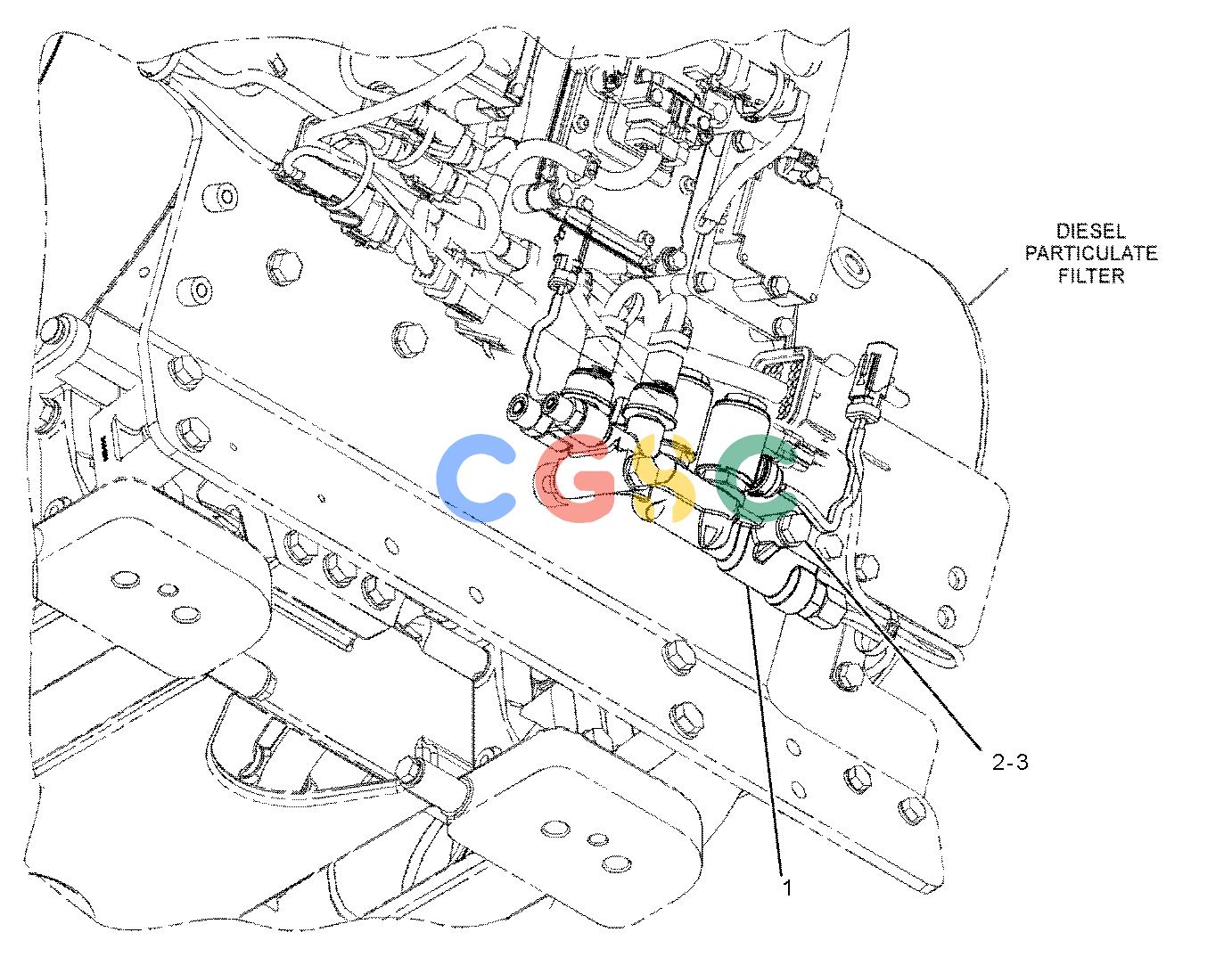

卡特零件查询（730） 496-3430: LINES GP-FUEL FILTER
广数供应链运营团队, 15 02月, 2025，浏览：
298 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3U-2752 | [4] | CLIP(LOOP) | |
| 2. | 3U-2754 | [7] | CLIP(LOOP) | |
| 3. | 3U-2755 | [5] | CLIP(LOOP) | |
| 4. | 6U-0456 | [4] | STRAP | |
| 5. | 6U-3890 | [1] | CLIP | |
| 6. | 8T-9655 | [6] | MOUNT-ISOLATION | |
| 7. | 191-1782 | [1] | SPACER(8.5X12.7X38.2-MM THK) | |
| 8. | 191-1783 | [2] | SPACER(8.5X12.7X87.3-MM THK) | |
| 9. | 203-2107 | [1] | HOSE | |
| 10. | 280-2823 | [1] | ADAPTER AS | |
| | 3E-7403 | [1] | ADAPTER | |
| | 228-7090 | [1] | SEAL-O-RING | |
| 11. | 281-5976 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8629 | [1] | ELBOW | |
| | 228-7092 | [1] | SEAL-O-RING | |
| | 238-5081 | [1] | SEAL-O-RING | |
| 12. | 281-5978 | [1] | CONNECTOR AS | |
| | 6V-8640 | [1] | CONNECTOR | |
| | 228-7092 | [1] | SEAL-O-RING | |
| | 238-5081 | [1] | SEAL-O-RING | |
| 13. | 290-5562 | [2] | MOUNT(DUAL SWIVEL) | |
| 14. | 309-5131 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 9S-8006 | [1] | PLUG(7/8-14-THD) | |
| | 238-5081 | [1] | SEAL-O-RING | |
| 15. | 319-6217 | [3] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 6V-8639 | [1] | CONNECTOR | |
| | 228-7090 | [1] | SEAL-O-RING | |
| | 238-5080 | [1] | SEAL-O-RING | |
| 16. | 319-6226 | [1] | ELBOW AS | |
| | 8T-6876 | [1] | ELBOW | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 228-7090 | [1] | SEAL-O-RING | |
| 17. | 330-9774 | [1] | UNION AS | |
| | 6V-8995 | [1] | UNION(STRAIGHT) | |
| | 228-7090 | [2] | SEAL-O-RING | |
| 18. | 360-1693Y | [1] | PUMP GP-FUEL PRM & PRIM FILTER(AFTERTREATMENT REGEN DEVICE) | |
| 19. | 383-6097 | [1] | BRACKET AS | |
| | 8T-3597M | [4] | NUT-WELD(M12X1.75-THD) | |
| 20. | 393-2161 | [1] | TUBE AS | |
| 21. | 422-3087 | [2] | TUBE AS | |
| 22. | 426-4155 | [1] | ADAPTER AS | |
| | 228-7091 | [1] | SEAL-O-RING | |
| | 426-4059 | [1] | ADAPTER | |
| 23. | 444-8016I | [1] | HOSE AS | |
| 24. | 463-5648 | [1] | PLATE AS | |
| | 8Y-3795M | [1] | BOSS(M10X1.5X39-MM) | |
| 25. | 228-7090 | [2] | SEAL-O-RING | |
| 26. | 444-8008I | [1] | HOSE AS | |
| 27. | 444-8012I | [1] | HOSE AS | |
| 28. | 444-8013I | [1] | HOSE AS | |
| 29. | 444-8018I | [1] | HOSE AS | |
| 30. | 496-8160I | [1] | HOSE AS | |
| 31. | 525-9312 | [1] | BRACKET AS | |
| 32. | 525-9510 | [1] | HOSE AS | |
| 33. | 6U-0455 | [6] | STRAP | |
| 34. | 6V-9169 | [1] | NUT(13/16-16-THD) | |
| 35. | 7X-0579 | [6] | WASHER-HARD(8.8X25.5X2-MM THK) | |
| 36. | 7X-2539M | [2] | BOLT(M8X1.25X110-MM) | |
| 37. | 8T-4121 | [14] | WASHER-HARD(11X21X2.5-MM THK) | |
| 38. | 8T-4123 | [2] | WASHER(22X35X3.5-MM THK) | |
| 39. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 40. | 8T-4137M | [3] | BOLT(M10X1.5X20-MM) | |
| 41. | 8T-4139M | [8] | BOLT(M12X1.75X30-MM) | |
| 42. | 8T-4195M | [3] | BOLT(M10X1.5X30-MM) | |
| 43. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| 44. | 8T-4200M | [2] | BOLT(M8X1.25X16-MM) | |
| 45. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 46. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 47. | 8T-6869M | [1] | BOLT(M8X1.25X60-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
