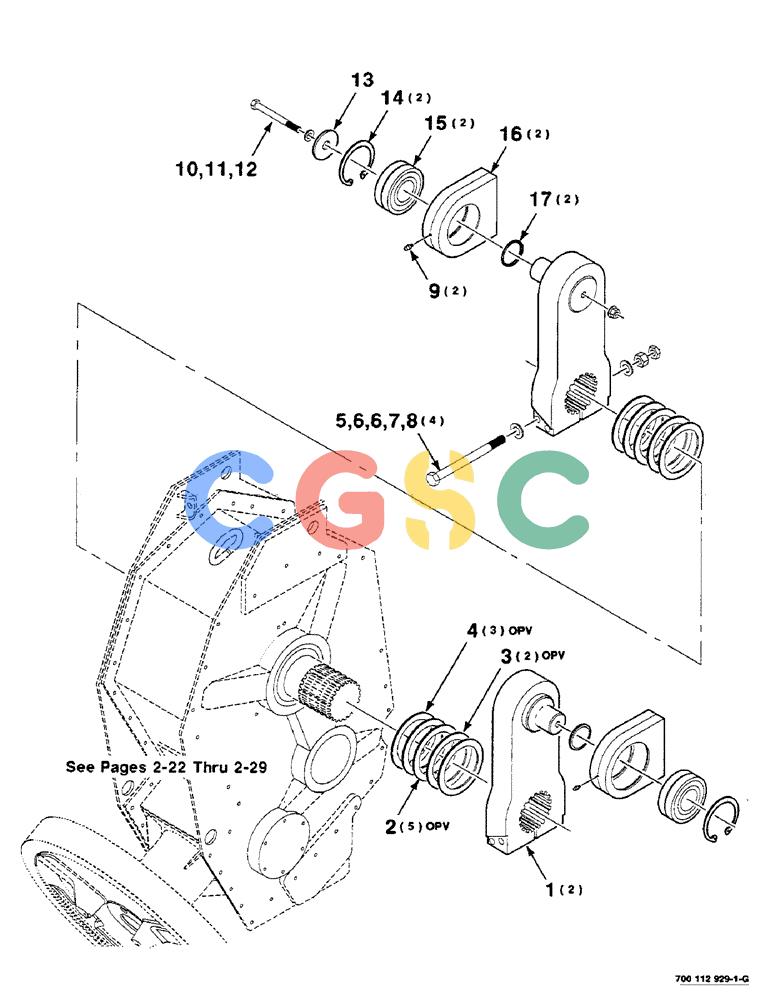

凯斯零件查询(8580) - CASE IH LARGE RECTANGULAR BALER (1/88-12/98) (02-20) - GEARBOX AND CRANK ARM ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
910 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700113023
|
[2] |
ARM ASSY.
|
HFI
ARM WA - crank
|
| 2. |
700708041
|
[5] |
SHIM,150mm ID x 180mm OD x 1.21mm Thk
|
CAS
- 1.27/.050
|
| 3. |
700708039
|
[2] |
SHIM
|
CAS
- 0.64/.025
|
| 4. |
700708038
|
[3] |
SHIM,150mm ID x 180mm OD x 0.25mm Thk
|
CAS
0.25/.010
|
| 5. |
700707996
|
[4] |
BOLT
|
CAS
1-8 X 12 B GR8 NP
|
| 6. |
496-21106
|
[8] |
WASHER,1 1/16" x 2" x .209", HDN
|
CAS
Superseded by part number: 86637954
|
| 7. |
429-1016
|
[4] |
NUT,1"-8, G8
|
CAS
Superseded by part number: 86511609
|
| 8. |
425-1416
|
[4] |
JAM NUT,Jam, 1"-8, G5
|
CAS
1-8 J GR2 Superseded by part number: 87553819
|
| 9. |
219-8
|
[2] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg Superseded by part number: 87414
|
| 10. |
413-12120
|
[1] |
BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5
|
CAS
3/4-10 X 7-1/2 B Superseded by part number: 281036
|
| 11. |
705566
|
[1] |
WASHER
|
IH
3/4 HARDENED PLAIN WASHER
|
| 12. |
232-41112
|
[1] |
NUT,3/4"-10, GC
|
CAS
NUT, LOCK, 3/4"-10, GC Superseded by part number: 280375
|
| 13. |
6579106
|
[1] |
LARGE PLATE
|
CAS
WASHER Superseded by part number: 706579106
|
| 14. |
8052144
|
[2] |
RING, SNAP
|
CAS
RING - retaining
|
| 15. |
8050593
|
[2] |
SPHERICAL BEARING,74.99mm ID x 160mm OD x 55mm W
|
CAS
- roller
|
| 16. |
700113065
|
[2] |
BEARING HOUSING
|
CAS
HOUSING - bearing
|
| 17. |
700113046
|
[2] |
SPACER
|
CAS
|
