沃尔沃零件查询MD31A; TMD31A; TMD31B; TAMD31A; TAMD31B; AD31; AQAD31A; AD31B; 290A; DP-A; DP-B; DP-A1; DP-B1; SP-A; SP-A1Electrical SystemStarter MotorEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
475 次

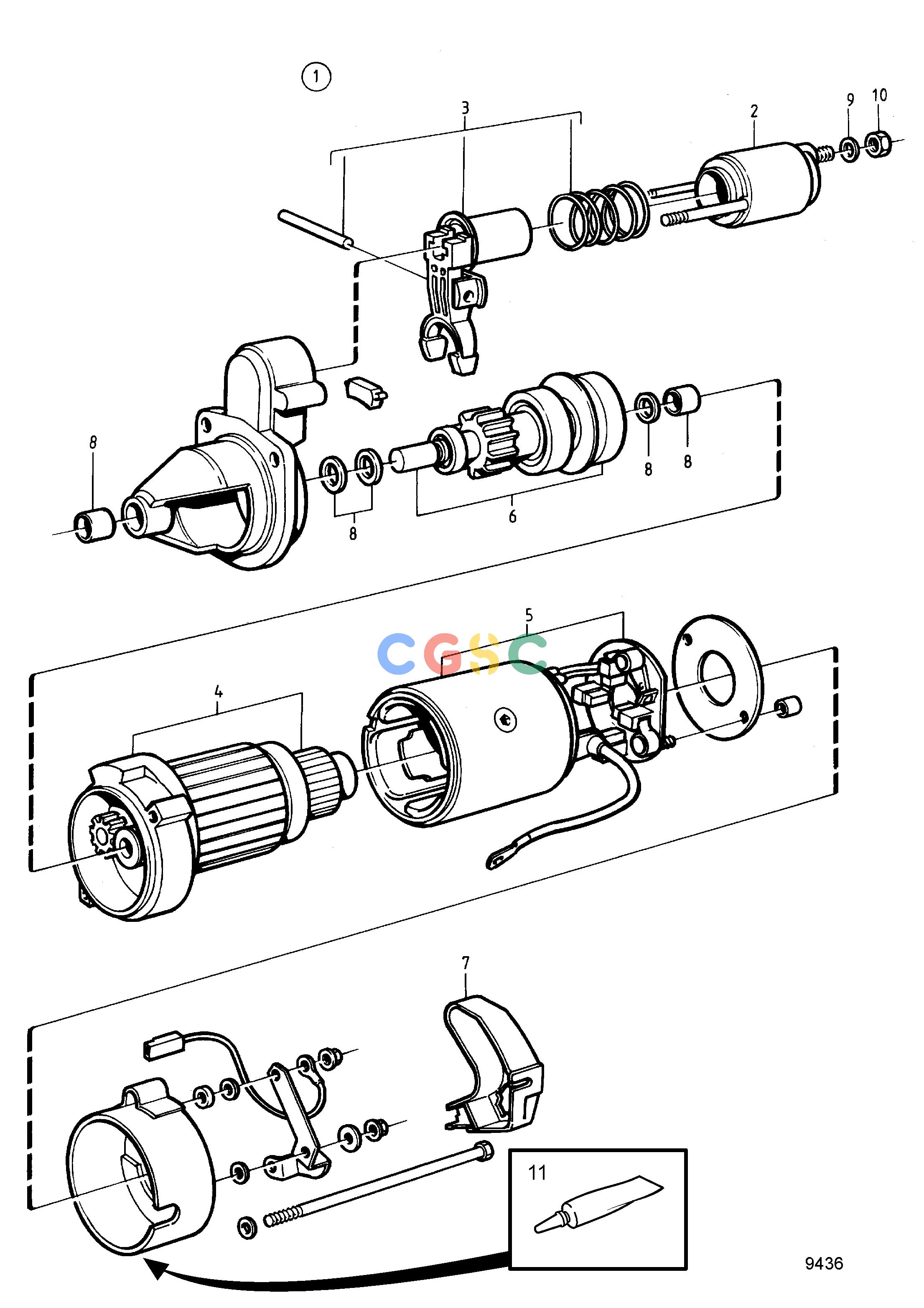

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
859252
|
[1] |
Starter motor
|
2-pole
|
| 2. |
859618
|
[1] |
Solenoid switch
|
|
| 3. |
859619
|
[1] |
Intermediate lever
|
|
| 4. |
859621
|
[1] |
Rotor
|
|
| 5. |
859622
|
[1] |
Field winding
|
|
| 6. |
859623
|
[1] |
Starter pinion
|
|
| 7. |
860439
|
[1] |
Cover
|
|
| 8. |
859620
|
[1] |
Repair kit
|
|
| 9. |
941907
|
[1] |
Spring washer
|
|
| 10. |
955782
|
[1] |
Hexagon nut
|
|
