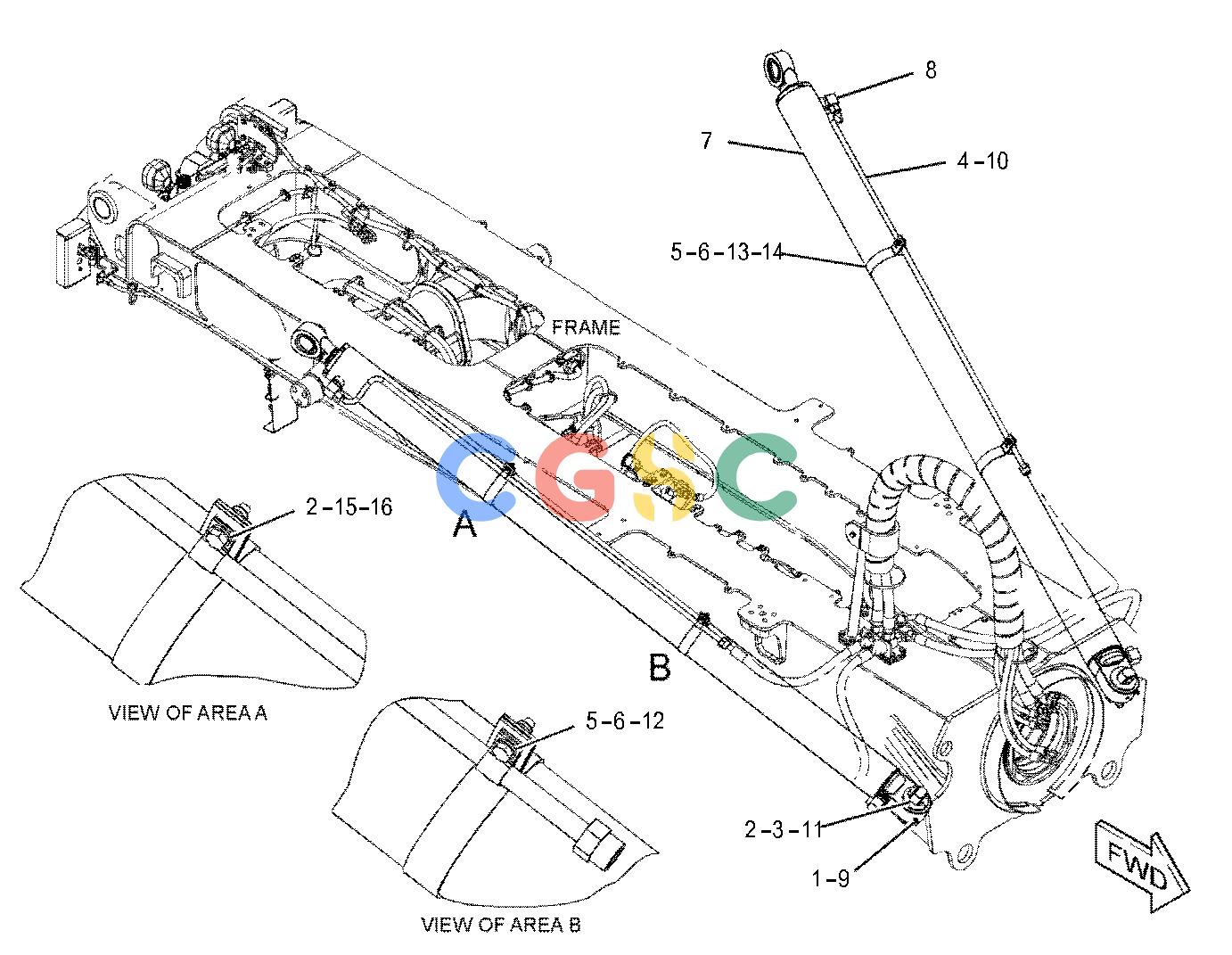

卡特零件查询（730） 364-2918: CYLINDER GP-HOIST
广数供应链运营团队, 15 02月, 2025，浏览：
321 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5U-7151 | [2] | CAP-GREASE | |
| 2. | 150-6553 | [2] | PIN | |
| 3. | 495-1468 | [2] | SEAL | |
| 4. | 176-3639 | [2] | TUBE AS | |
| 5. | 214-9436 | [4] | CLAMP | |
| 6. | 214-9438 | [4] | CLAMP | |
| 7. | 285-4032Y | [2] | CYLINDER GP-HOIST | |
| 8. | 148-8347 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9007 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 9. | 3B-8489 | [2] | FITTING-GREASE(1/8-27 PTF) | |
| 10. | 6V-9746 | [2] | SEAL-O-RING | |
| 11. | 8C-2949 | [2] | RING-RETAINING | |
| 12. | 8T-0389M | [4] | LOCKNUT(M10X1.5-THD) | |
| 13. | 8T-1887 | [4] | CLIP(SLOT) | |
| 14. | 8T-1888 | [4] | CLIP(TAB) | |
| 15. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 16. | 8T-4186M | [4] | BOLT(M10X1.5X40-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
