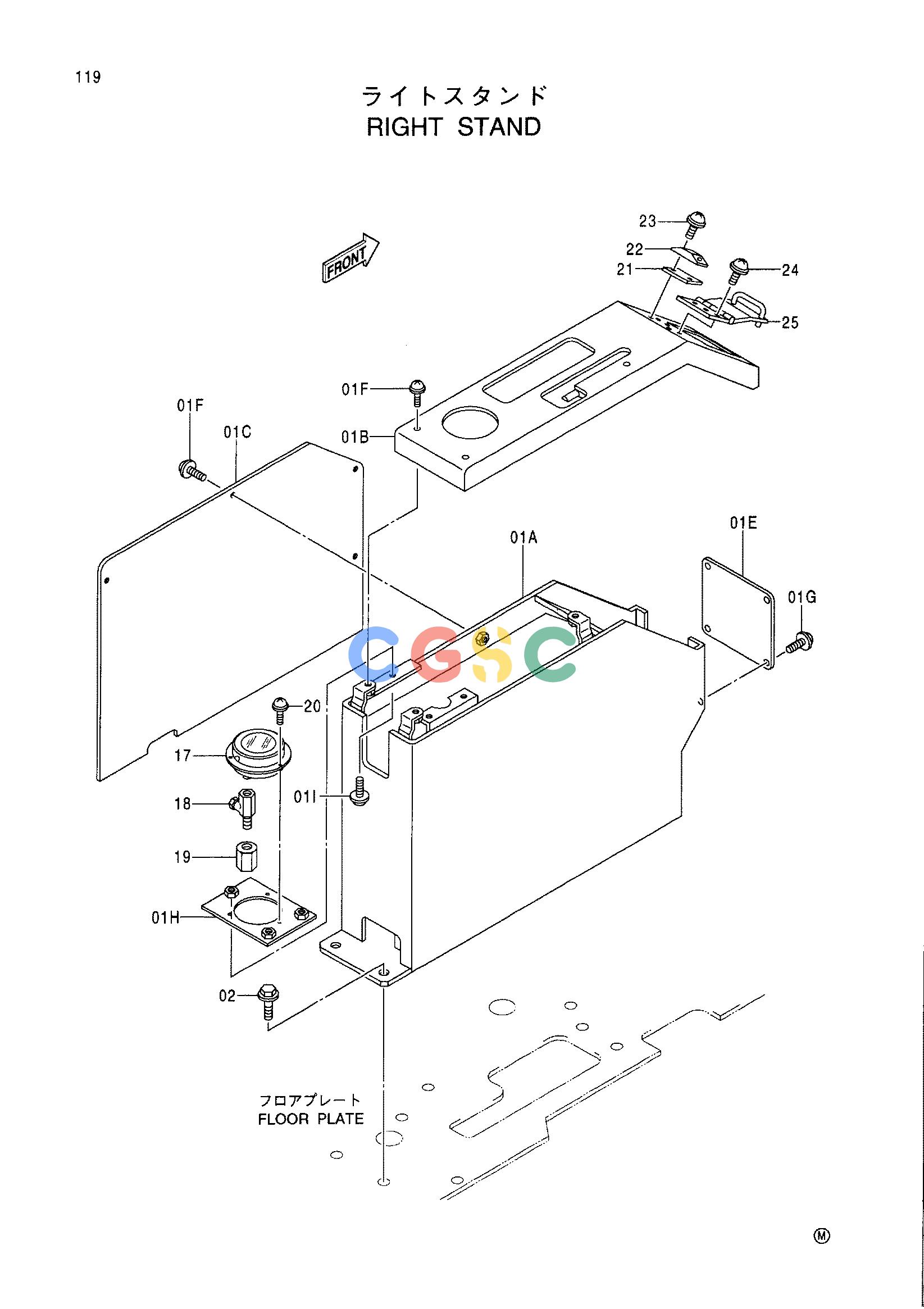

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01A-. | 7039285 | [1] | STAND ASS'Y | |
| 01A. | 6017288 | [1] | STAND | |
| 01B. | 6019255 | [1] | PANEL | |
| 01C. | 4386087 | [1] | COVER | |
| 01E. | 4339479 | [1] | COVER | |
| 01F. | J680616 | [7] | SCREW;SEMS | |
| 01G. | J680410 | [4] | SCREW;SEMS | |
| 01H. | 8063943 | [1] | PLATE | |
| 01I. | J460616 | [3] | SCREW;SEMS | |
| 02. | J011025 | [5] | BOLT;SEMS | |
| 17. | 4444855 | [1] | GAUGE;OIL-PRES. | |
| 18. | 4151610 | [1] | DAMPER | |
| 19. | 94-0685 | [1] | REDUCER;S | |
| 20. | J450412 | [3] | SCREW;SEMS | |
| 21. | 4365370 | [1] | SHIM | |
| 22. | 4365386 | [1] | CATCH | |
| 23. | J680314 | [2] | SCREW;SEMS | |
| 24. | J680414 | [3] | SCREW;SEMS | |
| 25. | 8066157 | [1] | LOCK | |
