沃尔沃零件查询MD31A; TMD31A; TMD31B; TAMD31A; TAMD31B; AD31; AQAD31A; AD31B; 290A; DP-A; DP-B; DP-A1; DP-B1; SP-A; SP-A1Miscellaneous EquipmentCharge Pressure Gauge Kit: 858887EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
726 次

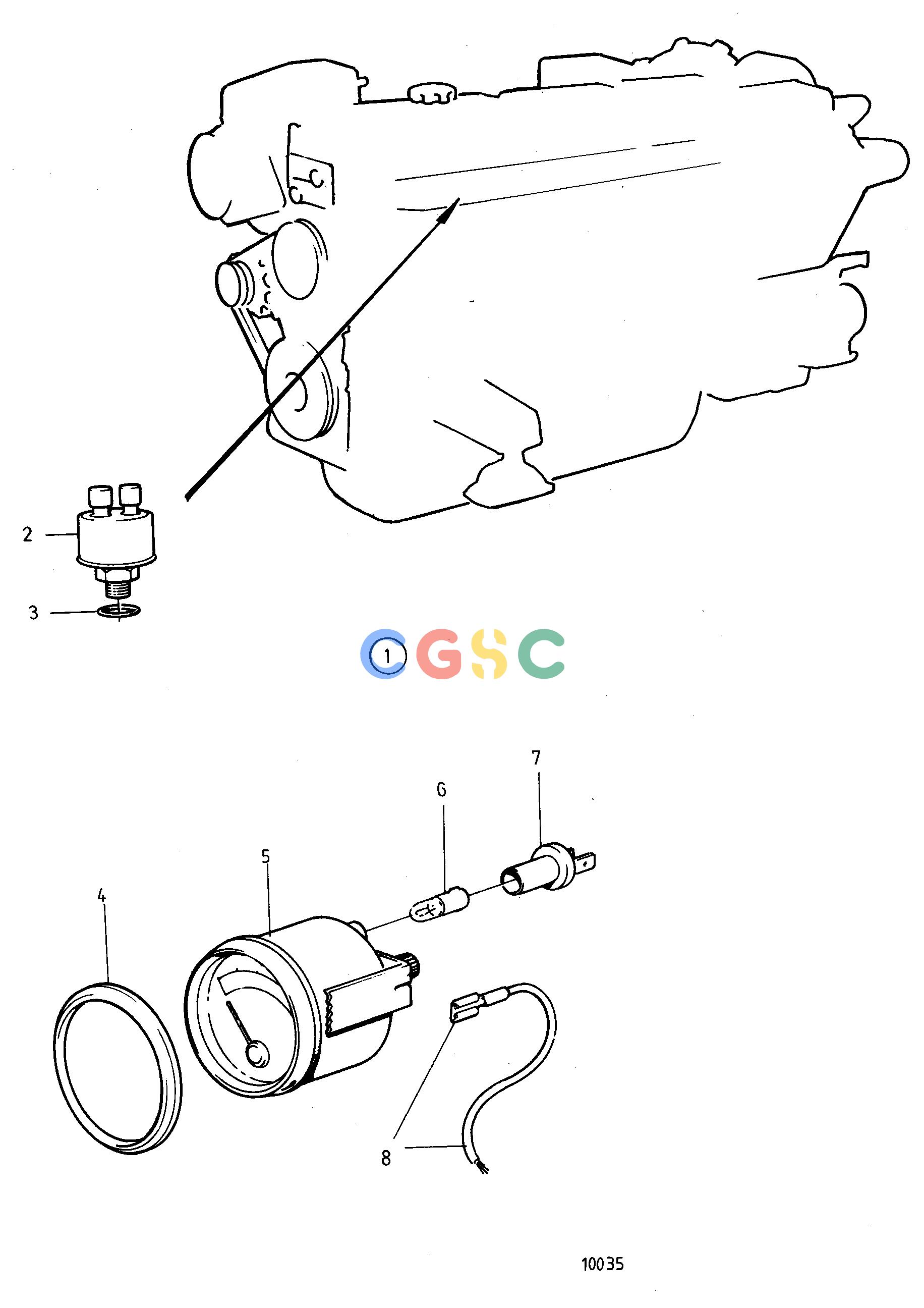

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
858887
|
[1] |
Pressure gauge
|
White coloured decor stripe., Not for MD31A, 12V
|
| 2. |
837782
|
[1] |
Pressure sensor
|
|
| 3. |
957181
|
[1] |
Gasket
|
|
| 4. |
858643
|
[1] |
Front ring
|
|
| 5. |
863938
|
[1] |
Turbo pressure gauge
|
(828625)
|
| 6. |
863946
|
[1] |
Bulb
|
For instruments with part no 828625 should white bulb 19923 and bulb holder 808175 be mounted., Red
|
| 7. |
863945
|
[1] |
Bulb socket
|
For instruments with part no 828625 should white bulb 19923 and bulb holder 808175 be mounted.
|
| 8. |
|
|
|
See group 3
|
