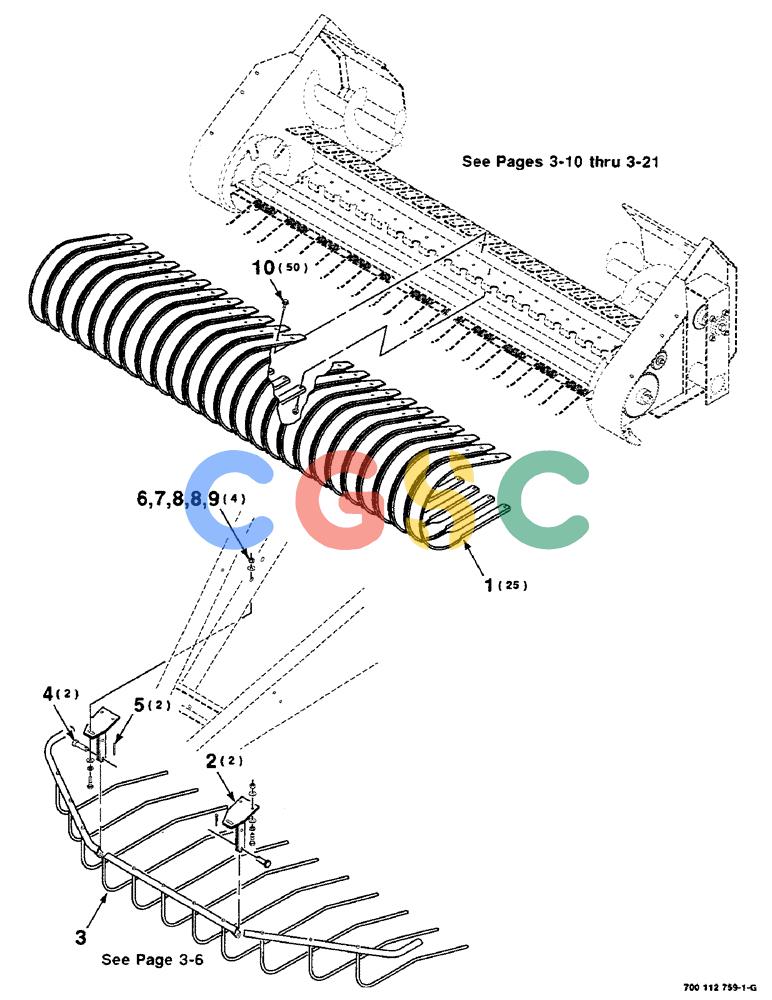

凯斯零件查询(8580) - CASE IH LARGE RECTANGULAR BALER (1/88-12/98) (03-04) - WINDGUARD AND PICKUP WRAPPERS ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
366 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700113244
|
[25] |
GUARD
|
CAS
WRAPPER
|
| 2. |
700113625
|
[2] |
HANGER
|
CAS
WA
|
| 3. |
700113617
|
[1] |
WINDGUARD
|
CAS
WA
|
| 4. |
427-8136
|
[2] |
CLEVIS PIN,1/2" x 1.360"
|
CAS
1/2 X 1-1/4 CLEVIS PIN Superseded by part number: 86636813
|
| 5. |
432-816
|
[2] |
COTTER PIN,1/8" x 1"
|
CAS
1/8" x 1" Superseded by part number: 80755
|
| 6. |
413-620
|
[4] |
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
|
CAS
C Hex, 3/8"-16 x 1 1/4", G5, Full Thd Superseded by part number: 72187207, 88011
|
| 7. |
492-11038
|
[4] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 8. |
496-11041
|
[8] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
3/8 HARDENED PLAIN WASHER Superseded by part number: 86632588
|
| 9. |
425-106
|
[4] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 10. |
409-7512
|
[50] |
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
|
CAS
Hex Flg, 5/16-18 x 3/4", Serr Superseded by part number: 145913, 72187186
|
