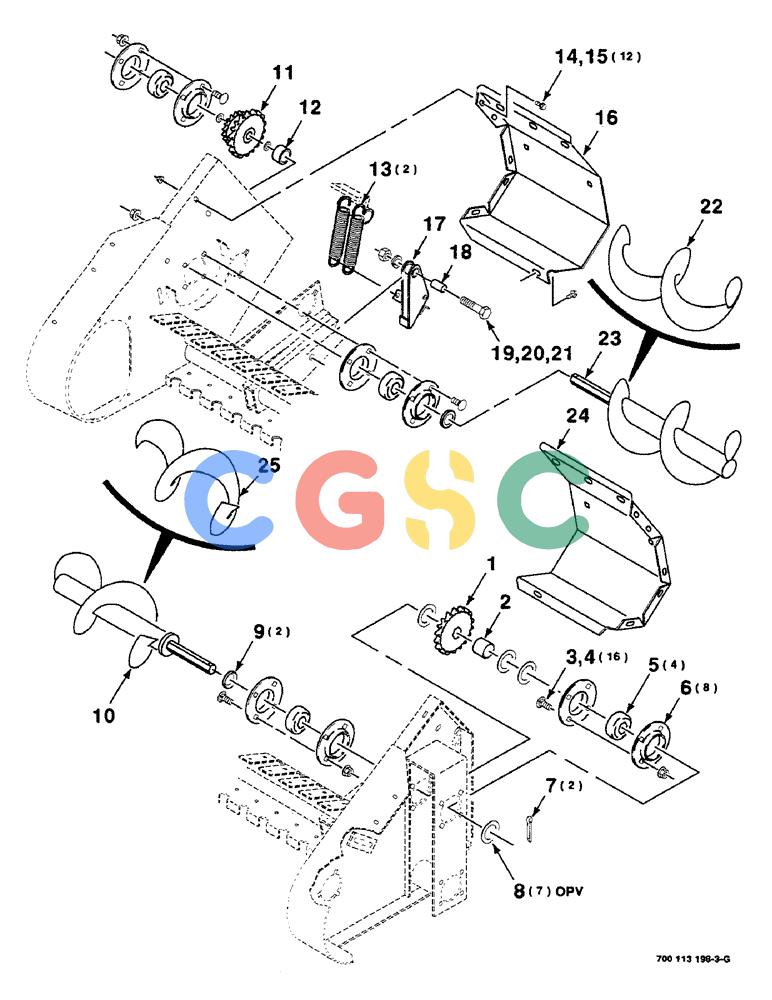

凯斯零件查询(8580) - CASE IH LARGE RECTANGULAR BALER (1/88-12/98) (03-10) - PICKUP AUGER AND PAN ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
966 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700113643
|
[1] |
SPROCKET
|
CAS
50B20 TOOTH
|
| 2. |
700113304
|
[1] |
SPACER
|
CAS
|
| 3. |
433-820
|
[16] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
|
CAS
1/2-13 X 1-1/4 RHSNB Superseded by part number: 87868
|
| 4. |
231-5348
|
[16] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-13 HFTLN GR/G Superseded by part number: 86521610
|
| 5. |
700703101
|
[4] |
SPHERICAL BEARING,31.78 mm ID x 80 mm OD x 36.512 mm
|
CAS
BEARING Superseded by part number: 86523785
|
| 6. |
663562R1
|
[8] |
FLANGE
|
IH
|
| 7. |
432-1628
|
[2] |
COTTER PIN,1/4" x 1 3/4"
|
CAS
Pin, Split (Cotter), 1/4" x 1 3/4" Superseded by part number: 87041
|
| 8. |
NLS
|
[7] |
NO LONGER SERVICED
|
BAS
1-1/2 X 14 GAUGE NRMB
|
| 9. |
700113638
|
[2] |
SPACER
|
CAS
|
| 10. |
700113299
|
[1] |
AUGER
|
CAS
- left
|
| 11. |
700113636
|
[1] |
SPROCKET
|
CAS
WA 20 - 29 tooth
|
| 12. |
700113305
|
[1] |
SPACER
|
CAS
|
| 13. |
858308
|
[2] |
SPRING
|
CAS
|
| 14. |
121-115
|
[12] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 15. |
231-5145
|
[12] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 16. |
700113270
|
[1] |
PAN
|
CAS
- auger, right
|
| 17. |
700113276
|
[1] |
PIVOT
|
CAS
WA
|
| 18. |
700113281
|
[1] |
SPACER
|
CAS
|
| 19. |
413-1248
|
[1] |
BOLT,Hex, 3/4" - 10 x 3", Gr 5
|
CAS
.75 X 3 UNC GR5 YZD Superseded by part number: 87337
|
| 20. |
492-11075
|
[1] |
LOCK WASHER,3/4"
|
CAS
3/4" Superseded by part number: 87340
|
| 21. |
425-1012
|
[1] |
NUT,3/4"-10, G5
|
CAS
3/4-10 H Superseded by part number: 280954
|
| 22. |
700113247
|
[1] |
AUGER FLIGHT
|
HFI
FLIGHTING - left, left hand spiral
|
| 23. |
700113300
|
[1] |
AUGER
|
CAS
- right
|
| 24. |
700113269
|
[1] |
PAN
|
CAS
- auger, left
|
| 25. |
700113248
|
[1] |
AUGER FLIGHT
|
CAS
FLIGHTING - right, right hand spiral
|
