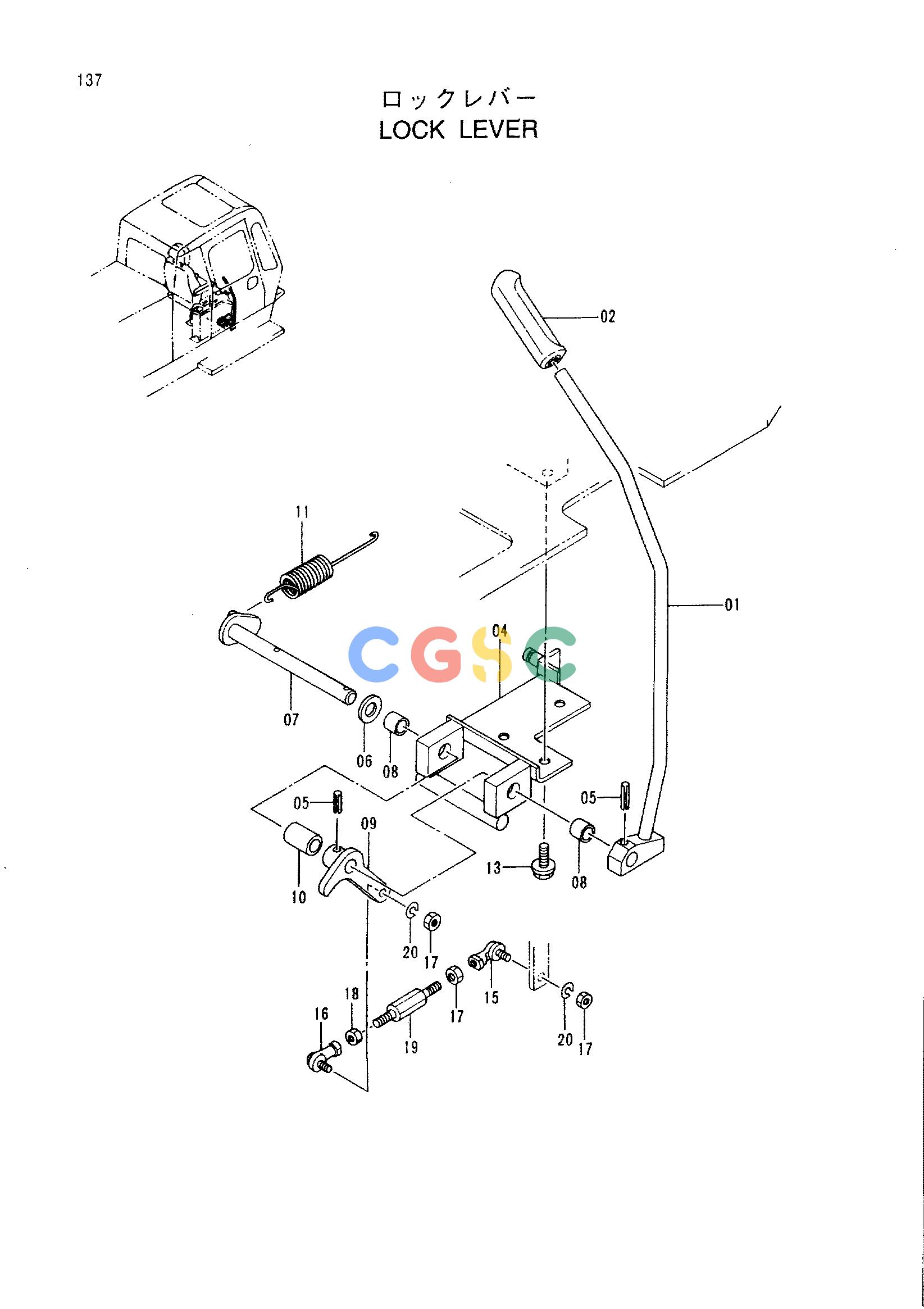

日立零件查询（CX1100）LOCK LEVER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
729 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 8057120 | [1] | LEVER;LOCK | |
| 02. | 3051611 | [1] | GRIP | |
| 04. | 8060070 | [1] | BRACKET | |
| 05. | 4027427 | [2] | PIN;SPRING | |
| 06. | A590116 | [1] | WASHER;PLANE | |
| 07. | 9741120 | [1] | LEVER | |
| 08. | 4259767 | [2] | BUSHING | |
| 09. | 9740890 | [1] | LINK | |
| 10. | 4332030 | [1] | SPACER | |
| 11. | 4189184 | [1] | SPRING;TENSION | |
| 13. | J011025 | [3] | BOLT;SEMS | |
| 15. | 4056018 | [1] | JOINT;BALL | |
| 16. | 4140064 | [1] | JOINT;BALL | |
| 17. | M500807 | [3] | NUT | |
| 18. | M580008 | [1] | NUT;(L) | |
| 19. | 4339725 | [1] | ROD | |
| 20. | A590908 | [2] | WASHER;SPRING | |
