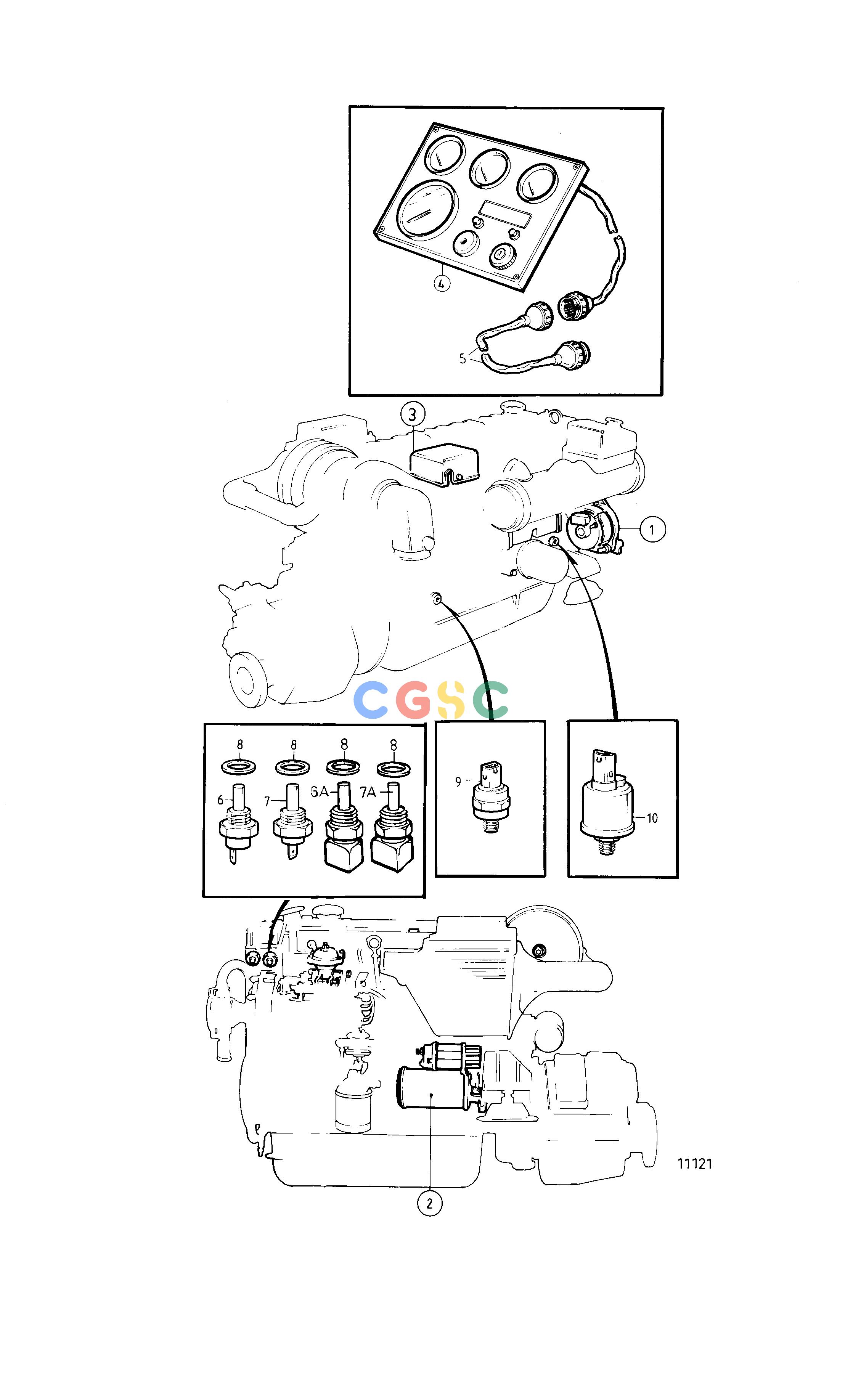

沃尔沃零件查询MD31A; TMD31B; TAMD31B; AD31BElectrical SystemElectrical System and Instruments: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
724 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7745910_046
|
|
alternator and installation comps
|
|
| 1. |
|
|
|
|
| 2. |
7745910_049
|
|
starter motor and installation comps
|
|
| 2. |
|
|
|
|
| 3. |
7745910_053
|
|
electrical box
|
|
| 4. |
864040
|
[1] |
Instrument panel
|
For 12 voltage electric system., 12V
|
| 5. |
846648
|
[1] |
Extension cable
|
L=3000mm
|
| 5. |
846649
|
[1] |
Extension cable
|
L=5000mm
|
| 5. |
846650
|
[1] |
Extension cable
|
L=7000mm
|
| 6. |
833927
|
[1] |
Thermo monitor
|
For 12 voltage electric system., 93°C
|
| 7. |
827151
|
[1] |
Temperature sensor
|
For 12 voltage electric system., 40-120°C
|
| 8. |
957181
|
[2] |
Gasket
|
|
| 9. |
863169
|
[1] |
Pressure monitor
|
0,7 bar
|
| 10. |
862155
|
[1] |
Oil pressure sensor
|
0-10 bar
|
