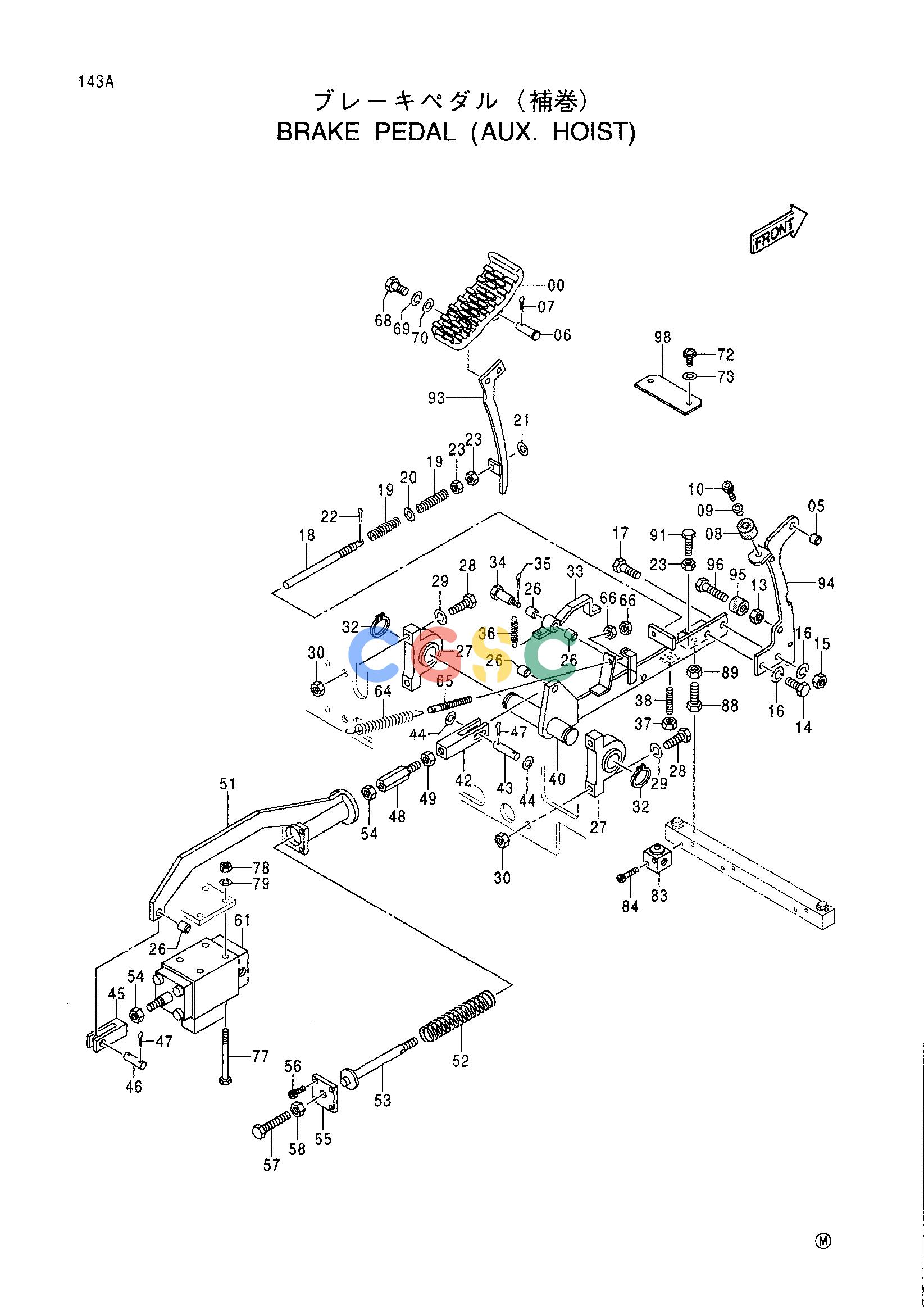

日立零件查询（CX1100）BRAKE PEDAL (AUX. HOIST) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
283 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 2042430 | [1] | PEDAL | |
| 05. | 4317791 | [1] | BUSHING | |
| 06. | 4316917 | [1] | PIN | |
| 07. | A764020 | [1] | PIN;SPLIT | |
| 08. | 4317574 | [1] | RUBBER;CUSHION | |
| 09. | 4317526 | [1] | SPACER | |
| 10. | M340816 | [1] | BOLT;SOCKET | |
| 13. | J950012 | [1] | NUT | |
| 14. | J901430 | [1] | BOLT | |
| 15. | J950014 | [1] | NUT | |
| 16. | A590914 | [2] | WASHER;SPRING | |
| 17. | J901440 | [1] | BOLT | |
| 18. | 4348442 | [1] | ROD | |
| 19. | 41626 | [2] | SPRING | |
| 20. | A590110 | [1] | WASHER;PLANE | |
| 21. | A590106 | [1] | WASHER;PLANE | |
| 22. | A761610 | [1] | PIN;SPLIT | |
| 23. | J950010 | [3] | NUT | |
| 26. | 4316918 | [4] | BUSHING | |
| 27. | 942014 | [2] | BLOCK | |
| 28. | J901245 | [4] | BOLT | |
| 29. | A590912 | [4] | WASHER;SPRING | |
| 30. | J950012 | [4] | NUT | |
| 32. | 929231 | [2] | RING | |
| 33. | 9746172 | [1] | LEVER | |
| 34. | 4339011 | [1] | BOLT | |
| 35. | A763016 | [1] | PIN;SPLIT | |
| 36. | 4363093 | [1] | SPRING | |
| 37. | M500807 | [1] | NUT | |
| 38. | M000830 | [1] | SCREW;SET | |
| 40. | 8070455 | [1] | LEVER | |
| 42. | 4338965 | [1] | END;FORK(L) | |
| 43. | 4083310 | [1] | PIN | |
| 44. | A590114 | [2] | WASHER;PLANE | |
| 45. | 4137317 | [1] | END;FORK(R) | |
| 46. | 4204682 | [1] | PIN | |
| 47. | A764022 | [4] | PIN;SPLIT | |
| 48. | 4317525 | [1] | ROD | |
| 49. | J955014 | [1] | NUT; L | |
| 51. | 8066776 | [1] | LEVER | |
| 52. | 4206004 | [1] | SPRING | |
| 53. | 9741000 | [1] | ROD | |
| 54. | J950014 | [2] | NUT | |
| 55. | 4318094 | [1] | COVER | |
| 56. | M340616 | [4] | BOLT;SOCKET | |
| 57. | M261250 | [1] | BOLT | |
| 58. | J950012 | [1] | NUT | |
| 61. | 4439534 | [1] | BOOSTER | |
| 64. | 4391000 | [1] | SPRING | |
| 65. | 4396808 | [1] | ROD | |
| 66. | J950010 | [2] | NUT | |
| 68. | M111025 | [2] | BOLT | |
| 69. | A590910 | [2] | WASHER;SPRING | |
| 70. | A590110 | [2] | WASHER;PLANE | |
| 72. | J450620 | [2] | SCREW;SEMS | |
| 73. | A590106 | [2] | WASHER;PLANE | |
| 77. | J901004 | [4] | BOLT | |
| 78. | J950010 | [4] | NUT | |
| 79. | A590910 | [4] | WASHER;SPRING | |
| 83. | 4365304 | [1] | VALVE;PILOT | |
| 84. | M340650 | [2] | BOLT;SOCKET | |
| 88. | J901440 | [1] | BOLT | |
| 89. | J950014 | [1] | NUT | |
| 91. | M261045 | [1] | BOLT | |
| 93. | 8072382 | [1] | LEVER;LOCK | |
| 94. | 8069745 | [1] | LEVER | |
| 95. | 4391033 | [1] | RUBBER;CUSHION | |
| 96. | M211240 | [1] | BOLT | |
| 98. | 4408403 | [1] | COVER | |
