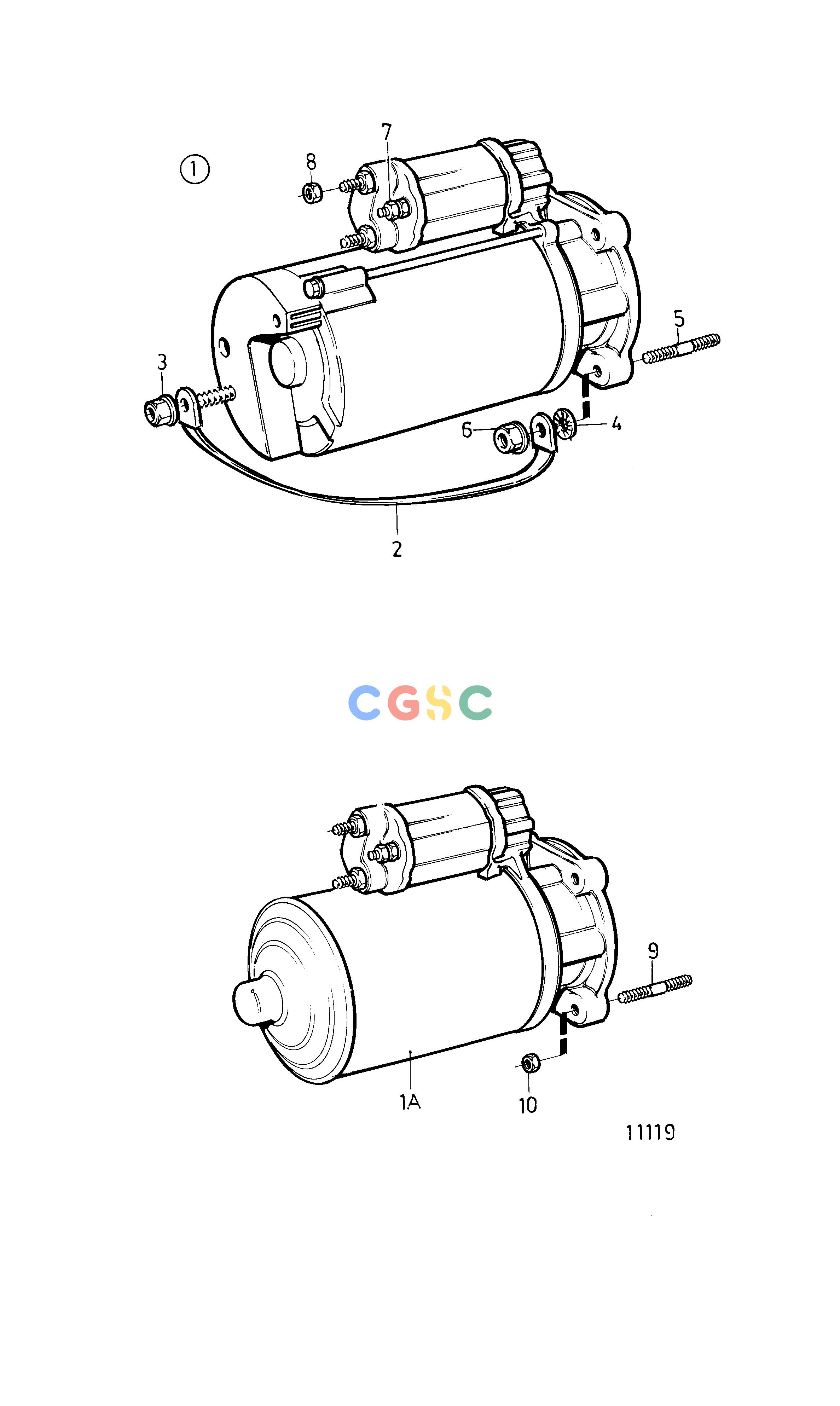

沃尔沃零件查询MD31A; TMD31B; TAMD31B; AD31BElectrical SystemStarter Motor and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
755 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
859252
|
[1] |
Starter motor
|
For 12 voltage electric system.
|
| 1A. |
838987
|
[1] |
Starter motor
|
For 24 voltage electric system.
|
| 2. |
968048
|
[1] |
Chassis ground cable
|
Not for TAMD31B and TAMD41B SOLAS version.
|
| 3. |
945408
|
[1] |
Flange nut
|
|
| 4. |
945987
|
[1] |
Toothed washer
|
|
| 5. |
953067
|
[2] |
Stud
|
L=45mm
|
| 5. |
953069
|
[1] |
Stud
|
L=50mm
|
| 6. |
971095
|
[3] |
Flange nut
|
|
| 7. |
965483
|
[1] |
Flange nut
|
|
| 8. |
945408
|
[1] |
Flange nut
|
|
| 9. |
953067
|
[2] |
Stud
|
L=45mm
|
| 9. |
953069
|
[1] |
Stud
|
L=50mm
|
| 10. |
971095
|
[3] |
Flange nut
|
|
