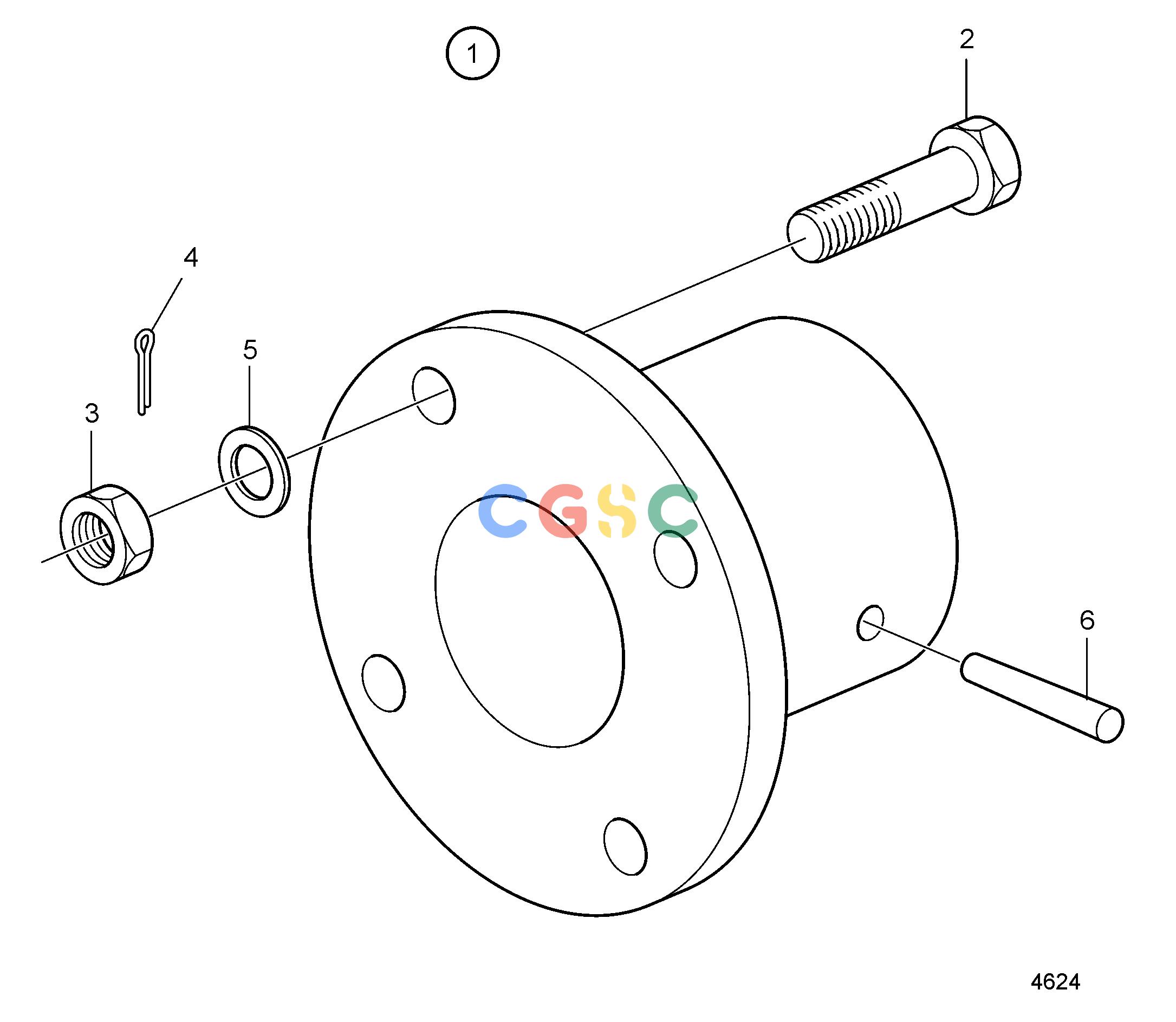

沃尔沃零件查询MD31A; TMD31B; TAMD31B; AD31BMiscellaneous EquipmentPropeller Shaft Flange: 819105EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
911 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
819105
|
[1] |
Clutch flange
|
For shaft diam. 45mm.
|
| 2. |
955692
|
[4] |
Hexagon screw
|
Use together with plate 955883 and cotter pin 907834, Early type L=32mm
|
| 2. |
955693
|
[4] |
Hexagon screw
|
Use together with lock plate 950375, Late type L=38mm
|
| 2. |
955691
|
[4] |
Hexagon screw
|
L=25mm
|
| 3. |
955883
|
[4] |
Castle nut
|
Use together with screw 955692 and cotter pin 907834, Early type
|
| 3. |
950375
|
[4] |
Lock nut
|
Use together with screw 955693, Late type
|
| 4. |
907834
|
[4] |
Split pin
|
Use together with screw 955692 and plate 955883, Early type
|
| 5. |
941909
|
[4] |
Spring washer
|
|
| 6. |
907617
|
[1] |
Taper pin
|
|
