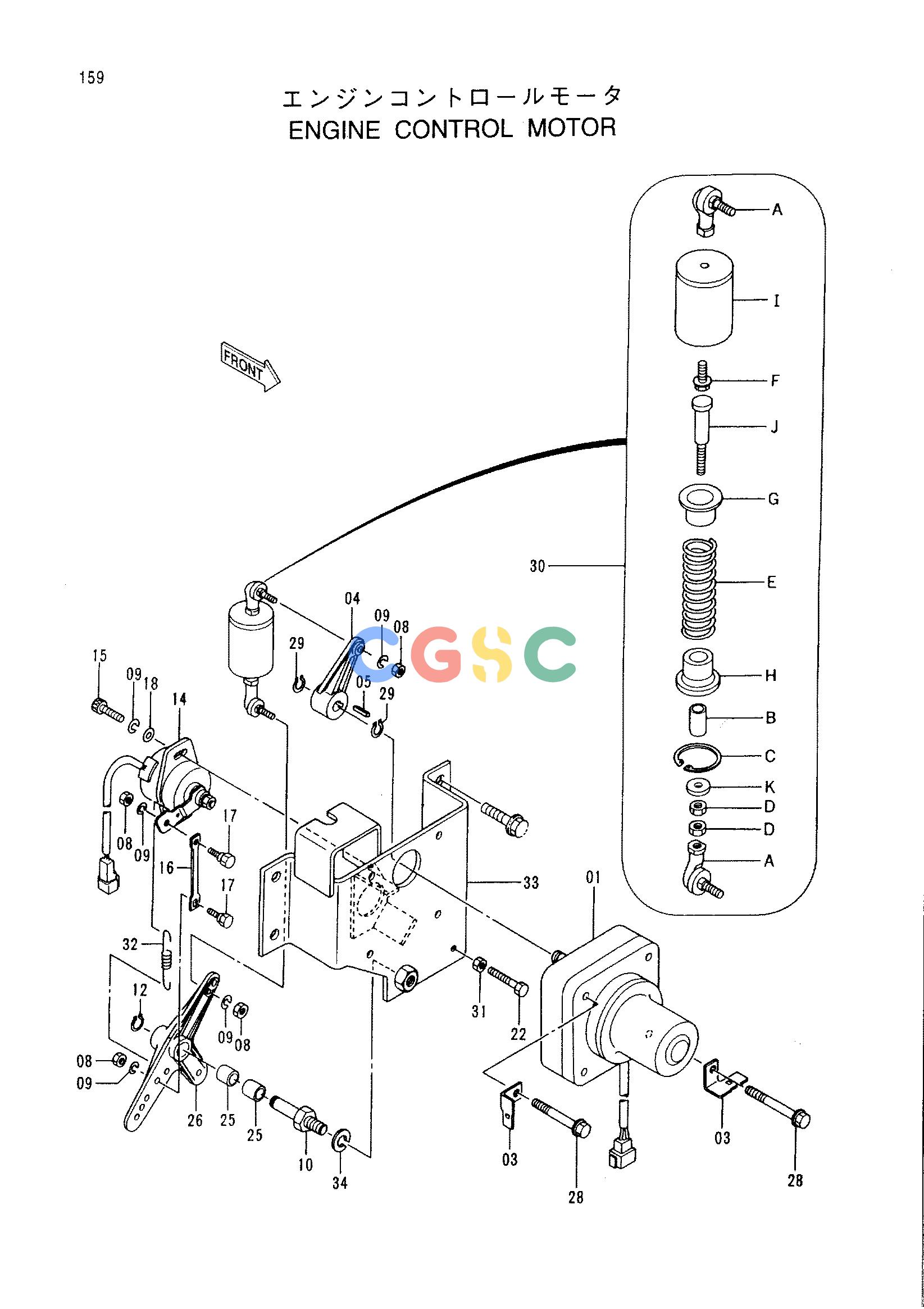

日立零件查询（CX1100）ENGINE CONTROL MOTOR Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
848 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9144473 | [1] | MOTOR ASS'Y | |
| 01. | 4257163 | [1] | MOTOR;STEP | |
| 03. | 4257159 | [2] | BRACKET | |
| 04. | 3051015 | [1] | LEVER | |
| 05. | 94-2204 | [1] | KEY | |
| 08. | M500605 | [4] | NUT | |
| 09. | A590906 | [6] | WASHER;SPRING | |
| 10. | 4257162 | [1] | PIN | |
| 12. | 991337 | [1] | RING;RETAINING | |
| 14. | 4257164 | [1] | SENSOR;ANGLE | |
| 15. | M340616 | [2] | BOLT;SOCKET | |
| 16. | 4254025 | [1] | LINK | |
| 17. | 4254023 | [2] | PIN | |
| 18. | A590106 | [2] | WASHER;PLANE | |
| 22. | 4257161 | [1] | BOLT | |
| 25. | 4260781 | [2] | BUSHING | |
| 26. | 2030310 | [1] | LEVER | |
| 28. | J011060 | [4] | BOLT;SEMS | |
| 29. | 991336 | [2] | RING;RETAINING | |
| 30. | 9144817 | [1] | SPRING ASS'Y | |
| 30A. | 4056017 | [2] | JOINT;BALL | |
| 30B. | 4261314 | [1] | BUSHING | |
| 30C. | 4064463 | [1] | RING;RETAINING | |
| 30D. | M500605 | [2] | NUT | |
| 30E. | 4258876 | [1] | SPRING | |
| 30F. | J010614 | [1] | BOLT;SEMS | |
| 30G. | 4266428 | [1] | SEAT;SPRING | |
| 30H. | 4278445 | [1] | SEAT;SPRING | |
| 30I. | 9737377 | [1] | RING | |
| 30J. | 4278473 | [1] | ROD | |
| 30K. | 4278446 | [1] | SPACER | |
| 31. | M500807 | [1] | NUT | |
| 32. | 4271909 | [1] | SPRING | |
| 33. | 7024515 | [1] | BRACKET | |
| 34. | A590914 | [1] | WASHER;SPRING | |
