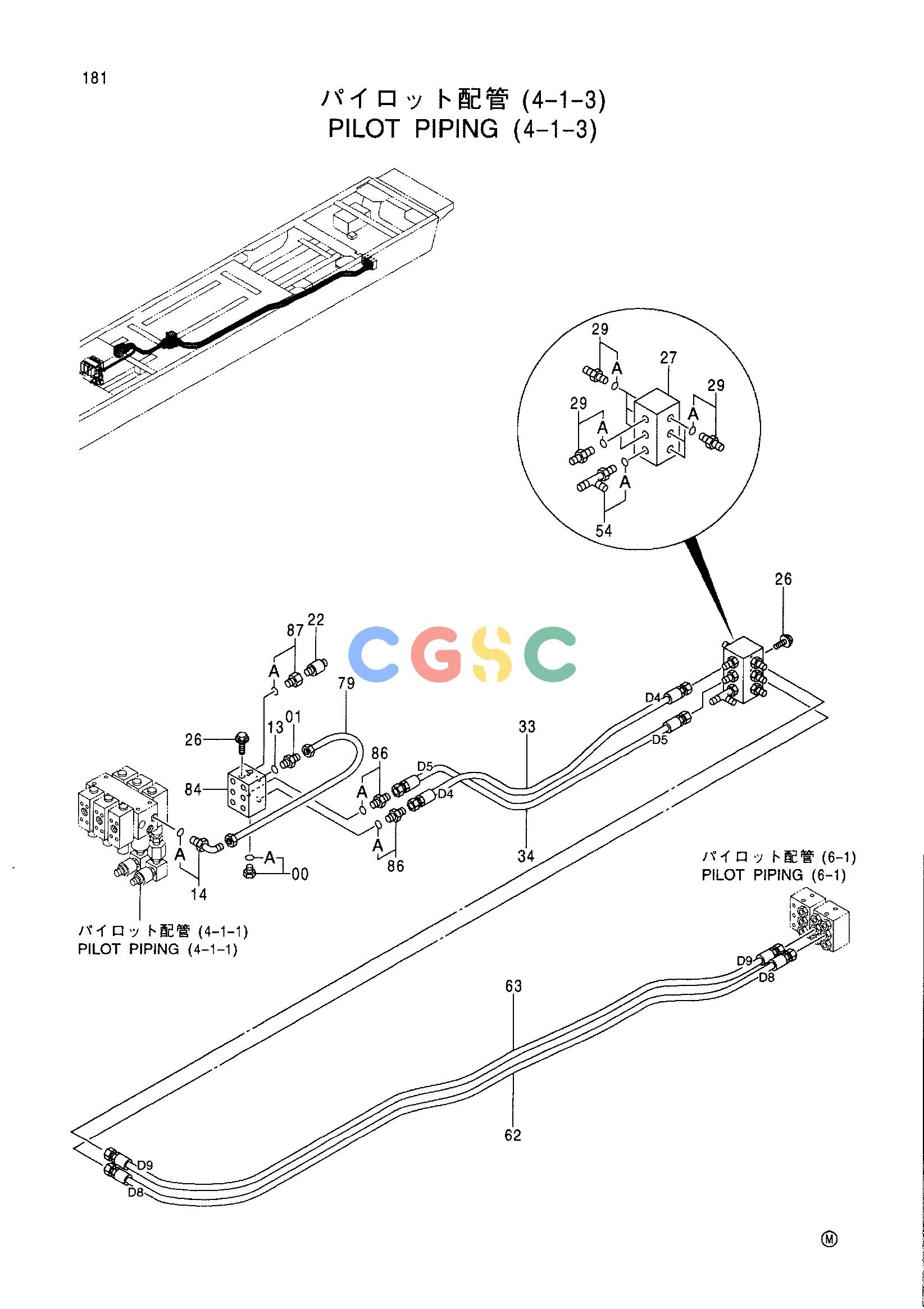

日立零件查询（CX1100）PILOT PIPING (4-1-3) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
491 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4093624 | [1] | PLUG | |
| 00A. | 957366 | [1] | O-RING | |
| 01. | 4317623 | [1] | FITTING;PIPE | |
| 13. | 957366 | [1] | O-RING | |
| 14. | 4317622 | [1] | FITTING;PIPE | |
| 14A. | 957366 | [1] | O-RING | |
| 22. | 4331359 | [1] | SWITCH;PRES. | |
| 26. | J011020 | [4] | BOLT;SEMS | |
| 27. | 3064716 | [1] | MANIFOLD | |
| 29. | 4200467 | [8] | ADAPTER;S | |
| 29A. | 957366 | [1] | O-RING | |
| 33. | 4375297 | [1] | HOSE (D4) | |
| 34. | 4375297 | [1] | HOSE (D5) | |
| 54. | 4207300 | [1] | TEE;S | |
| 54A. | 957366 | [1] | O-RING | |
| 62. | 4390223 | [1] | HOSE (D8) | |
| 63. | 4390223 | [1] | HOSE (D9) | |
| 79. | 4403179 | [1] | PIPE | |
| 84. | 4314477 | [1] | VALVE;SHUTTLE | |
| 86. | 4200467 | [2] | ADAPTER;S | |
| 86A. | 957366 | [1] | O-RING | |
| 87. | 4138898 | [1] | ADAPTER;S | |
| 87A. | 957366 | [1] | O-RING | |
