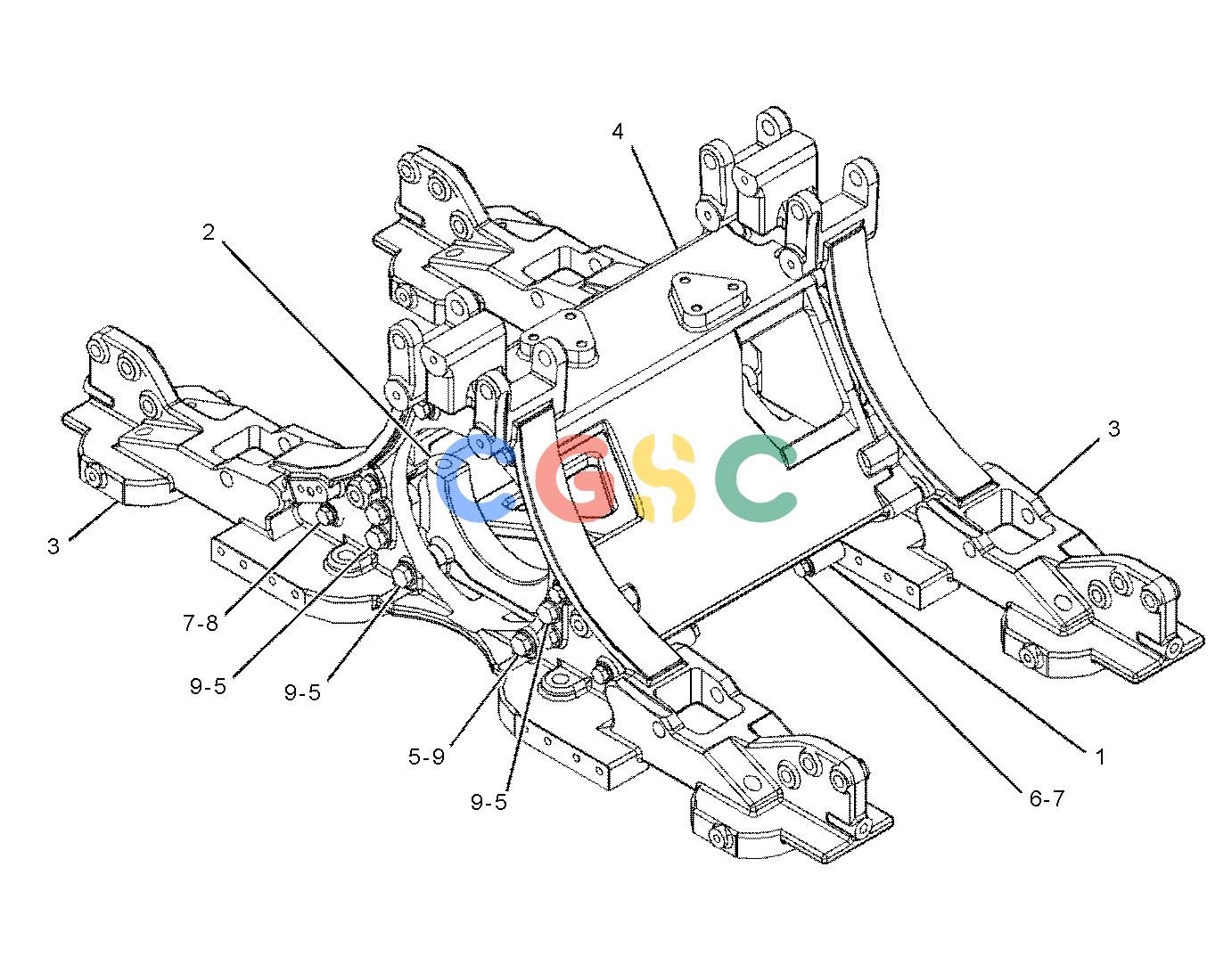

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 347-8668 | [1] | BRACKET-EXHAUST | |
| 2. | 365-4749 | [1] | BRACKET-EXHAUST | |
| 3. | 368-6894 | [2] | BRACKET-EXHAUST | |
| 4. | [1] | BRACKET AS | ||
| 5. | 276-1326M | [6] | BOLT(M10X1.5X55-MM) | |
| 6. | 305-5385M | [4] | BOLT(M8X1.25X50-MM) | |
| 7. | 311-8366 | [16] | WASHER-HARD(8.8X16X2-MM THK) | |
| 8. | 338-8453M | [12] | BOLT(M8X1.25X40-MM) | |
| 9. | 344-1199 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| M | METRIC PART | |||
