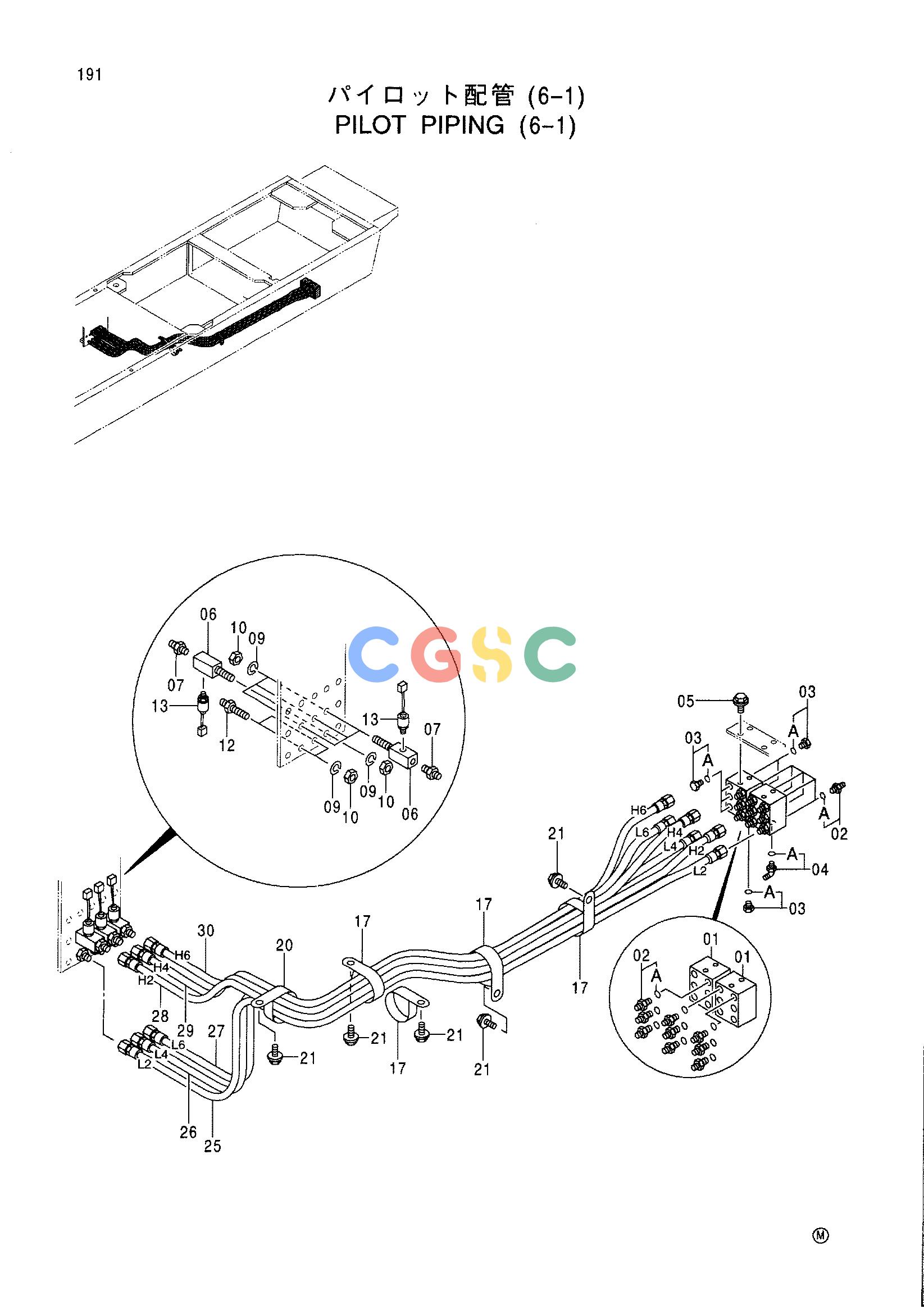

日立零件查询（CX1100）PILOT PIPING (6-1) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
782 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 4314477 | [2] | VALVE;SHUTTLE | |
| 02. | 4200467 | [15] | ADAPTER;S | |
| 02A. | 957366 | [1] | O-RING | |
| 03. | 4093624 | [6] | PLUG | |
| 03A. | 957366 | [1] | O-RING | |
| 04. | 4156434 | [1] | ELBOW;S | |
| 04A. | 957366 | [1] | O-RING | |
| 05. | J011025 | [4] | BOLT;SEMS | |
| 06. | 4338545 | [4] | REDUCER | |
| 07. | 4215648 | [4] | ADAPTER;S | |
| 09. | A590916 | [8] | WASHER;SPRING | |
| 10. | 4202531 | [8] | NUT | |
| 12. | 4317426 | [4] | ADAPTER;S | |
| 13. | 4286171 | [4] | SWITCH;PRES. | |
| 17. | 4204136 | [4] | CLIP | |
| 20. | 4190265 | [1] | CLIP | |
| 21. | J011022 | [5] | BOLT;SEMS | |
| 25. | 4357987 | [1] | HOSE (L2) | |
| 26. | 4357987 | [1] | HOSE (L4) | |
| 27. | 4357987 | [1] | HOSE (L6) | |
| 28. | 4357987 | [1] | HOSE (H2) | |
| 29. | 4357987 | [1] | HOSE (H4) | |
| 30. | 4357987 | [1] | HOSE (H6) | |
